1. Feature
test fiber fault
1mw~25mw optional
1mw for 5m

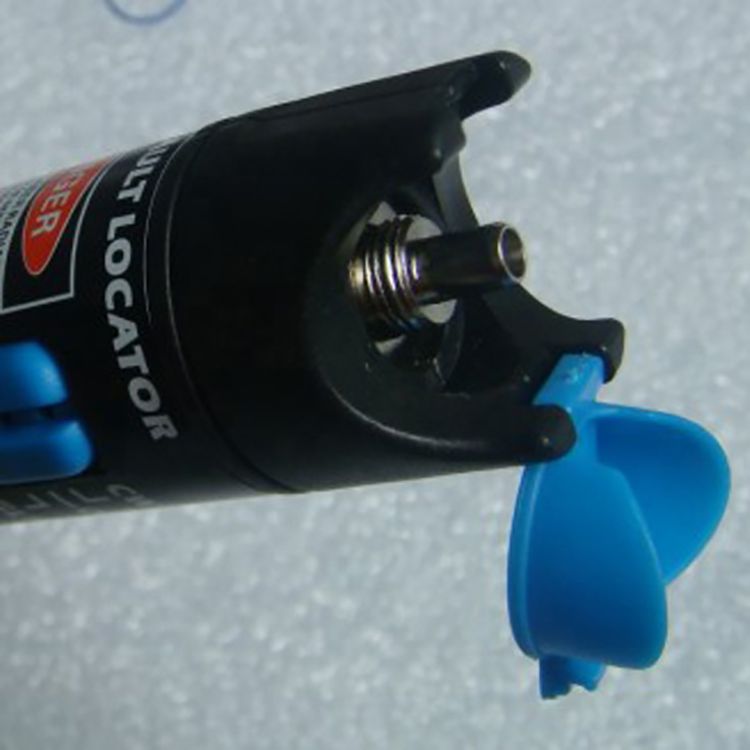

1.25mm 2.5mm adapter
2. Specification
BML205-1 | BML205-10 | BML205-15 | BML205-20 | BML205-25 | |||
Wavelength | 650nm±20nm | ||||||
Output Power | >1mW | >10mW | >15mW | >20mW | >25mW | ||
Dynamic Distance | >5 km | >10km | >13km | >15km | >17km | ||
Connector | 2.5mmor1.25mmUniversalconnector | ||||||
Storage Temperature | -20--+60°C,<90%RH | ||||||
Operating Temperature | -10--+50°C,<90%RH | ||||||
Power Supply | AA*2 | ||||||
Weight | 0.4kg | ||||||
3. Attention
Tested by FOD 1205 H650nm optical power meter
The distance is tested by G.655,singlemode,lab level fiber
Standard connector is 2.5mm UPP,1.25mm UPP will be customised and increase the cost
