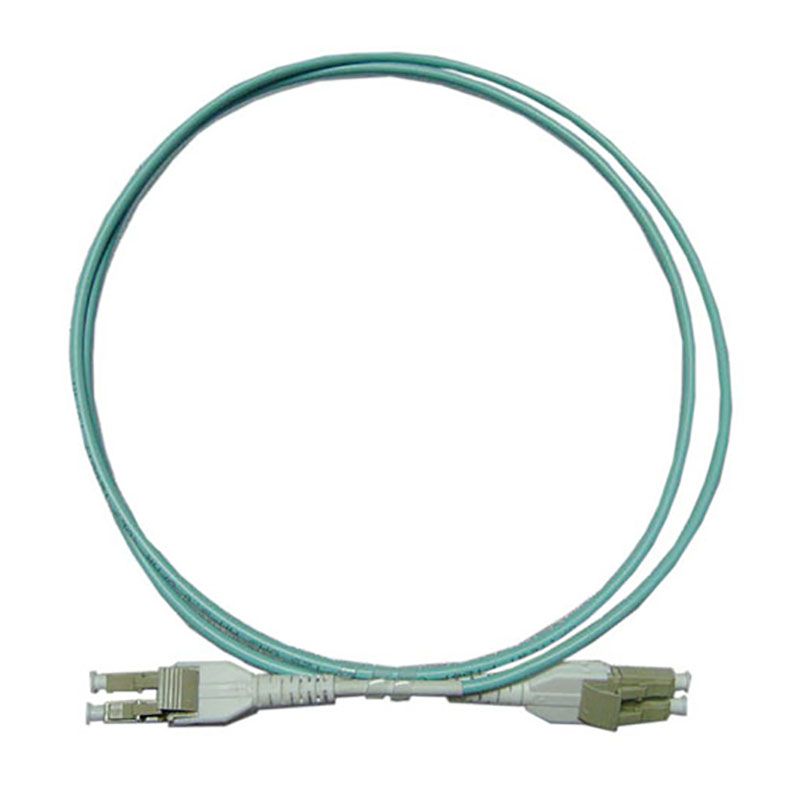

OM3 LC Uniboot Fiber Optic Patch Cord

Application:

1,CATV; Active device termination;
2,Telecommunication networks;
3,Metro;
4,Local Area Networks;
5,Data processing networks;
6,Test equipment;
7,Premise installation;
8,Wide Area Networks.

Characteristics:

1,Low insertion and back reflection loss;
2,Good exchangeability;
3,Good durability;
4,High temperature stability;
5,Standard: TelcordiaGR-326-CORE.

Specification for Multimode fiber optic patchcord

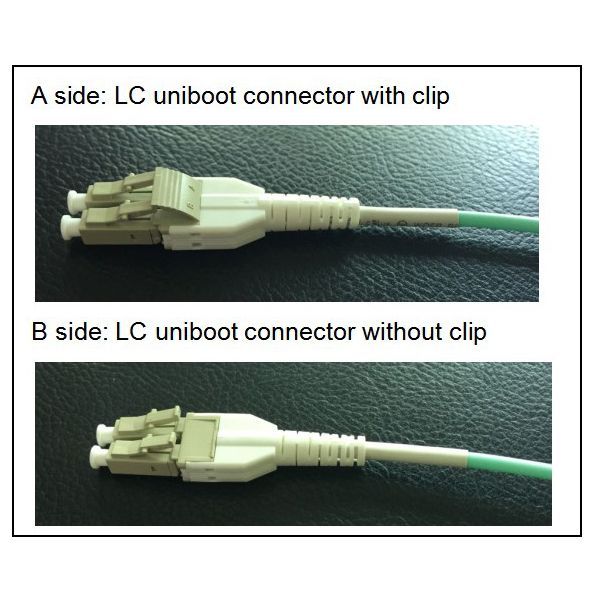

① Connector A :LC/MM uniboot connector ,beige housing,white boot,white shrinkable tube, with beige clip

② Connector B : LC/MM uniboot connector ,beige housing,white boot,white shrinkable tube, no clip

③ Cable: 2C 3mm round cable ,LSZH aqua OM3-300 fiber

**Length= Can be customized

Durability: <0.1dB typical change,1000 repeatability

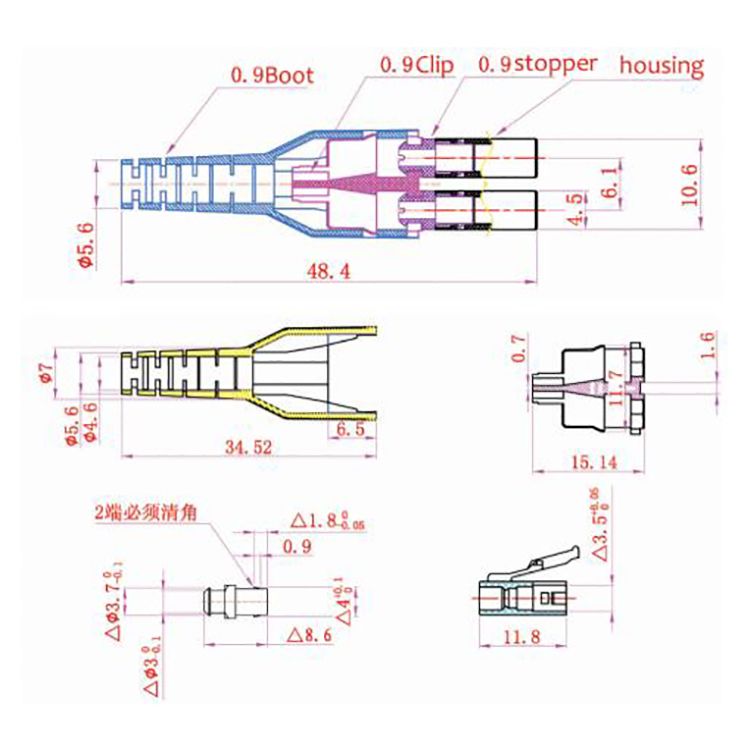

Connector specification

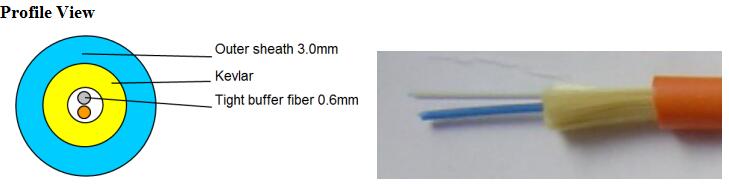

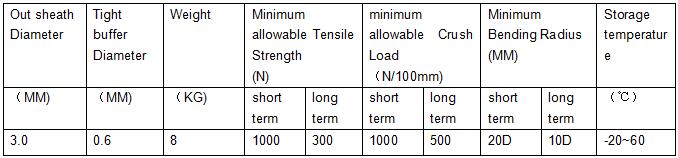

Cable specification:

LC Unitboot Patchcord  Parameter

Muliti mode fibers (OM3-300 50/125)

Test wavelength: 850/1300nm

Insertion Loss (Max): -0.3dB

Return Loss (RL): >35dB

LC Unitboot Patchcord  Application

Adopted to indoor distribution..

As pigtail of communication equipment.

Suitable for communication equipment served.

Can be installed conveniently and perated simply.

LC Unitboot Patchcord  Characteristics

Soft and easy to strip

Hight strength kevlar yarn member.

Steel armored flexble tube.increase the cable's twist resistance.

LC Unitboot Patchcord Technical Parameters
