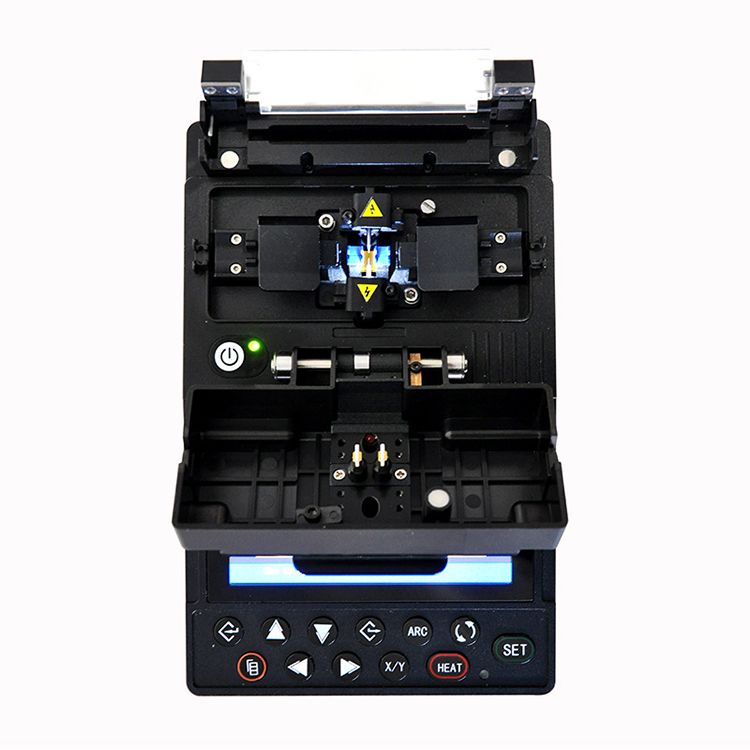

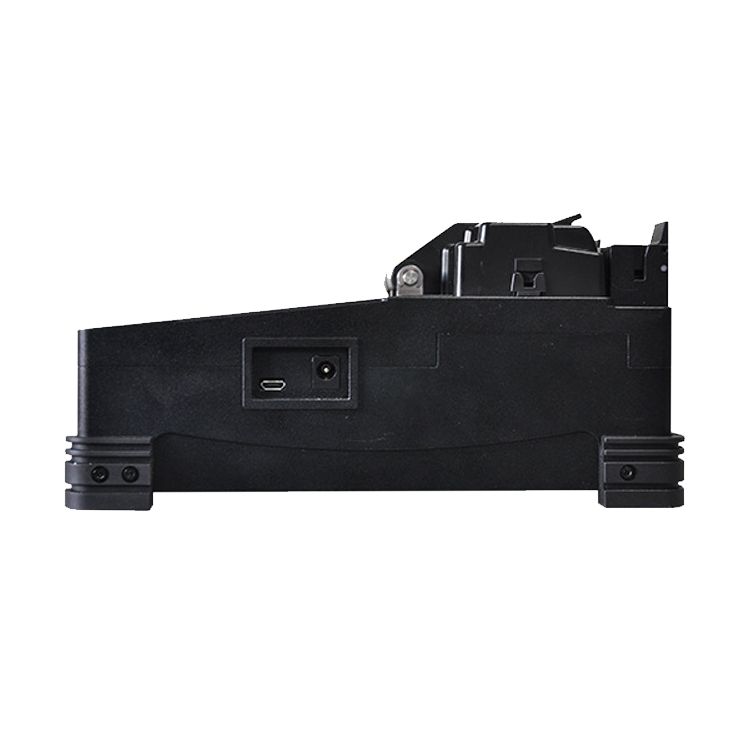

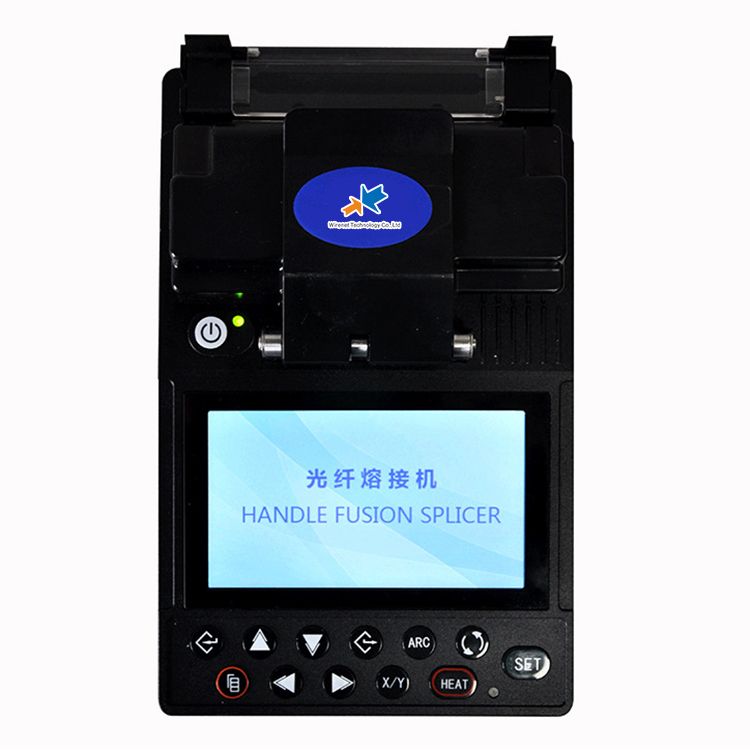

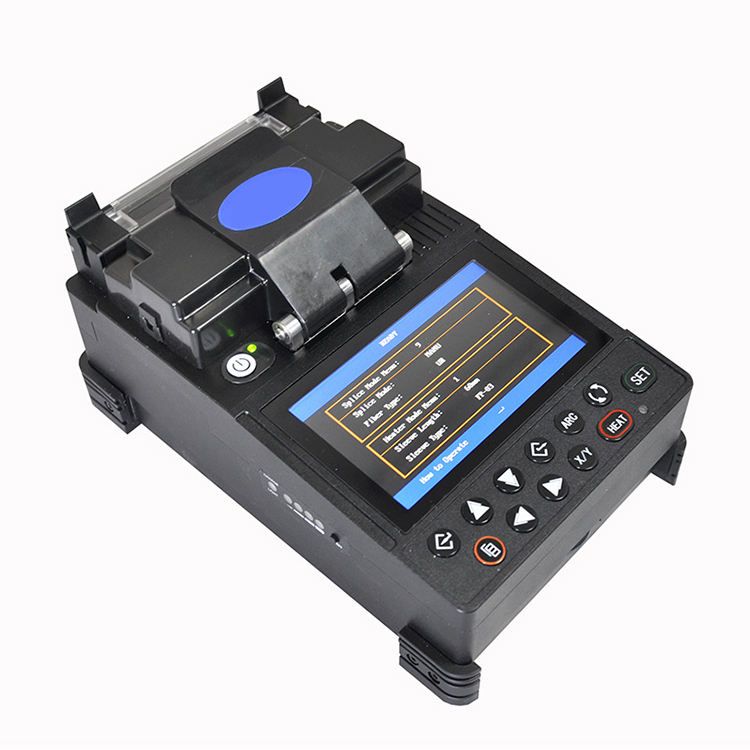

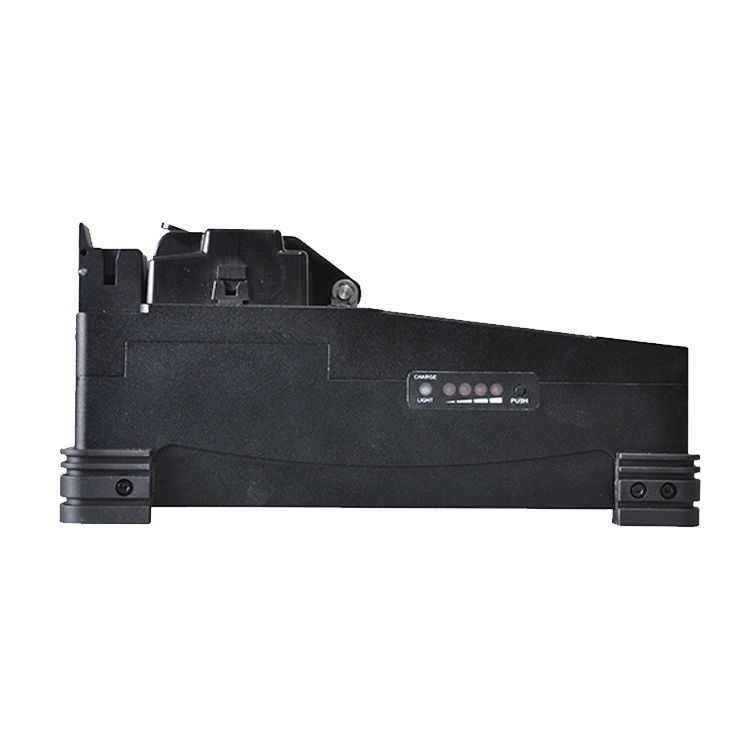

Portable Mini Type Handheld Fiber Optic Fusion Splicer

Model Number: JW4107

Splicing Type: SM,MM,DS,NZDS

Splicing Mode: Manual,Half Auto,Auto

Applicable Fiber: Cable indoor and 0.25mm,0.9mm fiber, SC connector(option)

Splicing Time: ≤9s

Heat Time: ≤30s

Cleaved Length: 8~16mm

立即咨询下一个产品

产品描述联系我们

This FTTH Fusion Splicer, with high performance price ratio, is the main product. With smart appearance, reliable quality, This FTTH Fusion Splicer is a special design for the installation, operation and maintenance of optical fiber specially design precision, durable, convenient optical fiber construction instrument. Widely used in the construction, inspection, maintenance of fiber cable.

Features

Used for FTTH and ordinary fiber project
Core to core alignment by PAS technology
8 sec splicing time and 30 sec heat time
300 X or Y view, 200 X and Y view
5 inch digital high-quality LCD screen, observe X and Y view at same time
Three in one fixture, splicing single fiber, cable indoor and pig tail
Built in large capacity lithium battery of 200 times splicing and heating
Small size and light weight, 2.1KG including battery

Splicing Type	SM, MM, DS, NZDS
Splicing Loss	0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
Return Loss	>60dB
Splicing Mode	Manual, Half Auto, Auto
Fiber Alignment	Core to Core Alignment by PAS technology
Applicable Fiber	Cable indoor and 0.25mm,0.9mm fiber, SC connector(option)
Splicing Time	≤9s
Heat Time	≤30s
Cleaved Length	8~16mm
