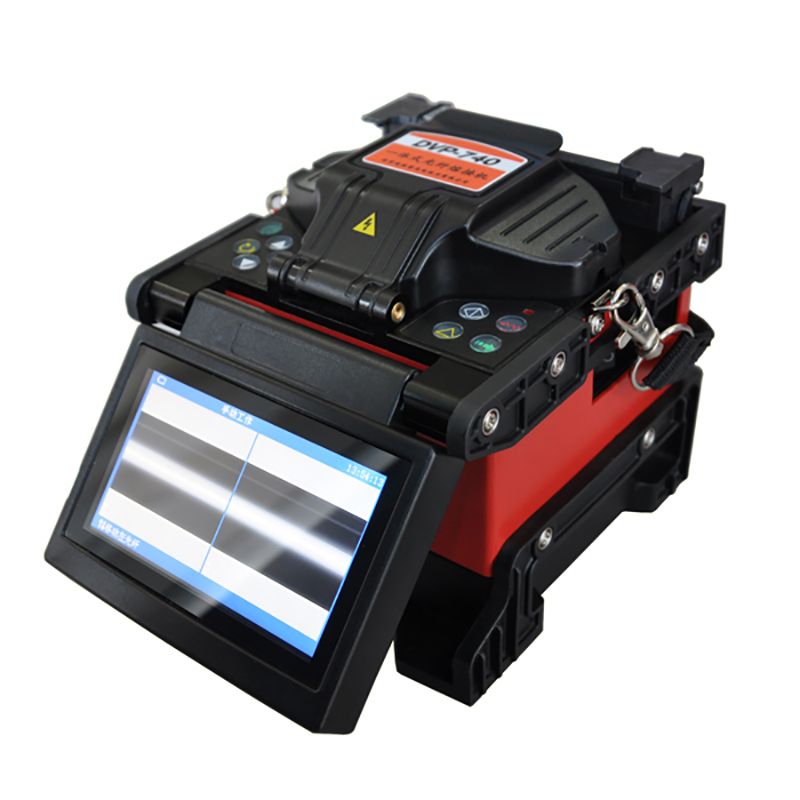

Fiber Optic Fusion Splicer DVP 740

Model Number: dvp 740 Fusion Splicer

Protection sleeve length: 20mm, 40mm, 60mm

Fiber cleaved length: 8-22mm

Tension test: 2.0N(200gf)(Standard)

Dimensions/Weight: 142(D)x122(W)x138(H)mm 1.95kg

1. It can applicable fibers such as SM/MM/DS/NZ-DS/EDF.
2. 8 Sec. splice time, 40 Sec. tube-heat time.

3. Reversible monitor with control panel on each side.
4. Compact & Light weight (3.3kg with battery).
5. SYSTEM TEST ensures the best working condition.
6. Auto check fiber end face.
7. Auto calibrate parameters.
8. Store 8000 groups of splice results, and can connect to computer
9. 8 Kind of Language options: English, Korean, Russian, Portuguese, French, Spanish, German, Chinese.
10. Large capacity internal battery ( Liion battery 12V 10,000mAh can guarantee the outdoor work. Normally when the user operate by the right way, the battery can really offer more than 200 times of continuous splices and heats when it is used in outside.)

Feature:

Compact & Light weight
Applied for Fibers ,Cables and SOC(splice-on connector)
Integrated Holder Design
Fully Automatic , Semi-automatic and Manual Operation
Shockproof, Drop resistance
Power saving function
4.3 inch Color LCD monitor
USB&DC interface

Applicable fibers	SM, MM, DS, NZ-DS(G655), EDF, Bending Loss Insensitive fiber(G657), Pigtail, Drop cable and connector.
Fiber cleaved length	8-22mm
Average splice loss	0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
Return loss	≥60dB
Tension test	2.0N(200gf)(Standard)
Protection sleeve length	20mm, 40mm, 60mm
Splice Program	5 groups of preset programs, 75 group of manual setting
Language	English, Korean, Russian, Portuguese, French, Spanish, German, Chinese.
Environment conditions	-25~+50℃ (operation temperature), 0~95%RH (humidity), 0~5000m (altitude)
Storage environment	-40~ +80℃ (temperature) , 0~95%RH (humidity)
Power supply	AC adaptor: 85~260V input voltage Internal battery: 12V, 6Ah, up to 120 times of continuous splice and heat
Dimensions/Weight	142(D)×122(W)×138(H)mm/1.95kg

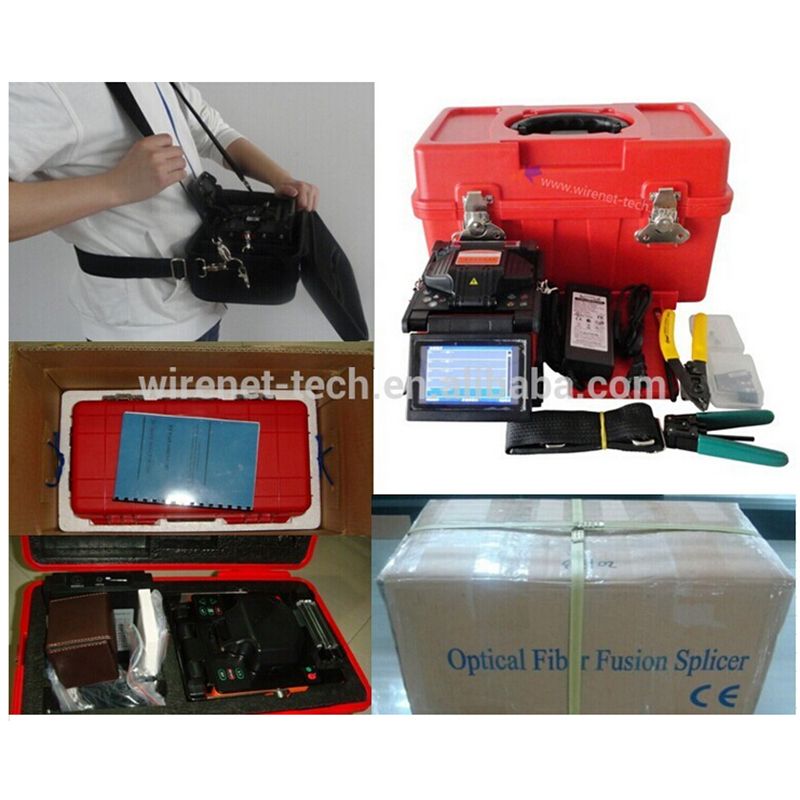

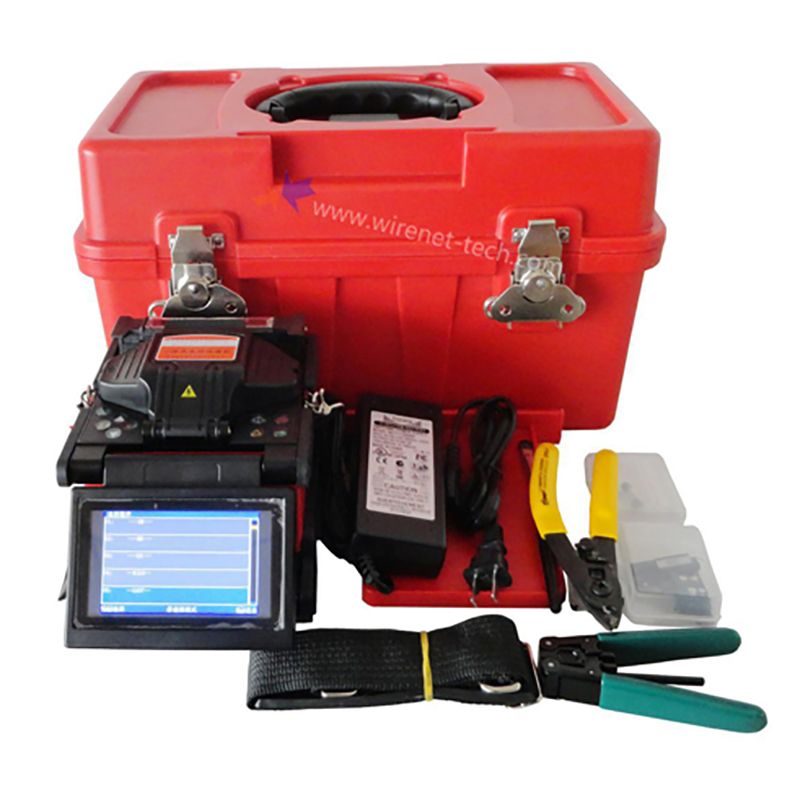

Standard Package:

Main body	Internal battery	charger	Spare Electrodes	Cooling tray	Manual instruction
Main body	Cary case	Fiber cleaver	Fiber stripper	AC adapter	AC power cord
