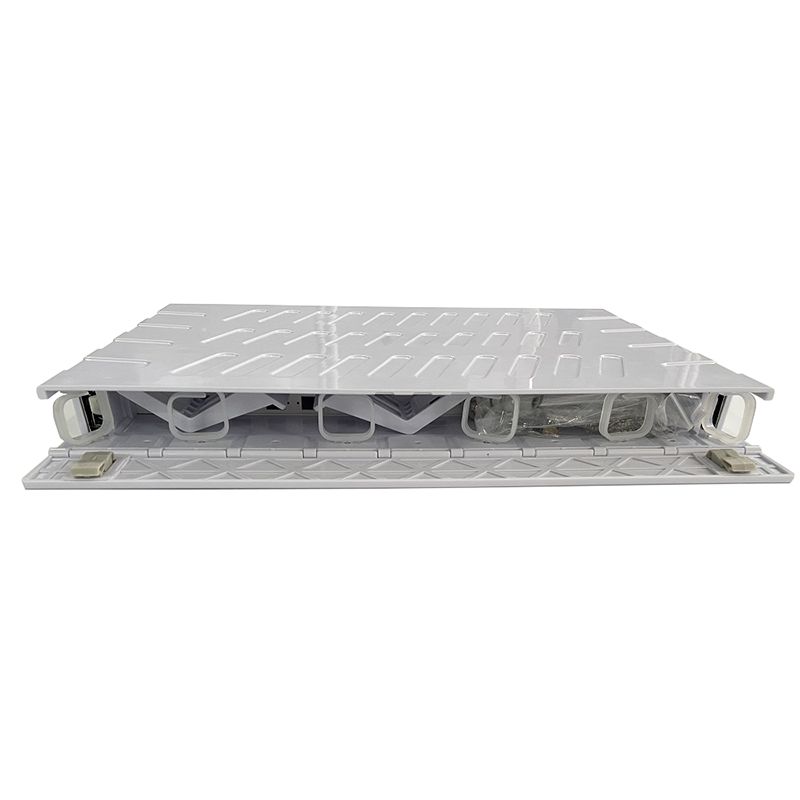

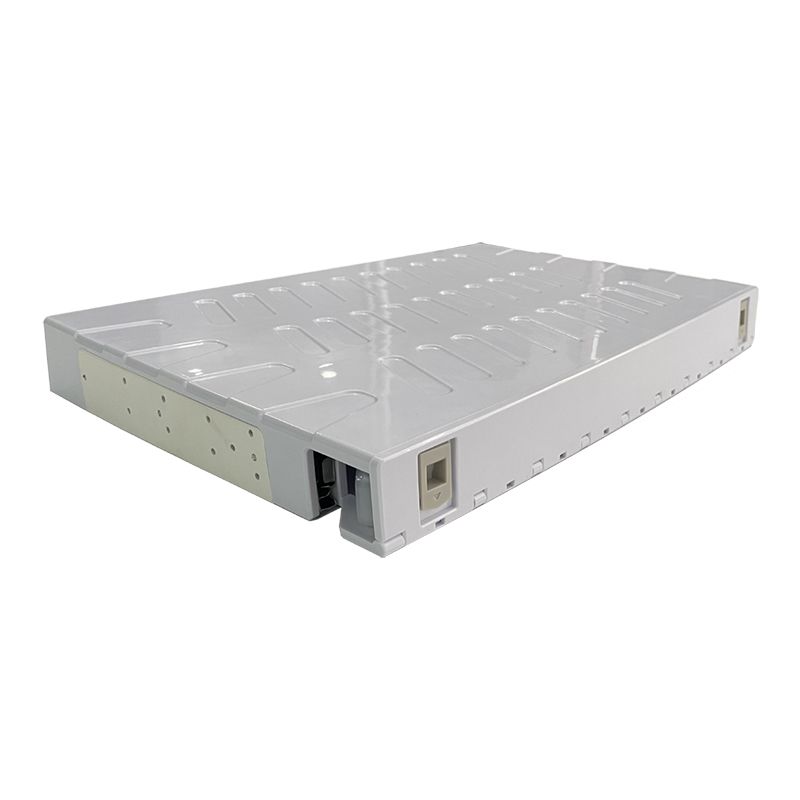

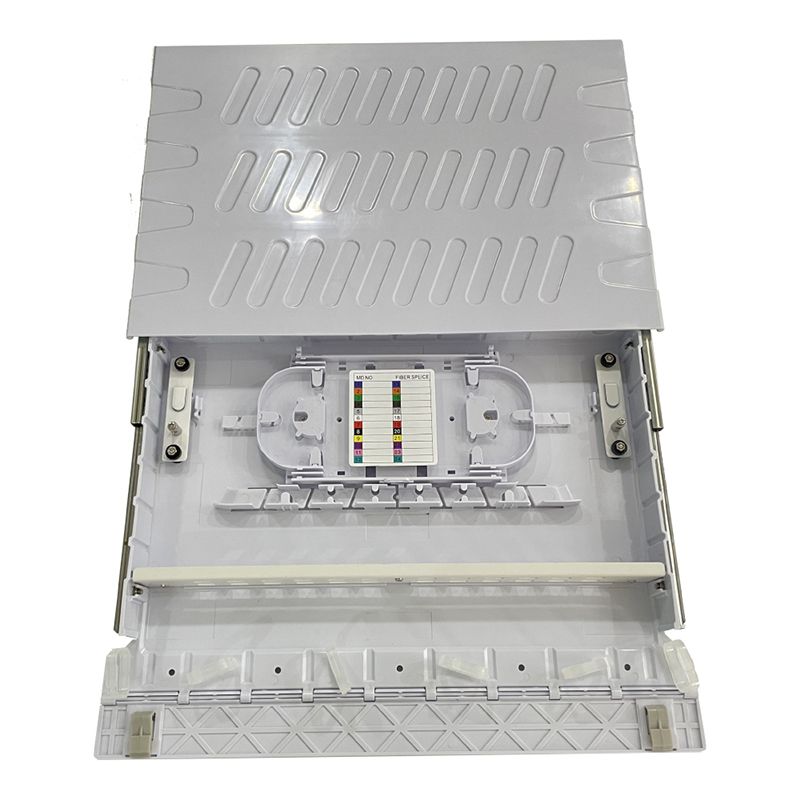

36 Port Rack mount Drawer type Optical Fiber Patch Panel

36 Port Rack mount Drawer type Optical Fiber Patch Panel

Model Number: WTODF-DPRS36SC1

Material: Plastic

Adapter: Simplx&Duplex SC,LC,FC,ST Adapters

Plastic:SC simplex adaptor/SC duplex adaptor /LC duplex adaptor

Maximum number of cores24corel SC S / 48core SC D /96corel LCQ

Splice Tray24corel*1pc


分享:

产品描述 联系我们

    Drawer type patch panel Material is High quality ABS, brackets is cold rolled steel,this panel mainly installed in fiber optic cabinet and rack.19inch, 1U, with plastic splice tray inside, suitable for pigtail, ribbon and bunch cable distribution. It provides an economical way of splicing fiber cables in communication room or existing equipment racks where space is constrained. 19-inch rack mount for ST, SC, LC, MTRJ, FC adapters.


Features

* Max capacity is 36cores ( SC Simplex port adapters) * Special sliding design, operation easy and convenient * Variety of coled-rolled steel adapter plate for choice based on different demands * Material is ABS plastic, light weight.Black or white optional.

Application:
Telecommunications subscriber loop Fiber to the home (FTTH) LAN/WAN CATV

Specification:
Model
WTODF-DPRS36SC1
Height
44mm
Width
435(538.1)mm
Depth
300mm
material
Plastic
IP rating
IP20
Suitable for adapter type
SC simplex adaptor/SC duplex adaptor /LC duplex adaptor
Maximum number of cores
24corel SC S / 48core SC D /96corel LCQ
Color
Black or Gray
Materials compliant to
Rohs
Splice Tray
24corel*1pc
Weight
2.2kg
