Model Number: WTODF-ROWO24
Port: 24 ports
Material: Cold-rolling steel
Adapter: Simplx&Duplex SC,LC,FC,ST Adapters
Atmosphere pressure: 70-106Kpa
Environmental temperature: -25 - 55°C
Relative humidity: ≤85%((when the temperature is below 30°C))
Insulating resistance: ≥2x104 MΩ/500VDC
Voltage-resistance strength: Under the effect of 15kv/DC/1min, non-puncture, and no arc-over

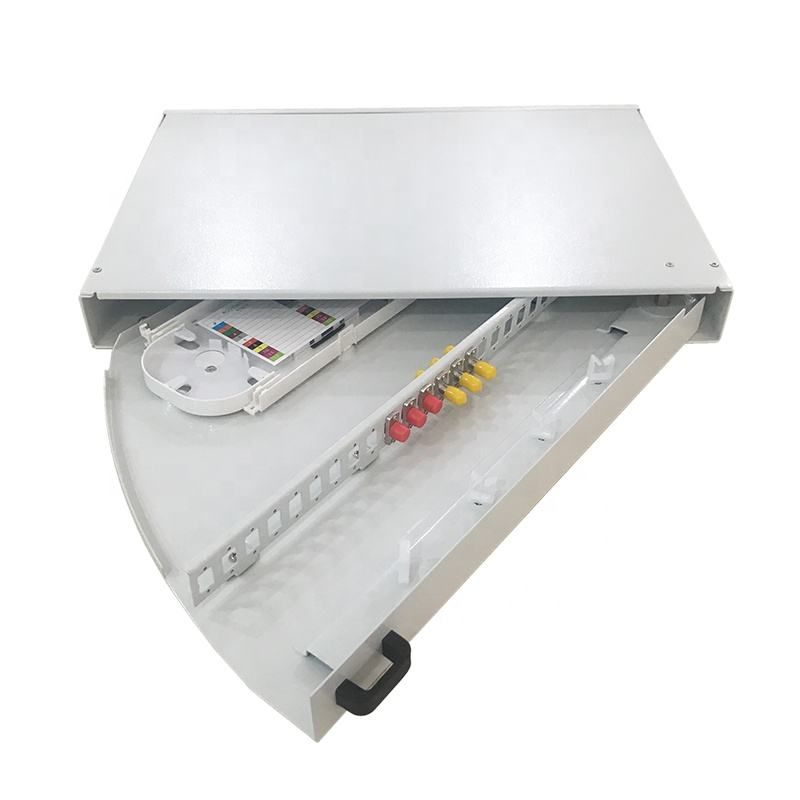

It is made of cold roll steel, splice tray can be rotated out. It could be pre-installed with various kinds of fiber optic adapters and pigtails. It is ideal for indoor fiber optic cables connection storage, distribution and management.
Features:
Standard size, can be rackmount and wallmount
Splice tray inside changeable
Can be used in 19'', 23'' standard distribution frame
Suitable for ribbon and single fiber
Various panel plate to fit different adapter interface
Front mark on the plate is easy for identification and operation
12C, 24C, 36C(LC), 48C(LC), optional, with or without fiber optic pigtails and adapters
Application:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
Environmental temperature: | -25 - 55°C |
Relative humidity: | <85%(when the temperature is below 30°C) |
Atmosphere pressure: | 70~106Kpa |
Insulating resistance: | >2×104 MΩ/500VDC |
Voltage-resistance strength: | Under the effect of 15kv/DC/1min, non-puncture, and no arc-over. |
