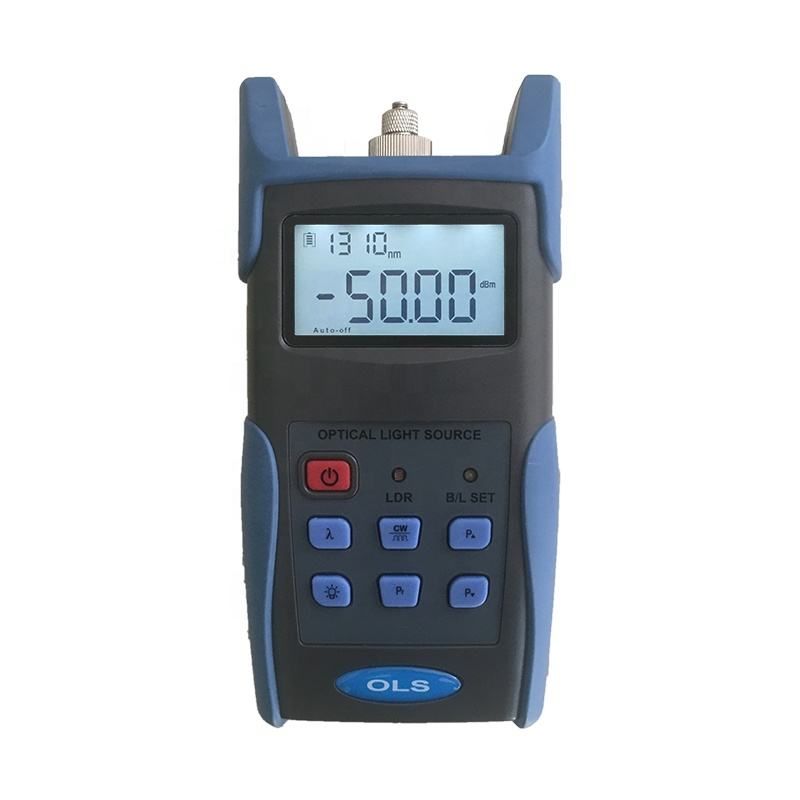

Model Number: WT3116
Operating wavelength: 1310/1550;1310/1490/1550/1625 nm
Applicable fiber: SM,MM
Laser type: FP-LD(others specify on requests)
Output Power: -5~-12dBm
Fiber Port: 1000

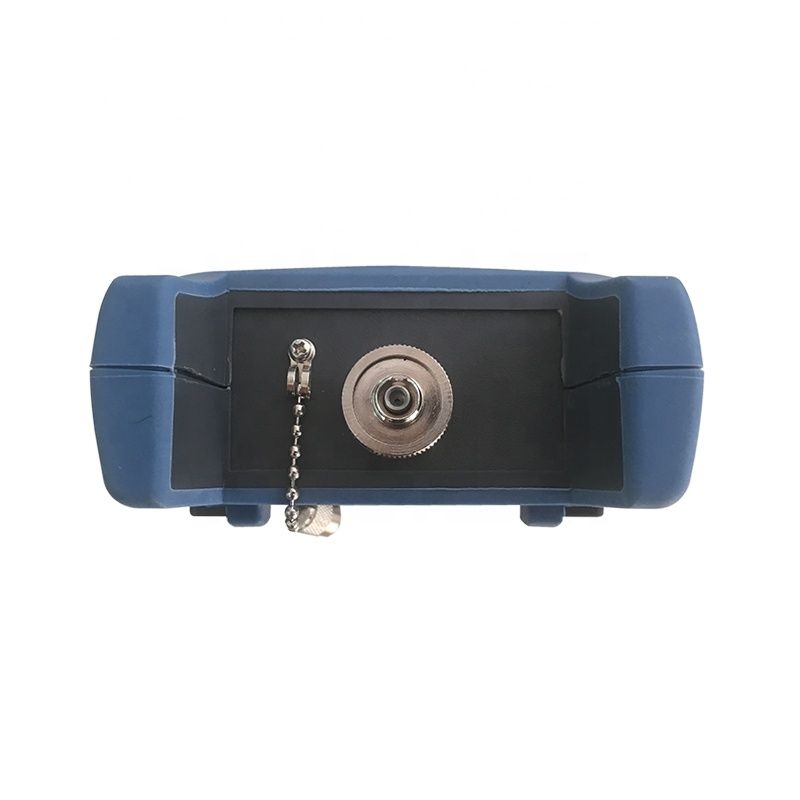

Communication Port: FC/PC

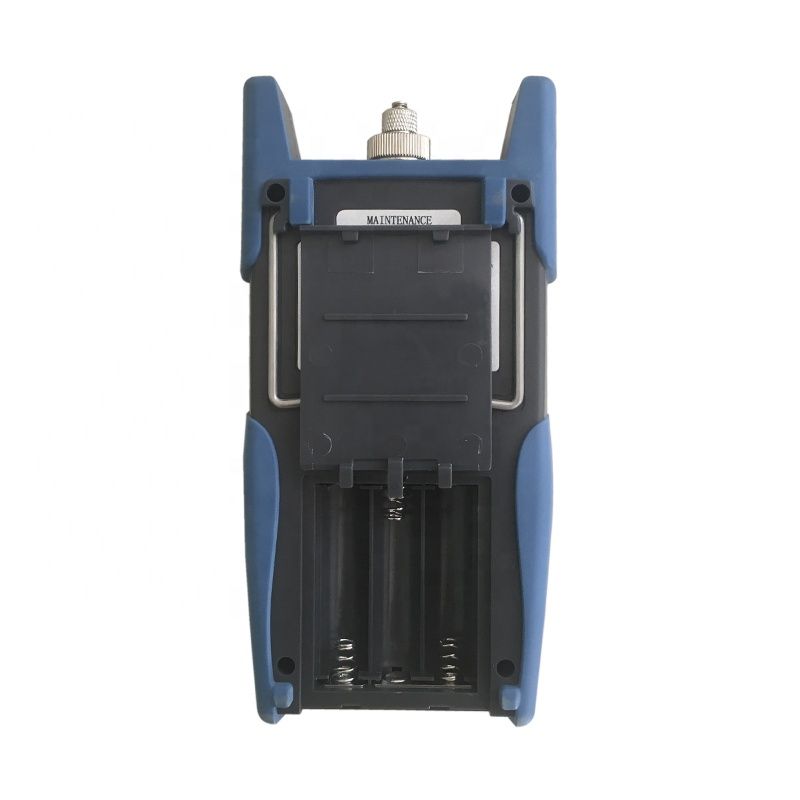

Alkaline battery: 3*AA,1.5V
Power Supply Adaptor: 8.4V
Dimension: 23.5*16*8cm
Weight: 0.75kg
Features
Wave ID information can be transmitted when used with WT3116 Optical Power Meter.
Tone generation, 270HZ,330HZ,1KHZ,2KHZ
Output power can be adjustable
Output power value is shown on LCD display
Intelligent backlight control (light intensity can be adjusted properly according to ambient light, which greatly reduced power consumption)
AA alkaline and AC adapter for power supply
Low battery indication
Application:
Maintenance Telecom
Maintenance CATV
Test Lab of Fiber Optic
Optical fiber sensors
Model | WT3116 |
Operating wavelength(nm) | 1310/1550;1310/1490/1550/1625(others specify on requests) |
Applicable fiber | SM,MM |
Laser type | FP-LD(others specify on requests) |
Output Power(dBm) | -5~-12dBm (can be adjustable) |
Adjustable step size(dBm) | <0.5 |
Stability(dB,30min,20℃) | 0.15 |
Modulation(Hz) | CW, 270,330,1K,2K |
Fiber Port | FC/PC |
Alkaline Battery | 3*AA,1.5V |
Power Supply Adaptor(V) | 8.4 |
Battery Operating time(h) | 45 |
Operation Temperature(℃) | -10~+60 |
Storage Temperature(℃) | -25~+70 |
Dimension | 23.5*16*8cm |
