1310nm 1550nm 1625nm Portable Handheld Adjustable High Stabilization Power Meter

1310nm 1550nm 1625nm Portable Handheld Adjustable High Stabilization Power Meter

Model Number: WT3116-B

Operating wavelength: 1310/1550/1625 nm

Applicable fiber: SM

Laser type: FP-LD(others specify on requests)

Output Power: -5~-12dBm

Fiber Port: FC/PC

Storage Temperature(℃): -25~+70

Alkaline battery: 3*AA,1.5V

Power Supply Adaptor: 8.4V

Size: 24.5*17*9cm

Weight: 0.78kg

分享:

产品描述 联系我们

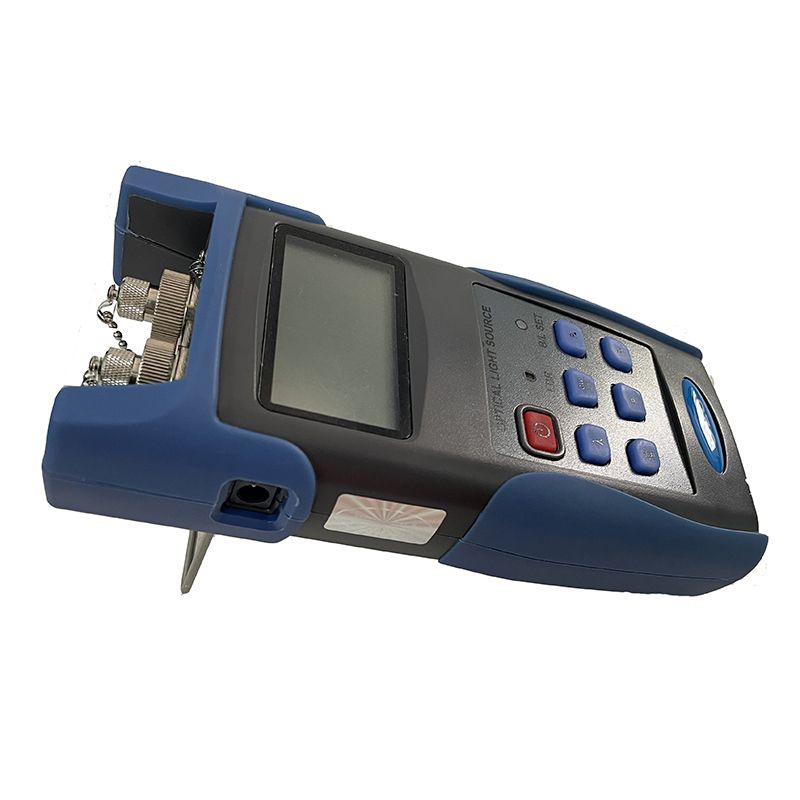

   This Handheld Adjustable Light Source is newly designed fiber optic tester, it aims at fiber network installation, fiber network engineering acceptance and fiber network maintenance. Combined usage with handheld optical power meter, it offers a quick and accurate testing solution on both SM and MM fibers. This Handheld Adjustable Light Source provides 1 to 4 wavelengths and output power can be adjustable on customer requests.Also the Handheld Adjustable Light Source features good appearance, good touch feeling and considerate humanity design


Features

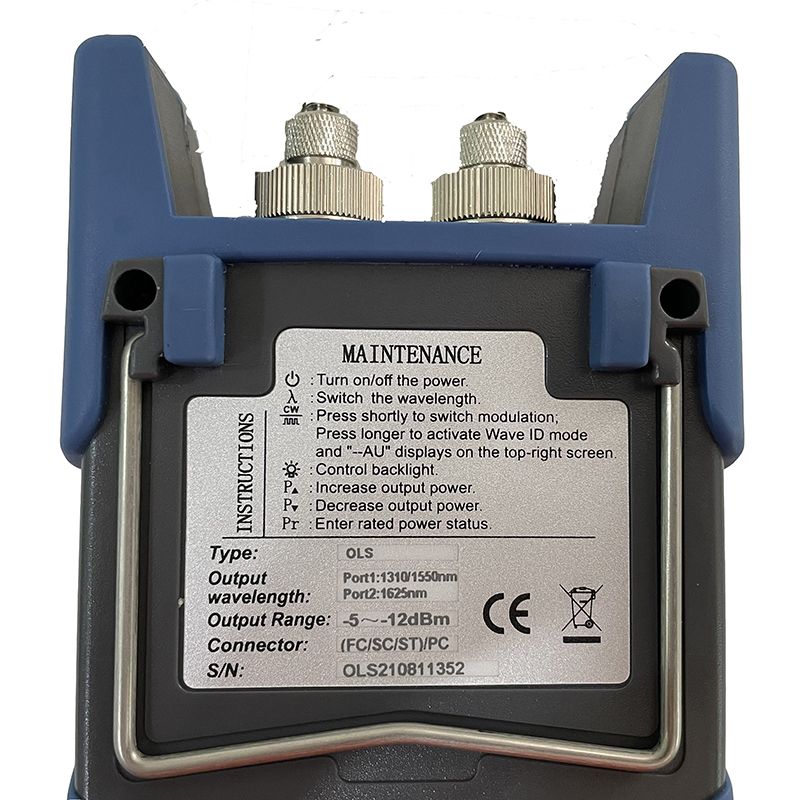

* Wave ID information can betransmitted when used with handheld Optical Power Meter.

* Tonegeneration , 270HZ , 330HZ , 1KHZ ,2KHZ .

* Output power can be adjustable Output power value is shown on LCD display.

*  Intelligent backlight control ( light    intensitycanbe adjusted properly according to ambient light, which greatly reduced power consumption) .

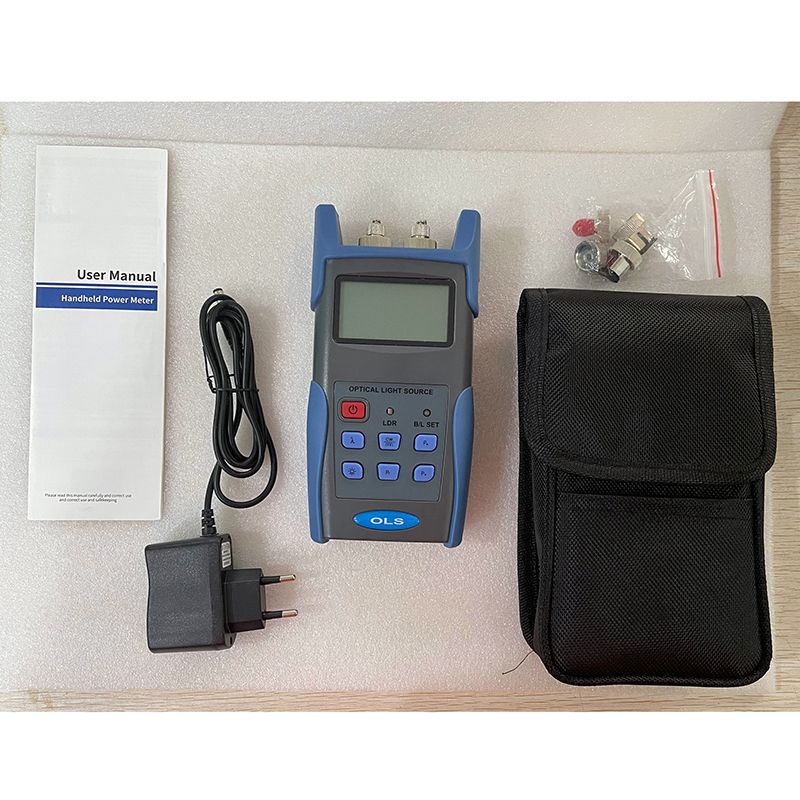

* AA alkaline and AC adapter for power supply ,Low battery indication.


Operating wavelength(nm)
1310/1550;1310/1490/1550/1625(others specify on requests)
Applicable fiber
SM,MM
Laser type
FP-LD(others specify on requests)
Output Power(dBm)
-5~-12dBm (can be adjustable)
Adjustable step size(dBm)
<0.5
Stability(dB,30min,20℃)
0.15
Modulation(Hz)
CW, 270,330,1K,2K
Fiber Port
FC/PC
Alkaline Battery
3*AA,1.5V
Power Supply Adaptor(V)
8.4
Battery Operating time(h)
45
Operation Temperature(℃)
-10~+60
Storage Temperature(℃)
-25~+70
Outline size(mm)/weight
180*90*45(250g)
