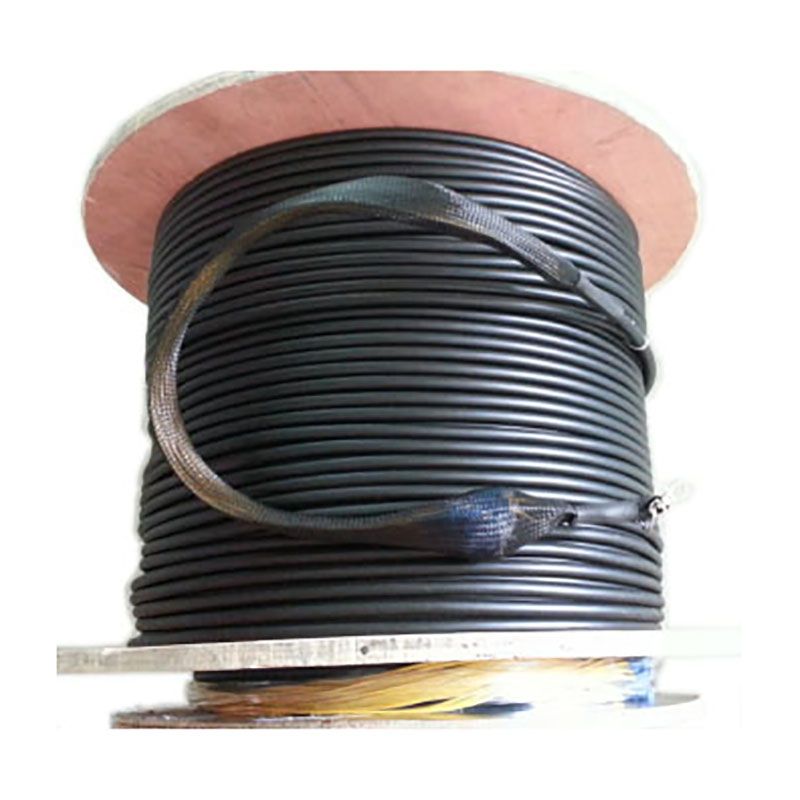

Outdoor ADSS Patch Cord with LC FC ST SC Connector

Application:

1, Outdoor usage
2, Aerial

Characteristics:

1, Low insertion Loss
2, Customized

Specification

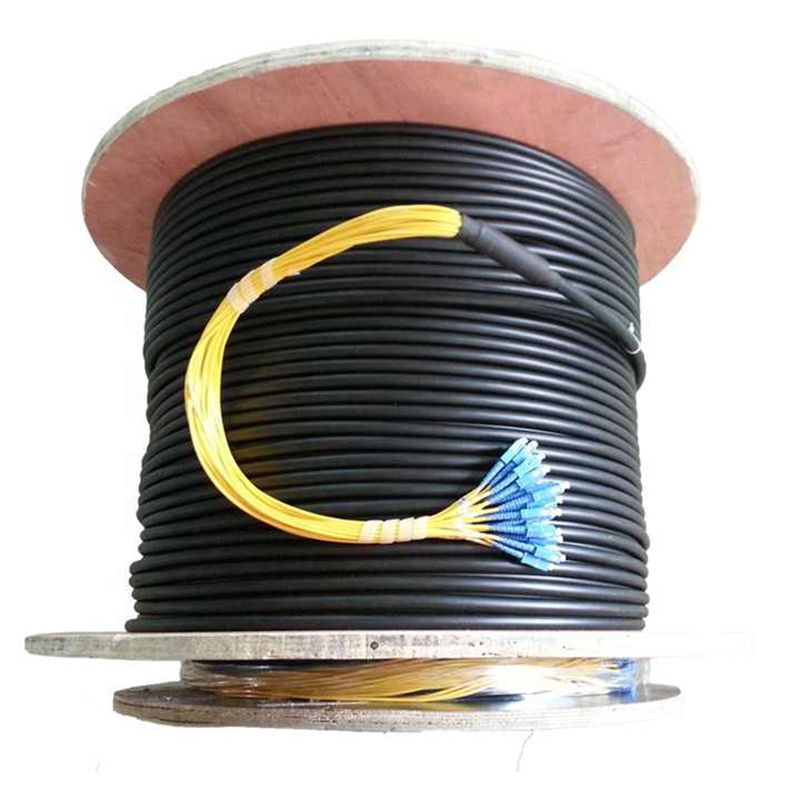

Outdoor ADSS patchcord ,SC/UPC to SC/UPC ,24fiber,PE jacket,Fan out in both side,

* Fan out diameter:3.0mm PVC yellow

* Fan out length: 24 "（in step length）

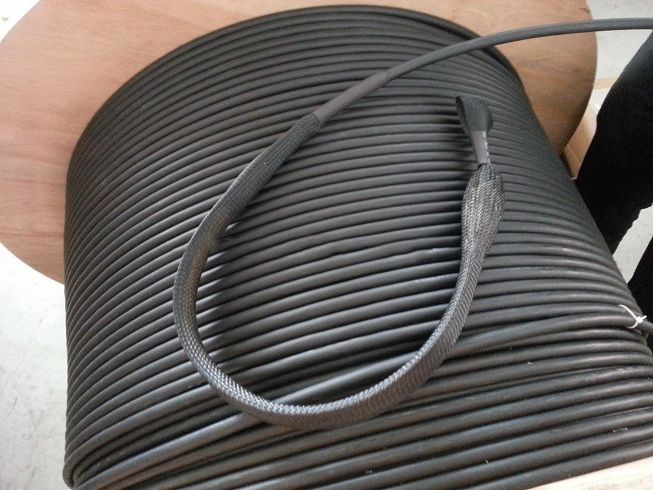

* Fan out with Pulling Eye in both side.

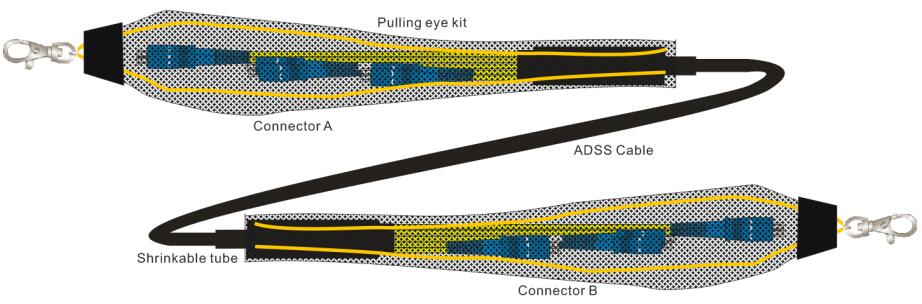

Multi fiber patch cord drawing

① Connector A: SC/UPC SM 3.0mm connnecor  with Pulling eye

② Connector B: SC/UPC SM 3.0mm connnecor  with Pulling eye

③ ADSS 24C SMF28 e+ fiber optic cable (span 800 ft)

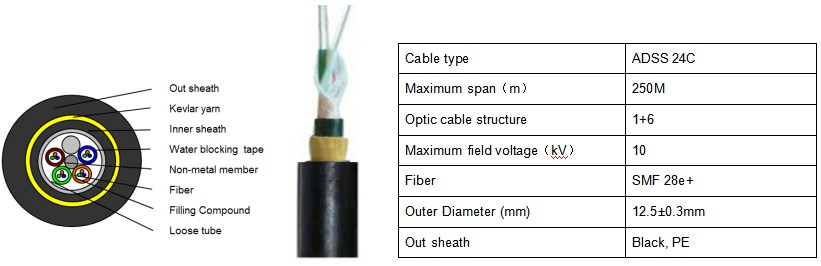

ADSS Cable Structure

Connector insertion loss and return loss

*Measurement

Wavelength(MM=850/1300nm)

Optical specil          multimode

Insertion Loose       <0.3dB

Return loose           >35dB

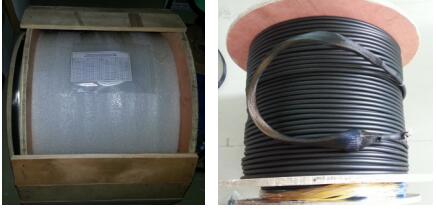

Package

80*80*60cm/reel  about 100kg/pc

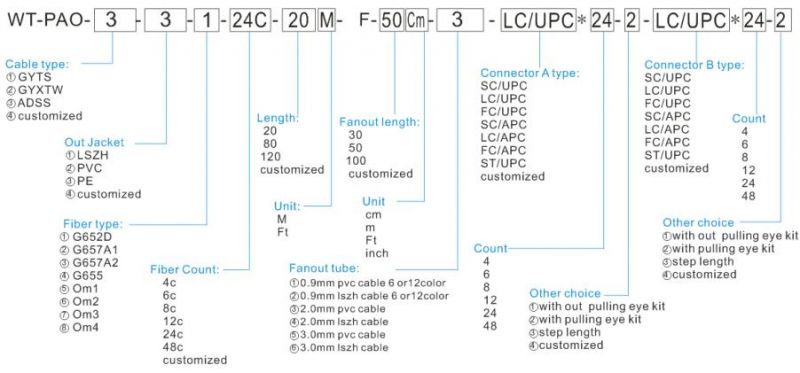

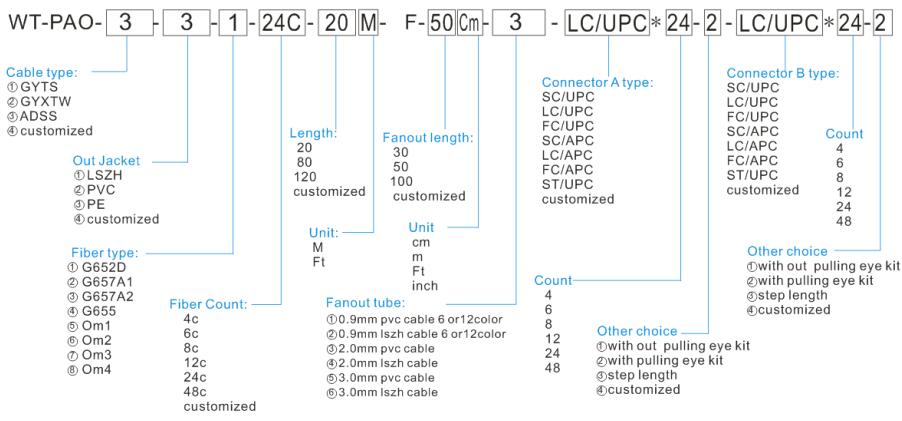

Ordering Information
