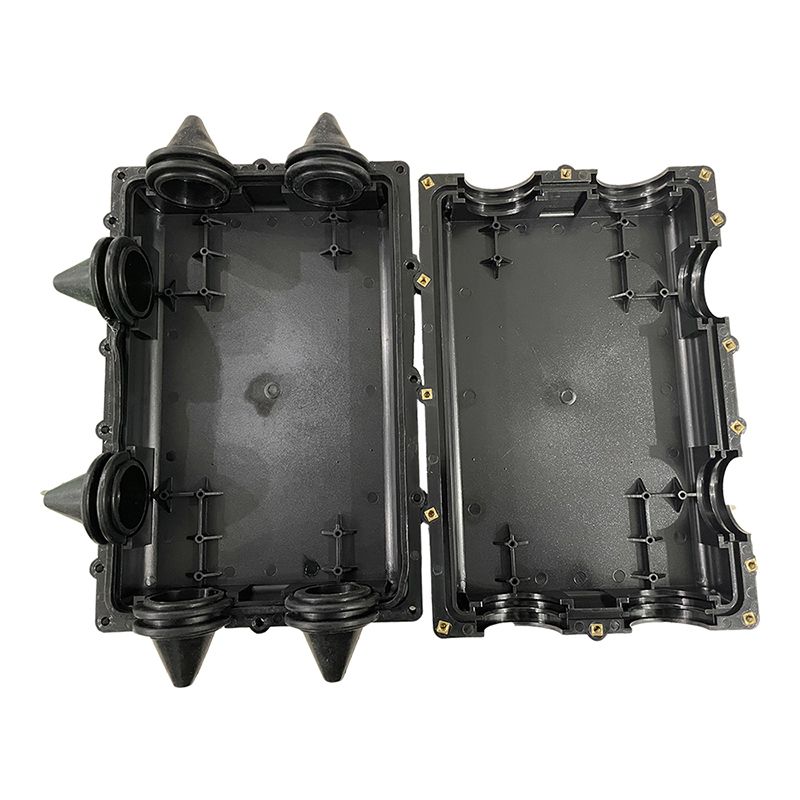

The Tube Distribution Closure can be Direct Buried into a waiting trench (following FCST installation procedures on back-fill) or
placed inside a manhole or handhole.
Features
-Can be re-entered.
- Max. 43.5mm for duct.
- Lightweight - 1.2Kg. (2.6lb)
- IP67 rated. (equivalent to NEMA 6)
- Manifold option allows 6 x 1DB to be.

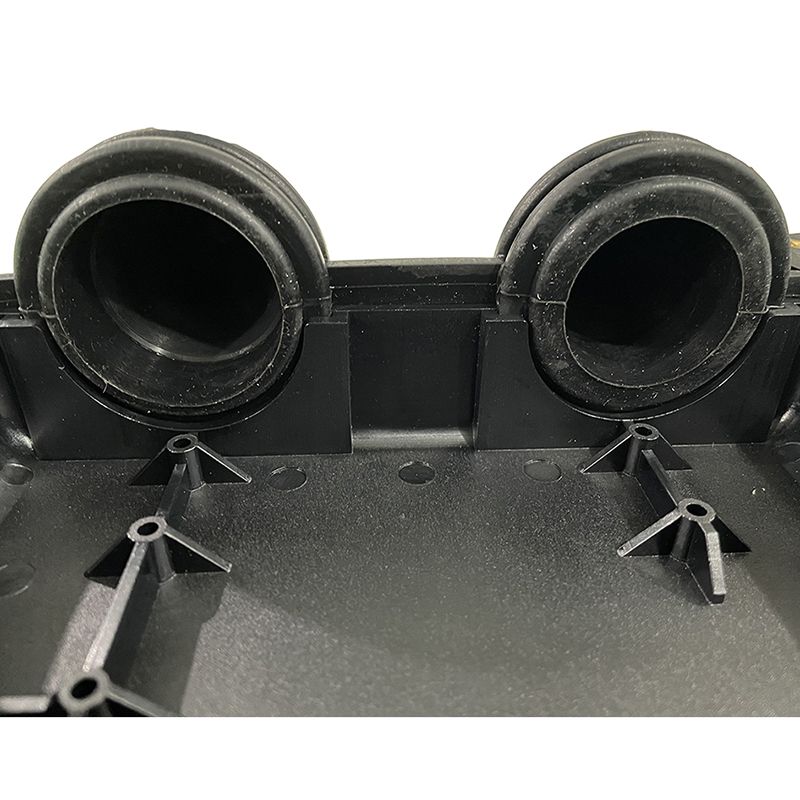

- One piece grommet and seal arrangement.
- Straight through, H and Y configurations possible.

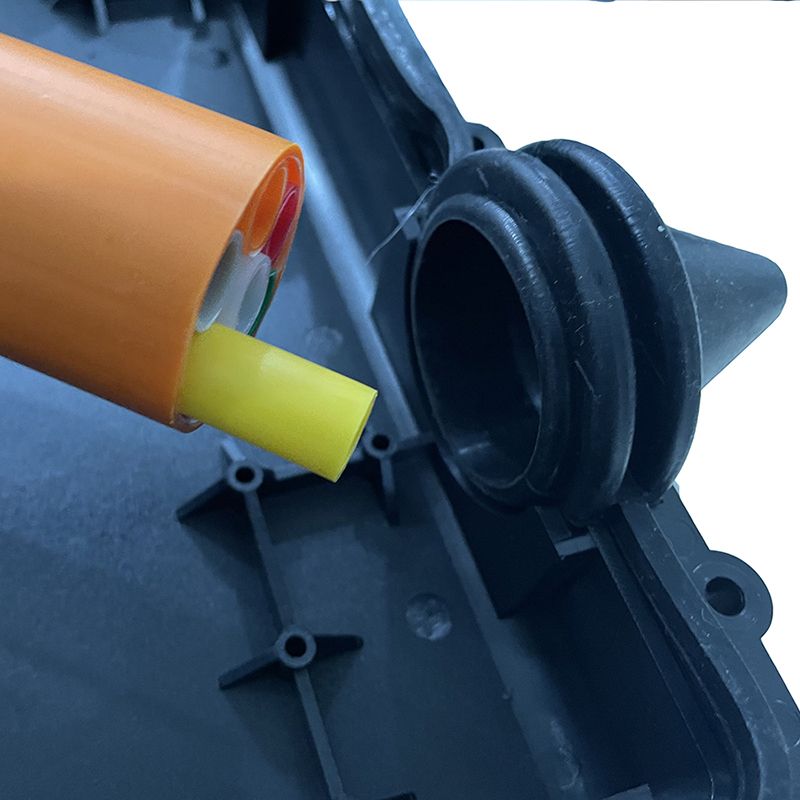

- Can be retro-fitted to existing tube bundles/sub ducts.

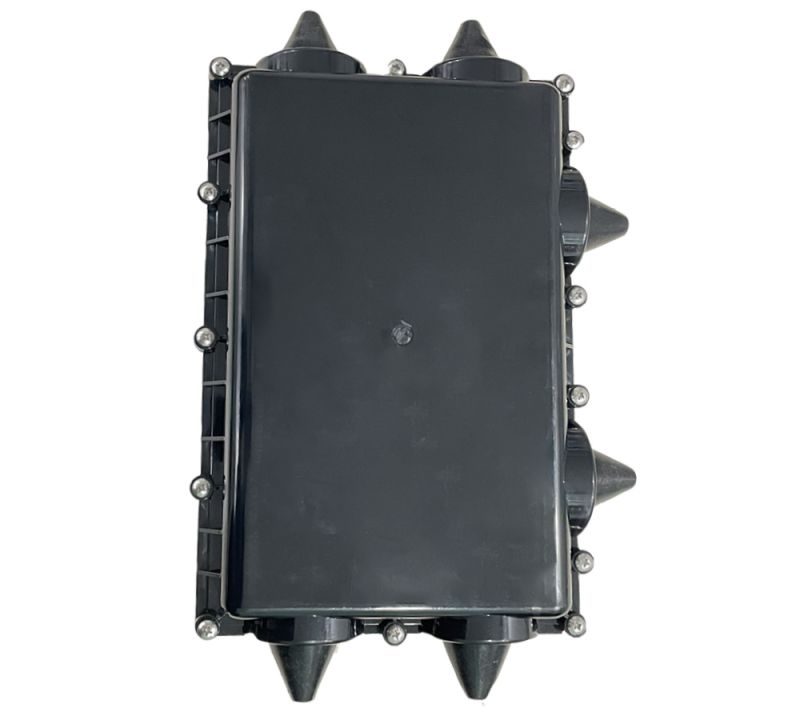

- Captivated screws in lid portion allowing inverted installation.
Impact
1Kg (2.2lb) weight dropped from 1m (3.3feet)
Pull Out
Drop Port:>940N (>211 lbf)
Materials
ABS, black
Water Resistance
Tested to IP67 (equivalent to NEMA 6)
Diamension
39cm*25cm*8cm (including the seal rubber)
31.5cm*21.5cm*7.2cm (not including the seal rubber)
