Fiber optic cable protective box is a case to put in fiber drop cable with a thermal protection tube after hot melting, so that the splice spot can get a better protection.Relative to the cold welding, the hot one can improve the optical performance of connector, make the effective connection rate increased to one hundred percent, prolong the service life of the product and lower maintenance costs.
Features：
1. Fast connecting,Waterproof IP68(waterproof under 0.3m water)

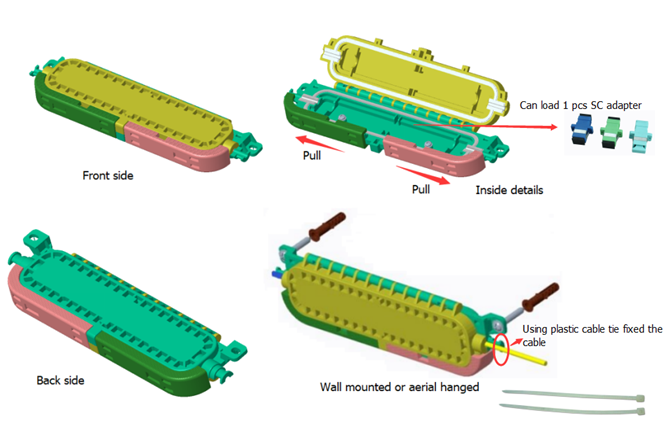

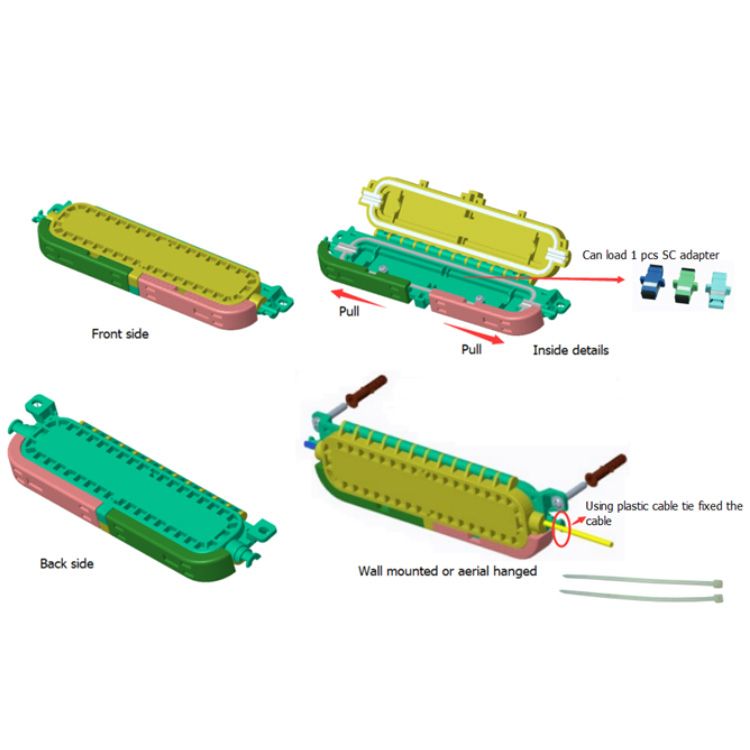

2. Small size, nice shape, convenient Installation.
3. Splice contact protection is stable&reliable,Protectcable from damaged or broken by external force.
4. Outdoor wall-mount& aerial hanged application.
Technical Parameter

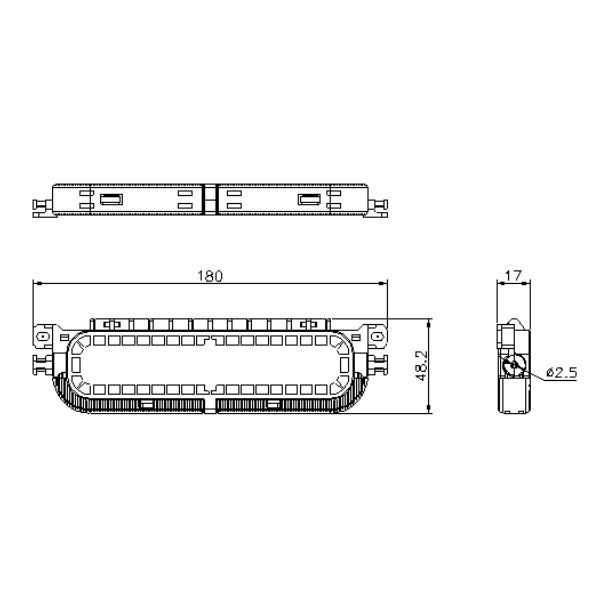

Material | ABS | Dimensions(L*W*H ) | 180*48.2*17 mm |
Capacity of Fiber | 1 Fiber | Capacity of Splice | 1 Core |
Suitable Adapter | SC | Color | Black |
Item | Description | Specification | Unit | Qty |
1 | Round head tapping screw | M3*6 | PCS | 2 |
2 | Flat washer | Φ3 | PCS | 2 |
3 | Wall mount screws
(Round head with self-tapping screws) | M4*25 | PCS | 2 |
4 | Wall mount plugs | Φ6mm/plastic material | PCS | 2 |
5 | Plastic Cable tie | 3mm*120mm | PCS | 2 |
