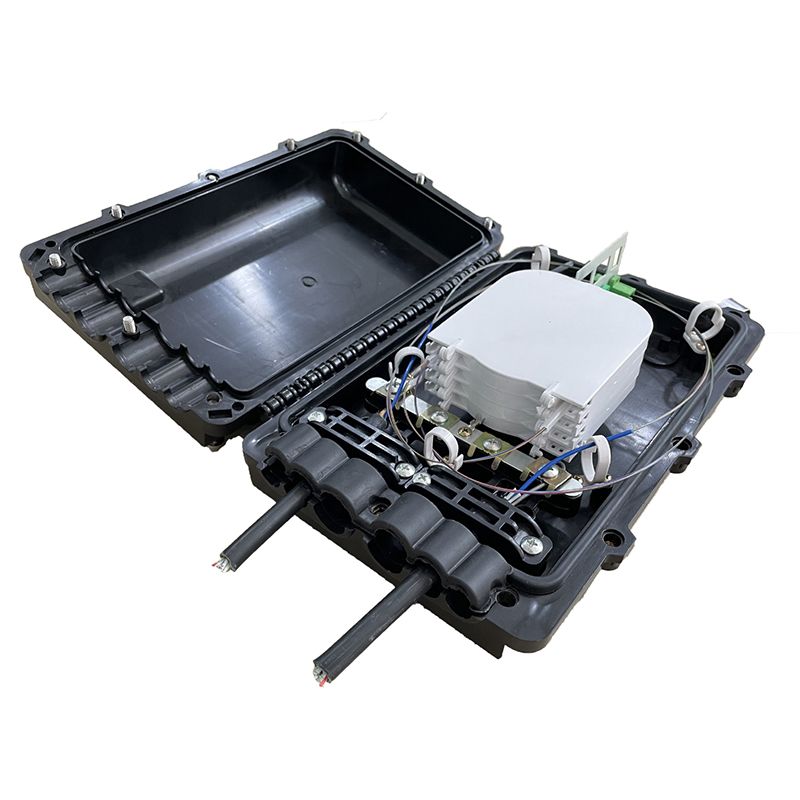

48 core fiber optic splice closure enclosure junction box with PLC

Model Number: WT-SF05-48/96A

Capacity: 24~96 core

Size(mm): 300*200*80mm

Cable diameter: 7~20mm

The radius of curvature of the fiber: 47mm Left fiber length in the plate:≥1.5m

Fiber plate: ≤0.01dB fiber maximum

Cable port: 1in and 1out,2 in and 2 out, or 3 in and 3 out

Fix type: Aerial hanger/Wall-mounting/Directly buried

Max Capacity: 96

立即咨询下一个产品

产品描述联系我们

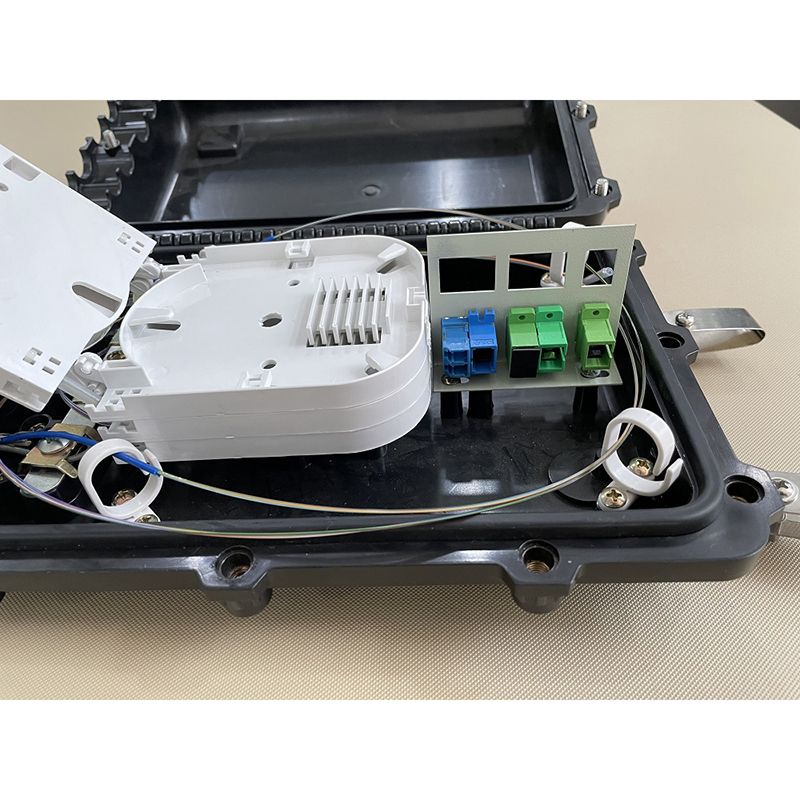

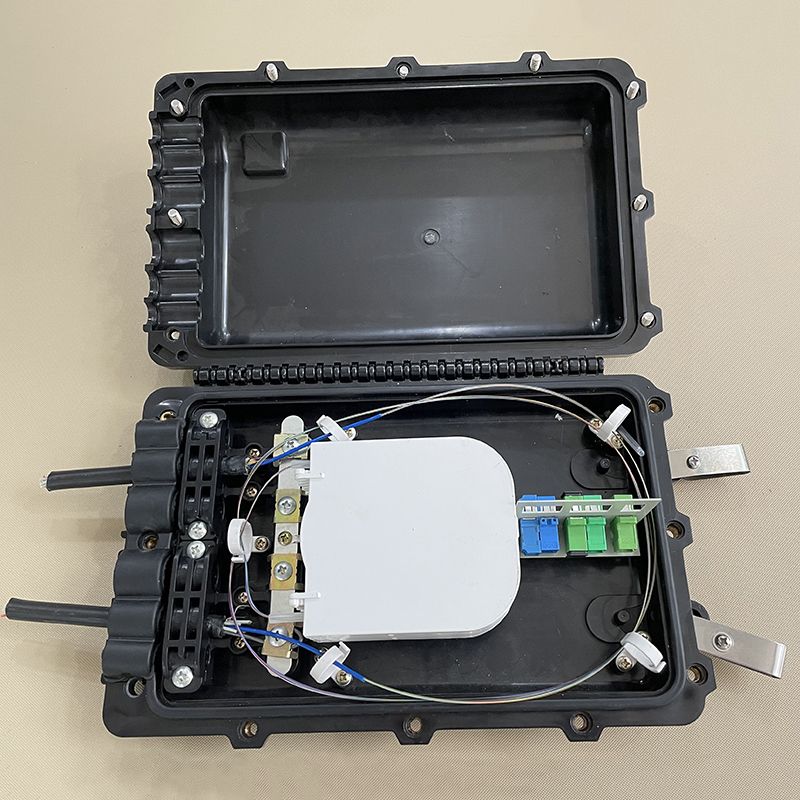

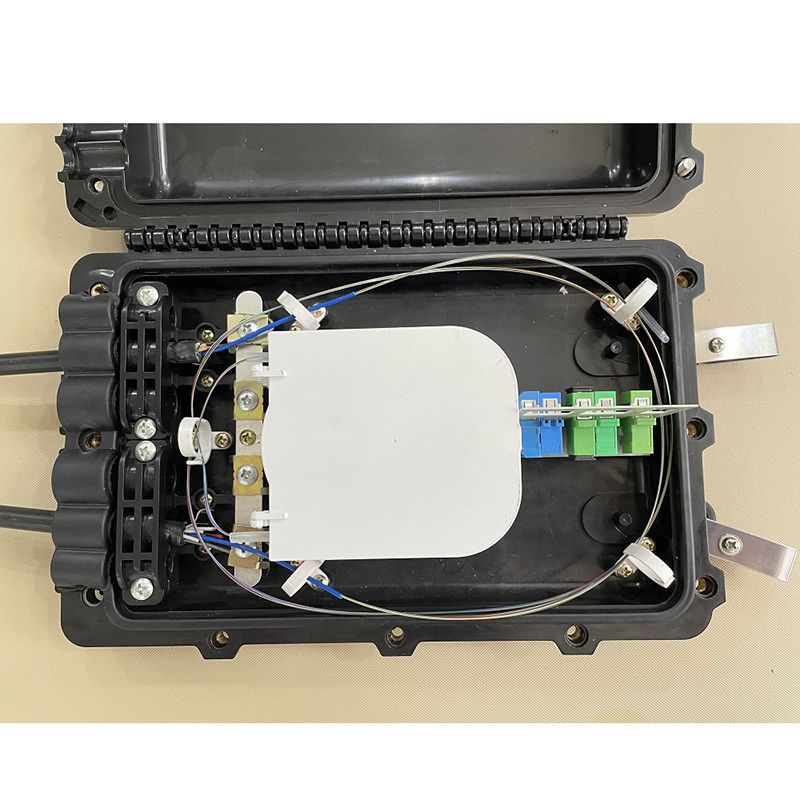

WT-SF05-96A&48B provide with 6 fiber cable in-out round ports and the cable diameter is from 7~20mm. It is widely applied to the splicing and distributing variable optical cables by aerial, duct and burier.

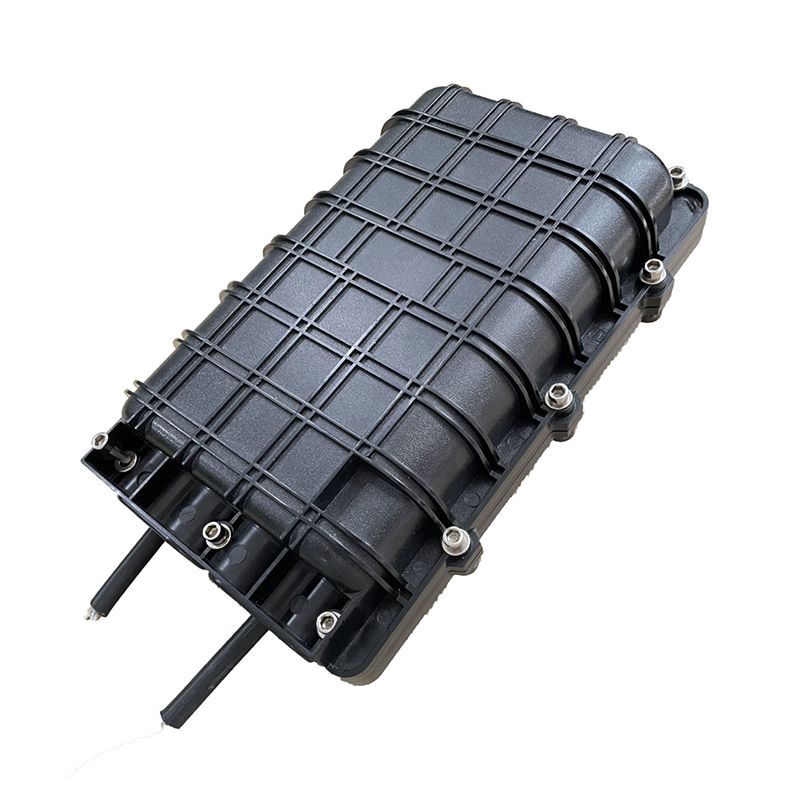

This product is made of high-quality ABS+PC and with the mechanical seal structure filled with the seal material. The external component and fastening piece are all made of the high-quality stainless steel. It can be opened after sealing and can be reused without changing sealing material, with silicone rubber insulation tape.Dust-proof design with IP-68 Protection level.

Applications

Aerial -hanger
Wall-mounting
Directly buried

Product name	48 core ftth fiber optic splice
Capacity	96cores
Material	PC+ABS
Adapter Capacity	5pcs with SC simplex adapters(B type)
Number of Cable Entrance/Exit	6
Dimensions (WHD)	30020080mm
Installation	Aerial–hanger/Wall-mounting/Directly buried
Drop Cable (Round)	7mm~20mm
Optional Accessories	Adapters, Splicing Tray
Weight	2800g(empty)
