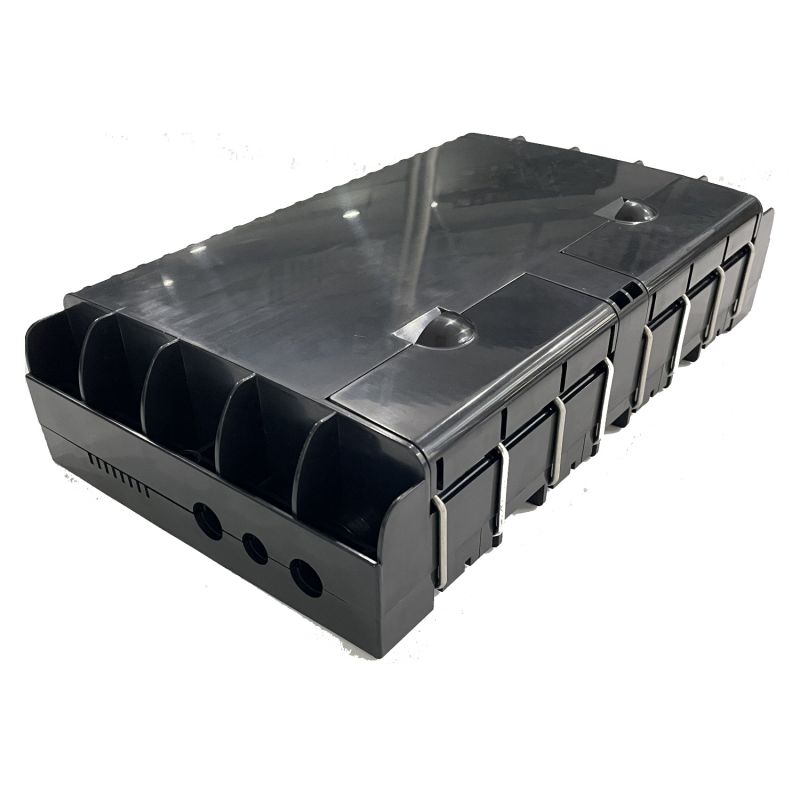

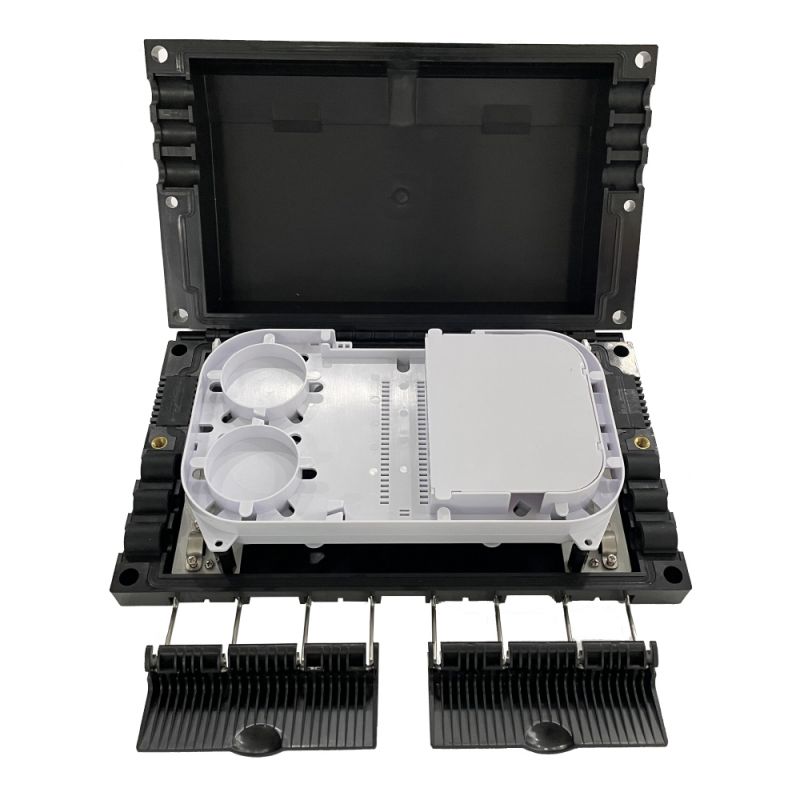

ODM. 24 core FTTH Inline Horizontal Type Fiber Optic Splice Closure

WT-CH017 is made of high-quality ABS material. It is widely applied to the splicing and distributing variable optical cables. It can be place with the aerial cable or buried in earth or put in the pipe line. The outer part and the fusing part of the closure are made of the project plastic with the virtue.

Features

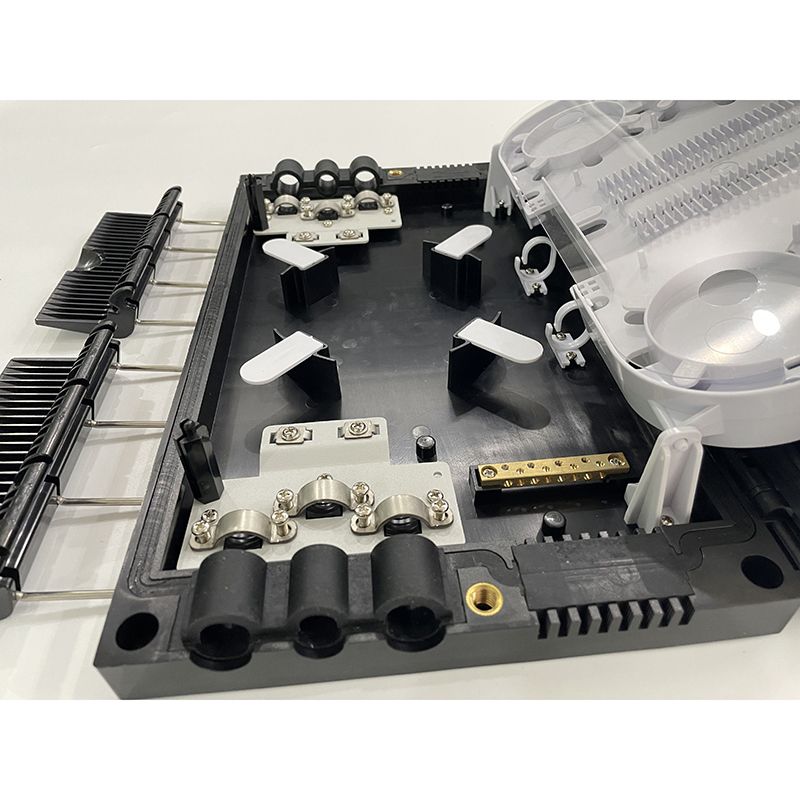

*  ABS material, compact structure, the pressure plate door buckle.

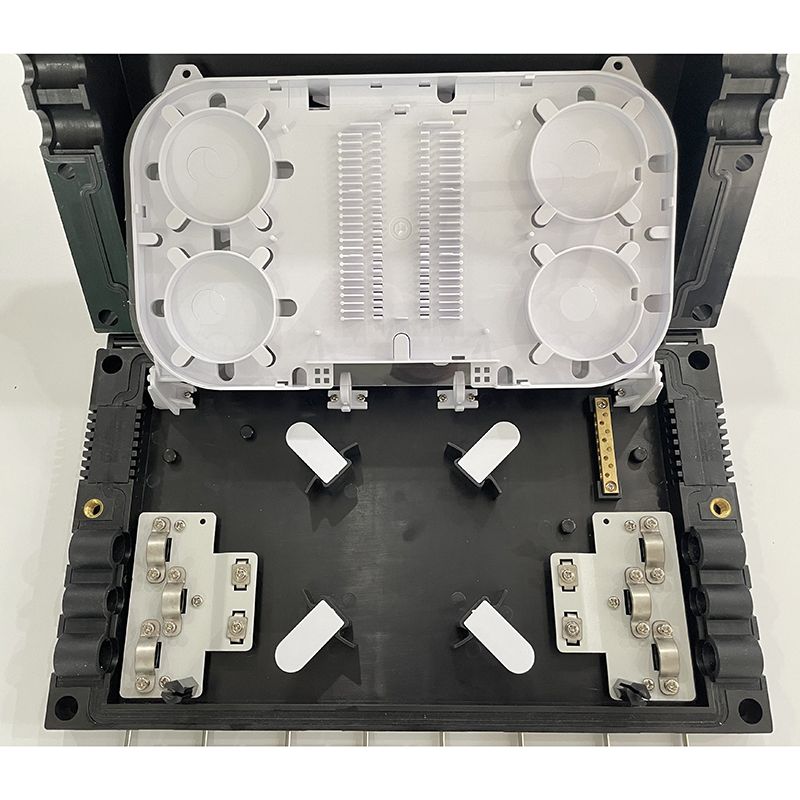

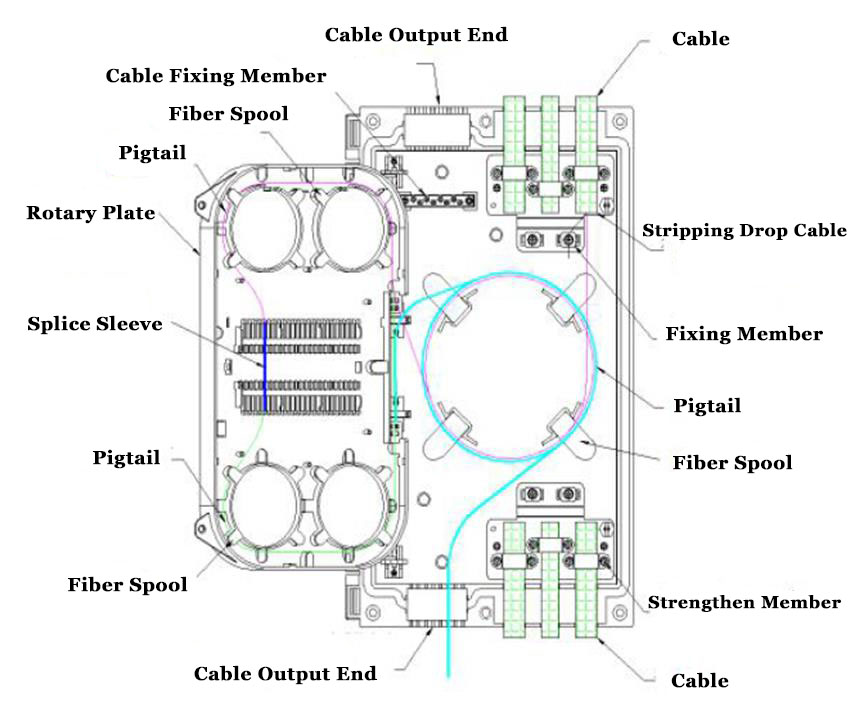

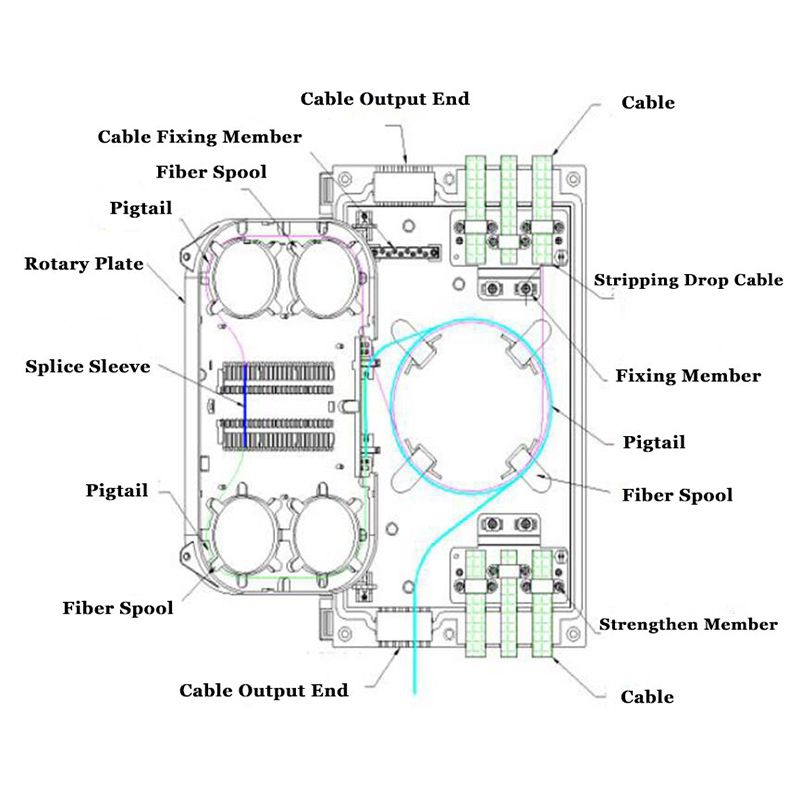

*  Rotary Internal structure, super stratum for splicing and distributing, substratum for cable arrangement.
*  Support cable entry without cutting.

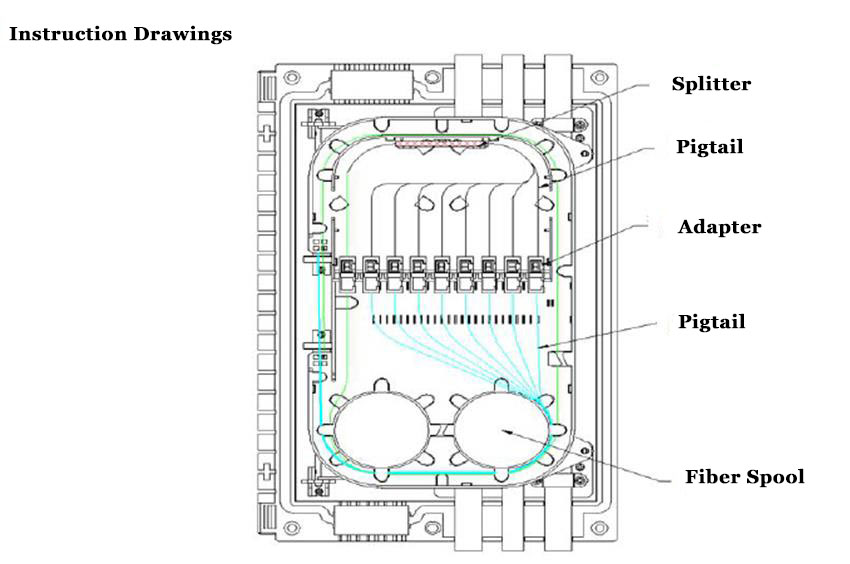

*  Can load 9pcs SC simplex adapter & 1pc 1*8 PLC steel tube type splitter.
Specification:

Model	Dimension (mm)	Material	Splice tray	Max. capacity	Cable port	Remark

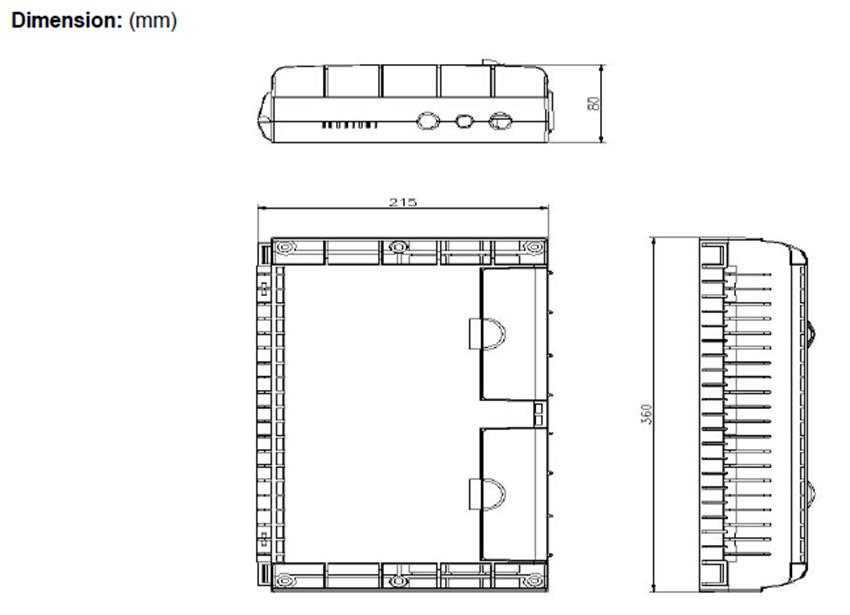

WT-CH017	360x215x80	ABS plastic	1pc	24 fibers	6 & 16 drop cable port	Outdoor aerial hanged, wall mounted, pole mounted

24 core FTTH Inline Horizontal Type Fiber Optic Splice Closure

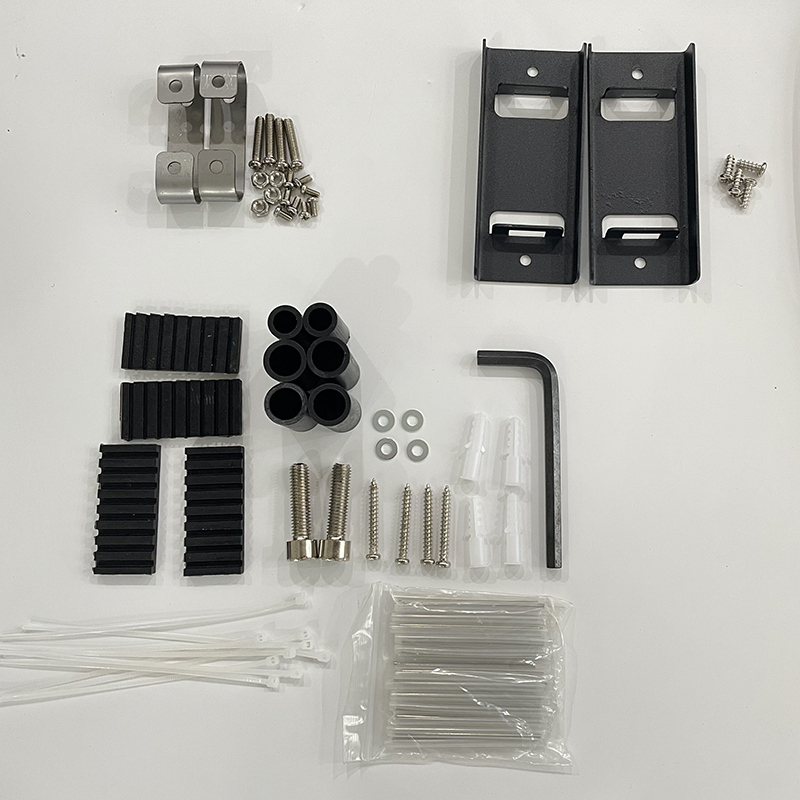

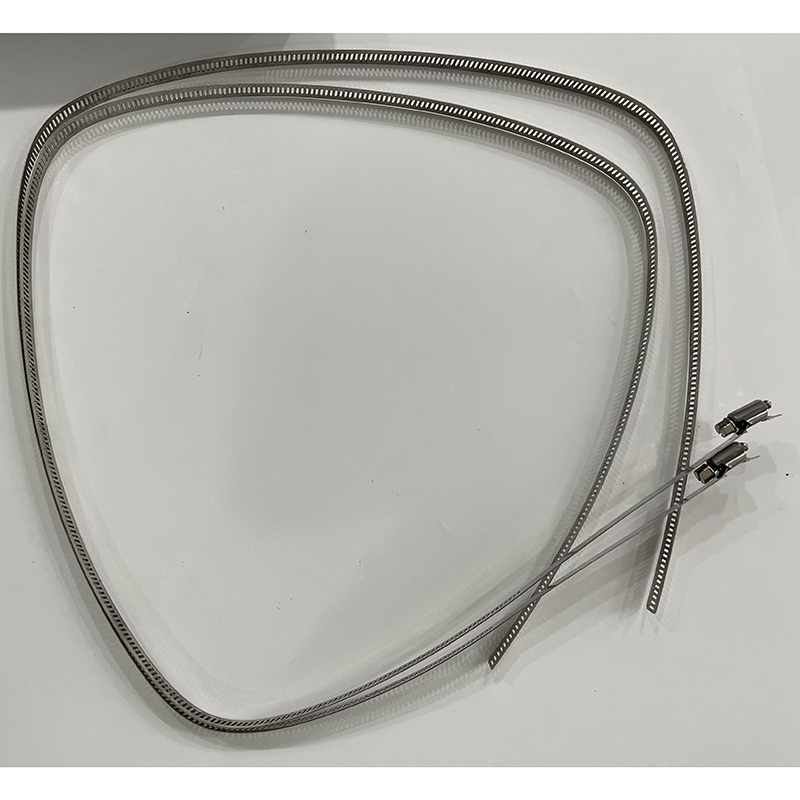

Accessories:
