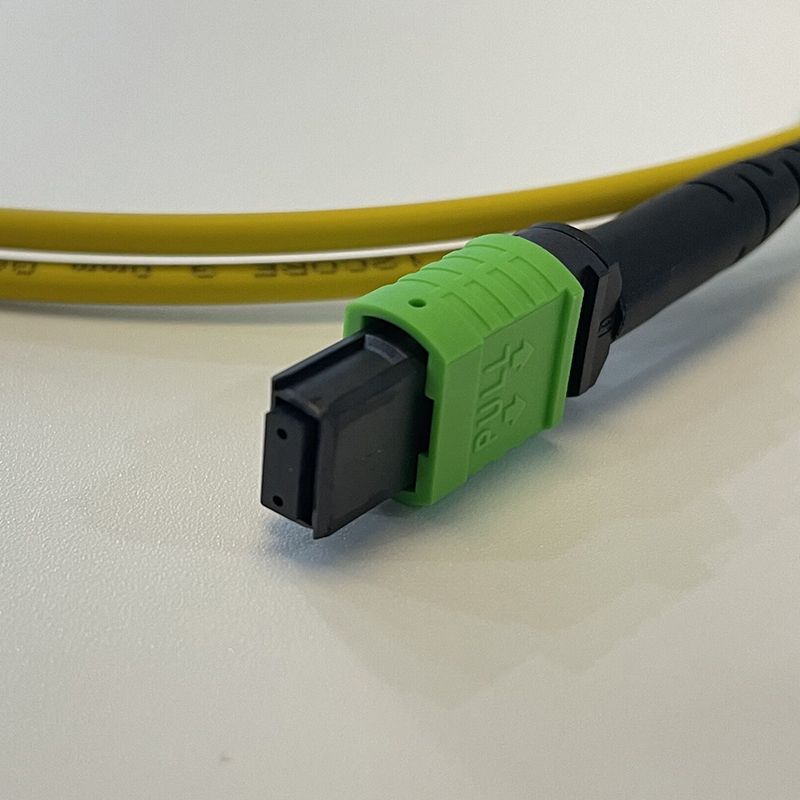

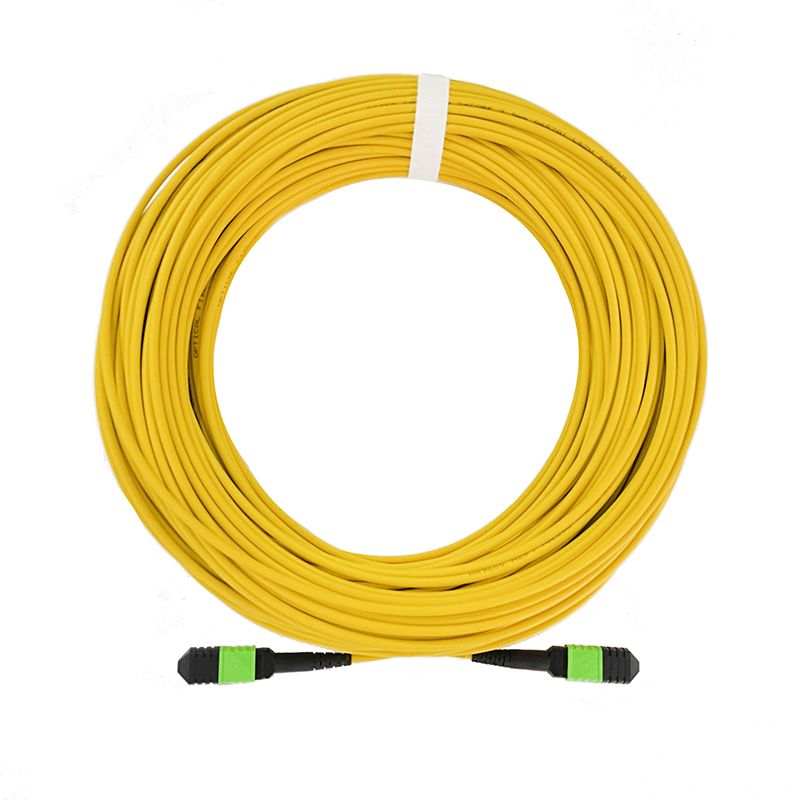

OS2 Singlemode Female MPO APC to Male MPO APC fiber optic patch cord

OS2 Singlemode Female MPO APC to Male MPO APC fiber optic patch cord

Model Number: OS2 Female to male MPO APC Patch cord

Connector: (1)MPO APC <female> (2)MPO APC<male>

Insertion Loss Single mode: <0.2dB

Return Loss Single mode: ≥45dB/50dB/60dB

Operating Temperature Single mode: -40 to +75°C


分享:

产品描述 联系我们

MPO multi-fiber cabling system is ideally suited for a high density  environment that demands space saving and innovative cable management solutions; MPO supports various connections from multi-fiber to single fiber out.


Application

1. CATV; Active device termination;
2. Telecommunication networks;
3. Metro;
4. Local Area Networks;
5. Data processing networks;
6. Test equipment;
7. Premise installation;
8. Wide Area Networks.


Features

1. Low insertion and back reflection loss;
2. Good exchangeability;
3. Good durability;
4. High temperature stability;
5. Standard: TelcordiaGR-326-CORE.


Items
Single mode
Multimode
PC
UPC
APC
62.5/125
50/125
50/125 10G
Insertion Loss
<0.2dB
<0.3dB
Return Loss
≥45dB
≥50dB
≥60dB
 ≥35dB
Durability
<0.1dB typical change,
500 matings
Operating Temperature
-40 to +75
-40 to +75
Ferrule Hole Sizes
125.0+1/-0um, Conentricity:≤1um
125um,Conectricity:1≤3um
125.3+1/-0um, Conentricity:≤1um
127um,Conectricity:1≤3um
125.5+1/-0um, Conentricity:≤1um
128um,Conectricity:1≤3um
126.0+1/-0um, Conentricity:≤1um
