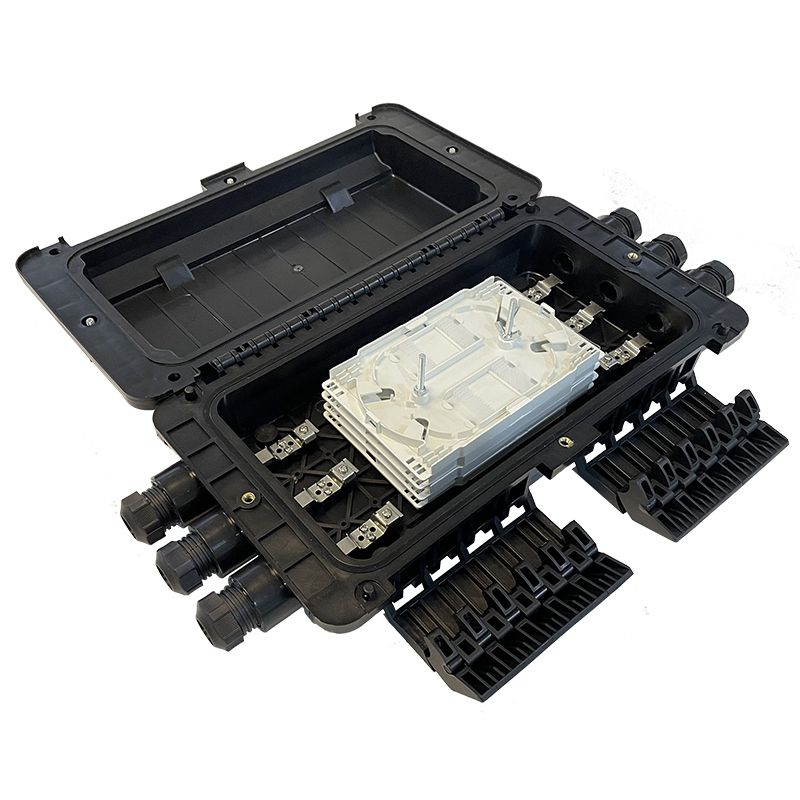

Fiber optic splice closure is mainly used for fiber optic connection and protection. This kind of box is suitable for connecting overhead, pipes and buried direct and branch circuits. The box and base are sealed with hoops and rubber. The closed casing is made of high-quality engineering plastics, which has good resistance to acid, alkali and salt corrosion, anti-aging properties, smooth appearance, and reliable mechanical structure.
Features：
1. Waterproof /Anti oxidation
2. Flame retardant/Earthquake resistant
3. Low insertion loss and back reflection loss
4. Good exchangeability 5. Good Durability
6. High temperature stability
7. Precise connector
Advantage：

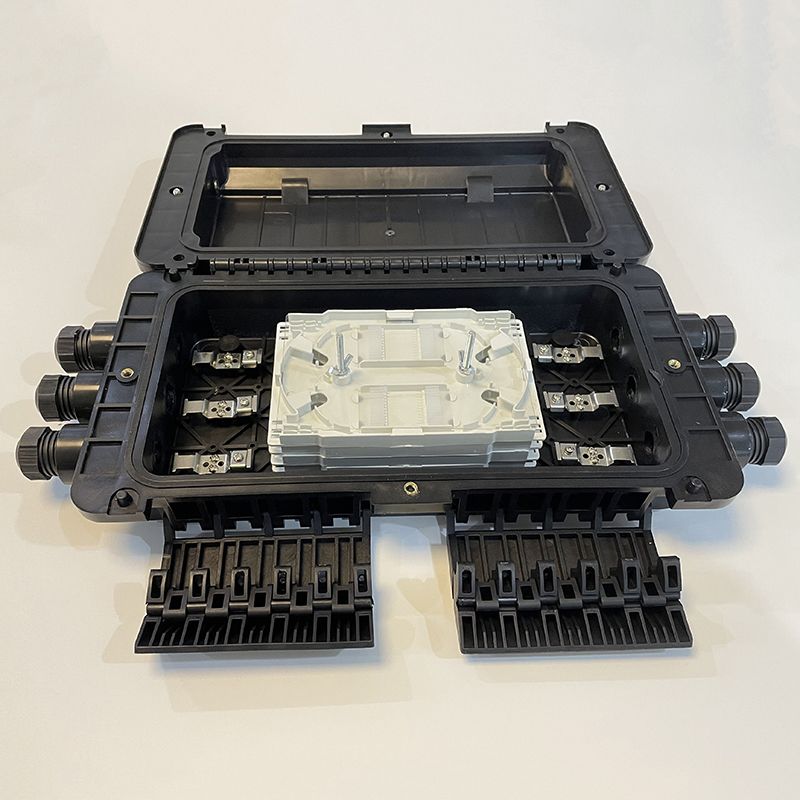

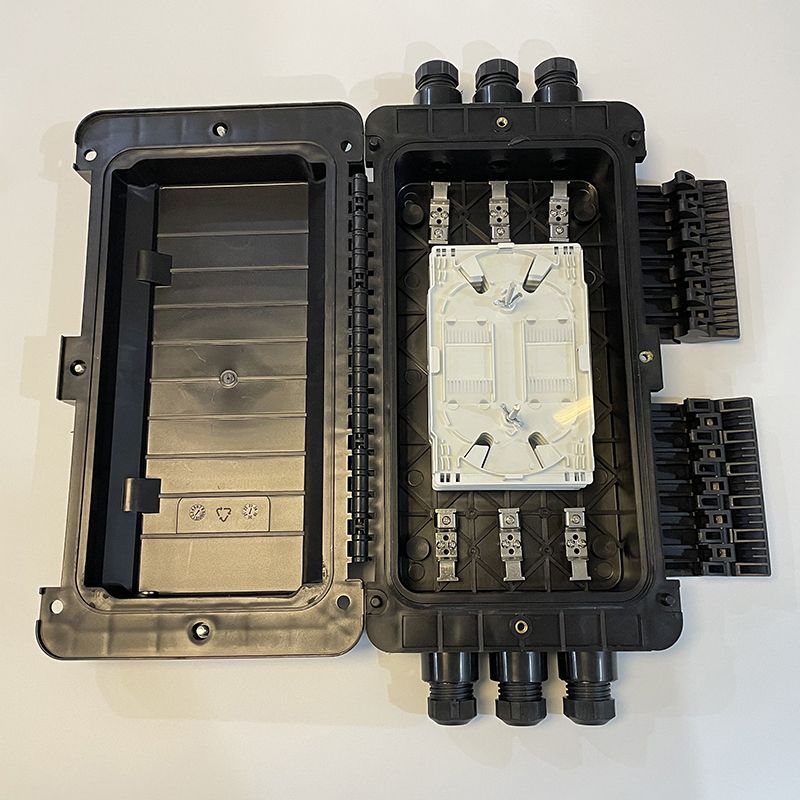

The mechanical structure is reliable and has the performance to withstand wild environment and strong climate changes as well as severe working environment. The splicing disc (FOST) inside the enclosure is rotatable like a booklet and has sufficient radius of curvature and space for winding the fiber to ensure a 40 mm radius of curvature for the aperture. Each fiber optic cable and fiber can be operated individually. The product can be opened again and reused after installation.
Technical Parameter
Dimensions and Capability |
Dimensions (W*H*D)
| 500*130*240mm |
Material
| PP+GF/PC |
Number of Cable Entrance/Exit
| 2/2 or 3/3 |
Capacity
| 96cores |

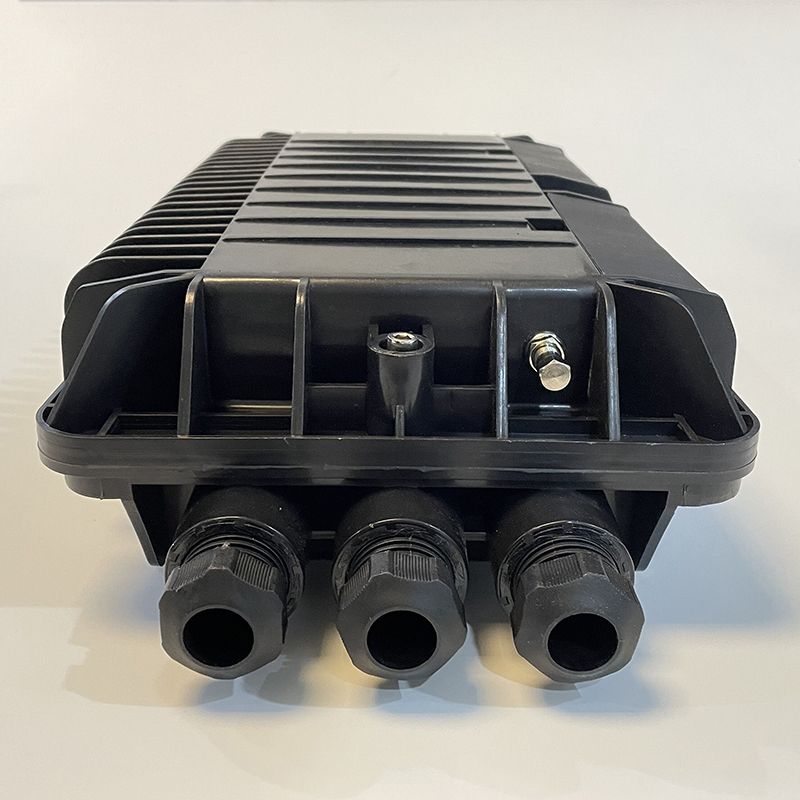

Ports
| 2 or 3 inlet port / 2 or 3 out port 26mm |
tray
| 24F/tray, max capacity 96F(4 trays) |
Installation Type
| Horizontal |
Weight
| 3kg |
Protection grade
| IP68 |
Packing
| 10 pcs / carton 72*42*45cm 30kg |

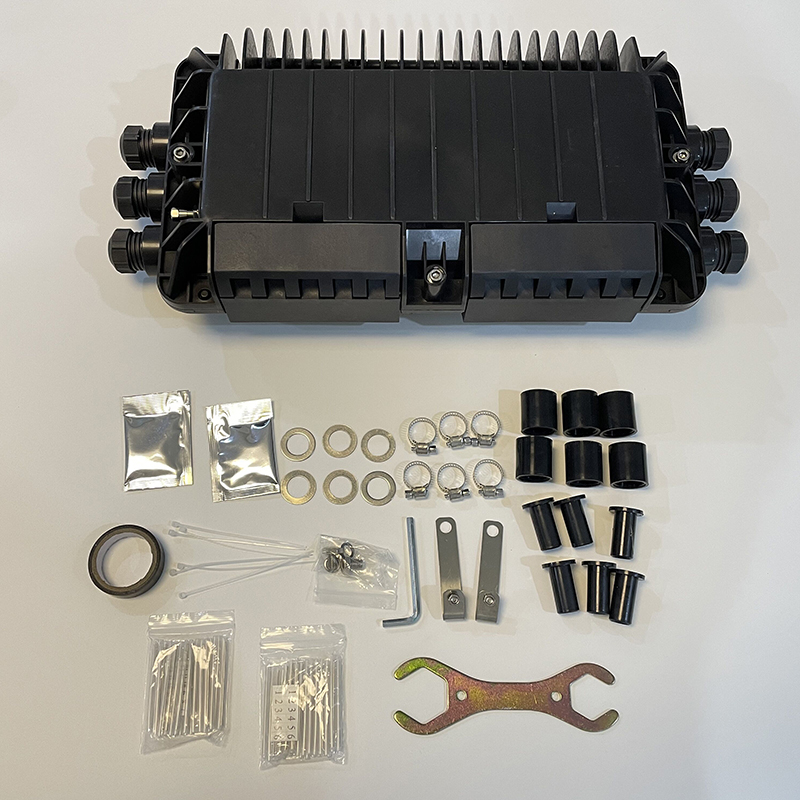

Accessories:
