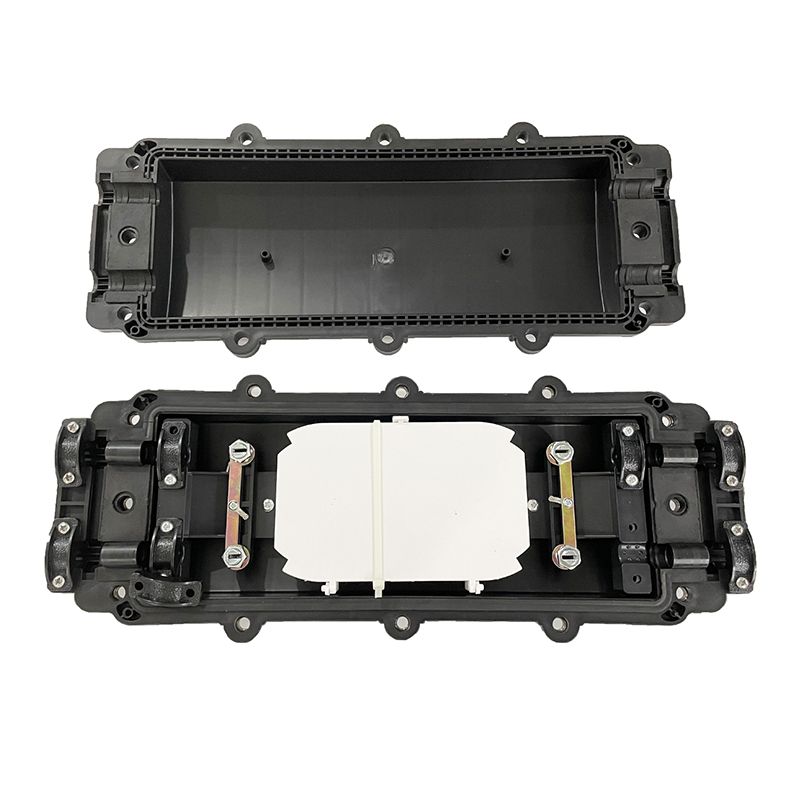

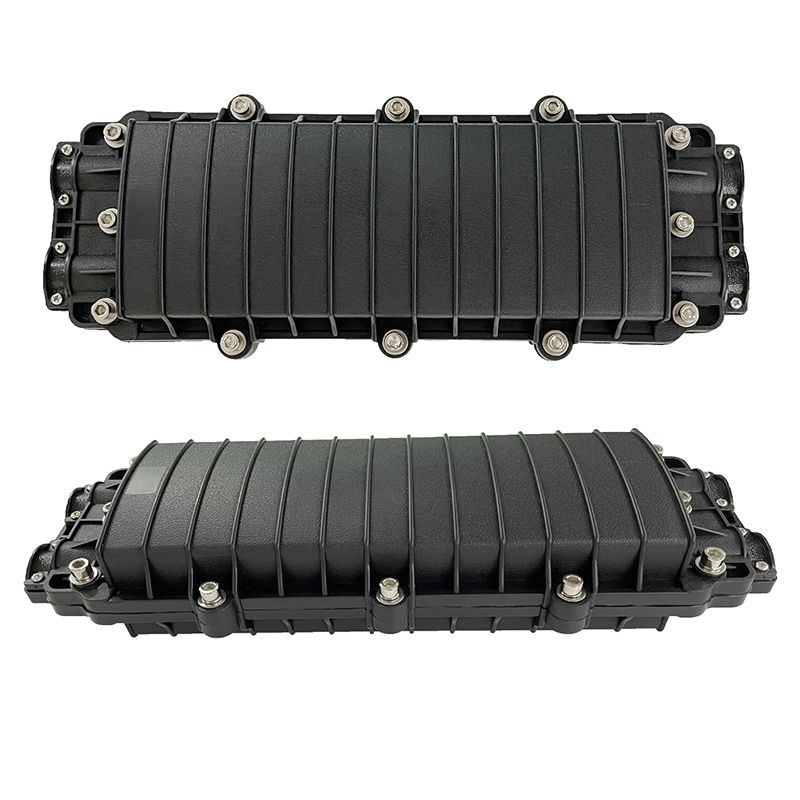

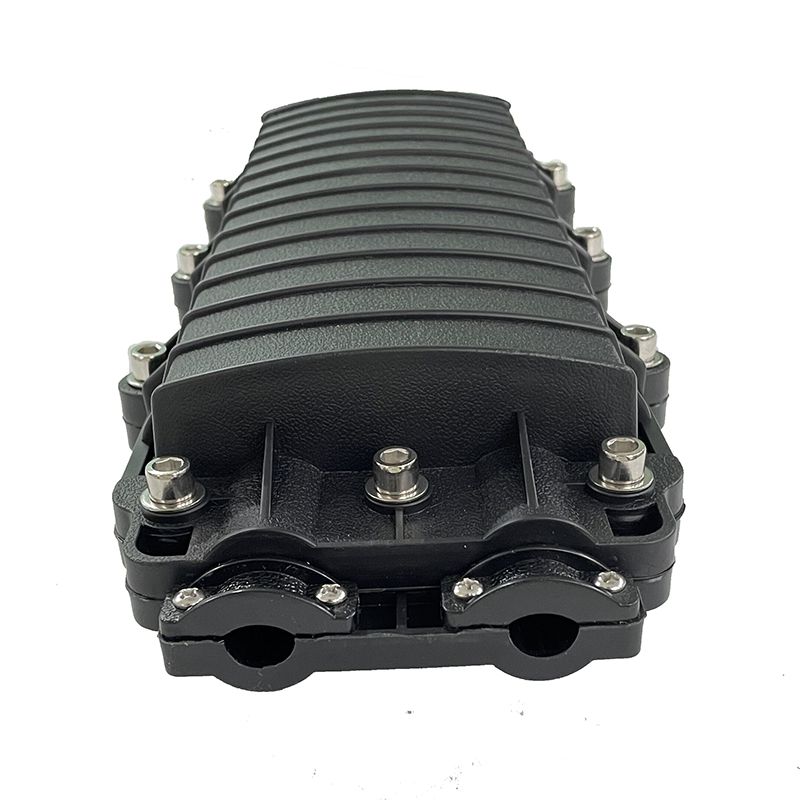

Horizontal Fiber optic splice closure of WT-H001 is suitable for single core and ribbon fiber ,they are installed on wall , direct-buried ,aerial ,pipelined .
The housing of box is made of high-grade PC plastic, the tray is made of ABS plastic ,these material to ensure the lifetime. We use special rubber to seal the cover ,which not only ensure the sealing performance ,but also increases the oxidation resistance ,it completely reaches the repetition sealing requirements and realized the repetition use of the products.
Main technical Indexes:
1.Seal performance : the pressure in the closure is 100Kpa, put the closure into the water for 15minutes, there is no air bubble , and observed it for 24 hours , there is no change of air pressure
2.Re-entry performance: after 3 times of normal operations ,it can still be up to the seal performance standard
3.Insulation resistance: ≥2×104MΩ
4.Withstand voltage strength :there is no puncture and no arc-cover after the function of 15KVDC/1min
| Item | FOSC-WTH001 |
| Dimension (cm) | 44*20*11 |
| Weight (Kg) | 2.6 Kg |
| Cable entry ports | 2 in & 2 out |
| Max. Capacity | 60 |
Sealing structure | Sticky cincture or silicon gum material |
