Features

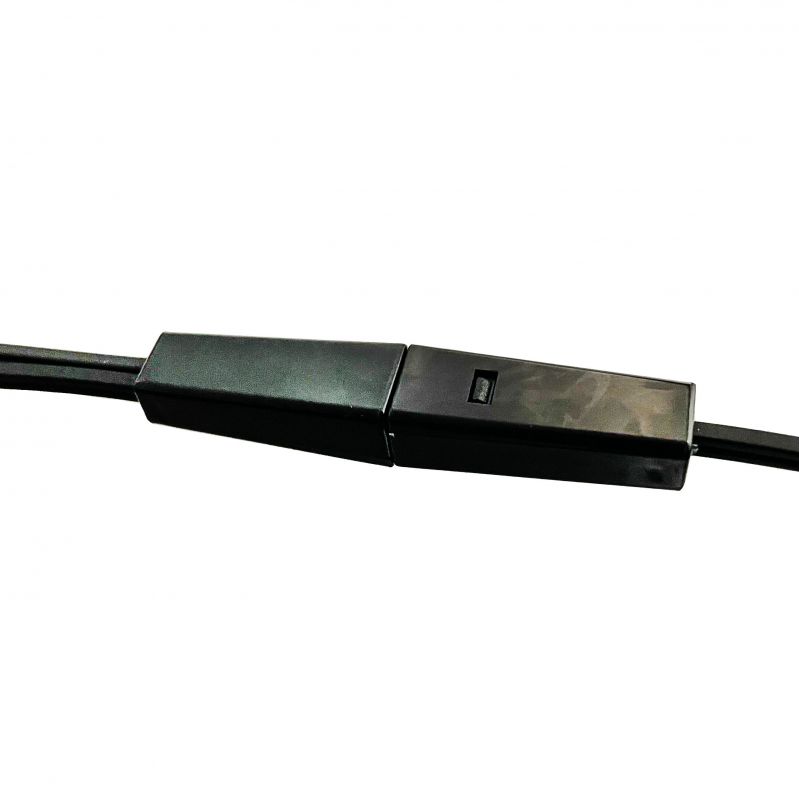

1.Black fan-out tubing
2.Compact design
3.Quick and easy to install
4.Optimized for field termination of cables
5.Excellent fiber routing capabilities
6.Bend radius protection designed into each unit
Application
Local Area Networks;
Data processing networks;
Test equipment;
Premise installation;
Wide Area Networks;
Main Material Specification
Project | Specifications | Remarks |
Fiber Type | G652D |
Accord with ROHS and IEC Standard |
Cable Diameter | 5*2mm | |
Cable Material | LSZH | |
Cable Color | Black | |

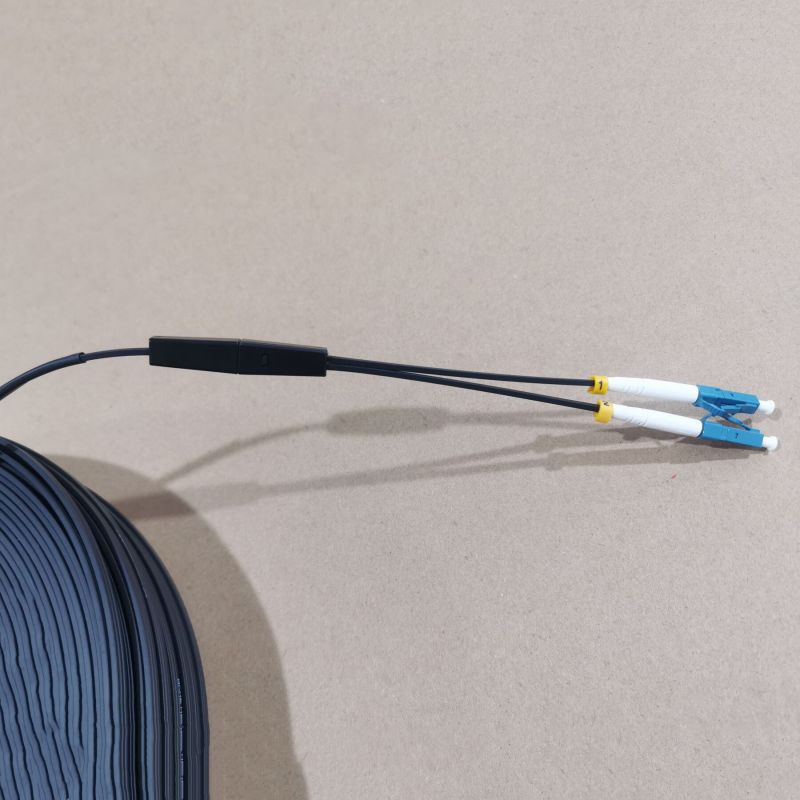

Connector Type | DLC |
Fiber Parameters
No |
Items |
Unit | Specification | |
G652D | ||||
1 |
Mode FieldDiameter | 1310nm | μm | 9.2±0.4 |
1550nm | μm | 10.4±0.5 | ||
2 | Cladding Diameter | μm | 124.8±0.7 | |
3 | Cladding Non-Circularity | % | ≤0.7 | |
4 | Core-Cladding ConcentricityError | μm | ≤0.5 | |
5 | Coating Diameter | μm | 245±5 | |
6 | Coating Non-Circularity | % | ≤6.0 | |
7 | Cladding-CoatingConcentricity Error | μm | ≤12.0 | |
8 | Cable Cutoff Wavelength | μm | λcc≤1260 | |
9 |
Attenuation(max.) | 1310nm | dB/km | ≤0.4 |
1550nm | dB/km | ≤0.3 | ||
