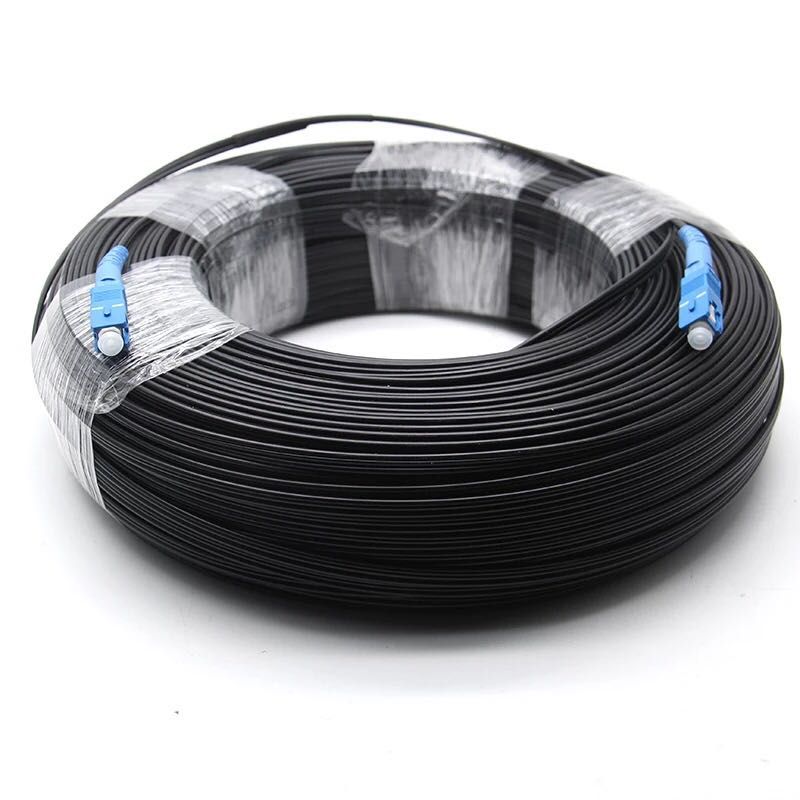

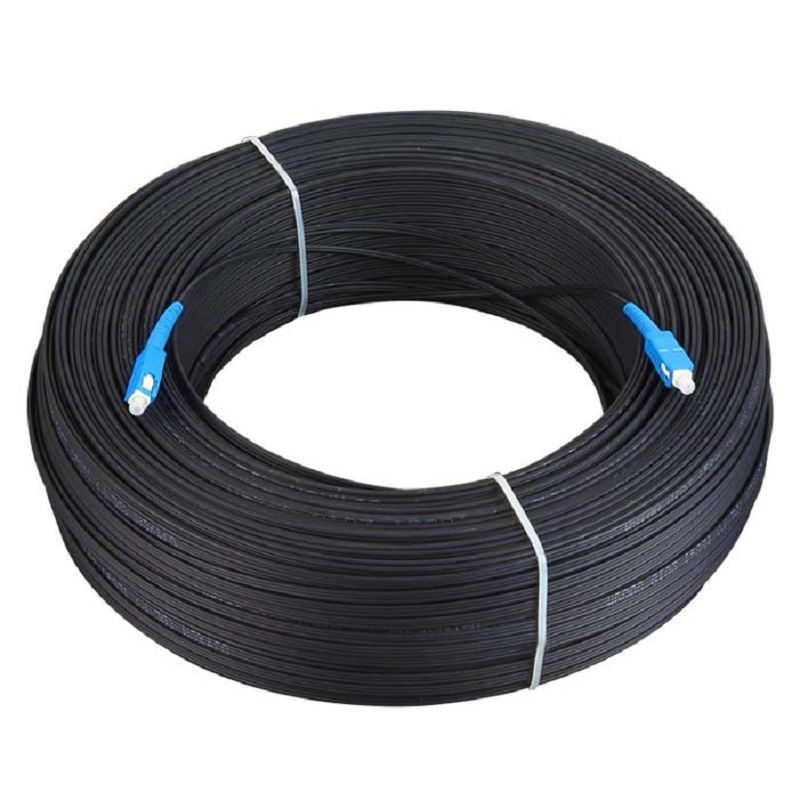

SC/UPC SM FTTH patch cord drawing:

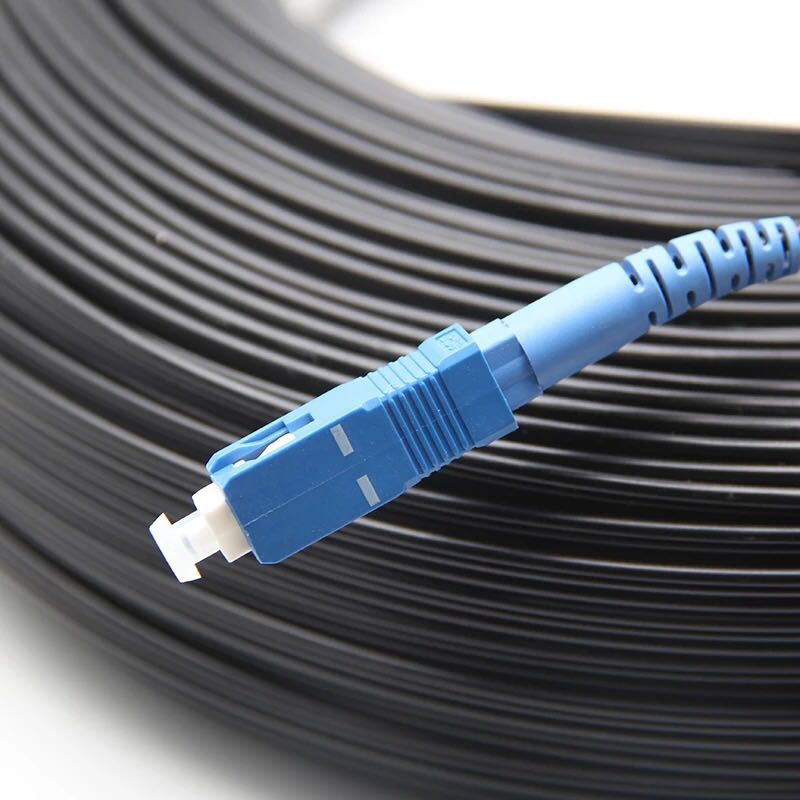

Connector A: SC/UPC 3.0mm Simplex connector, Blue housing, green boot.
Cable: 1.7mm Simplex Cable, Yellow color; (Fiber SM 9/125 G652D )
Connector B : SC/UPC 3.0mm Simplex connector, Blue housing, green boot.
**Length= 1Meter (+5cm/-0cm)

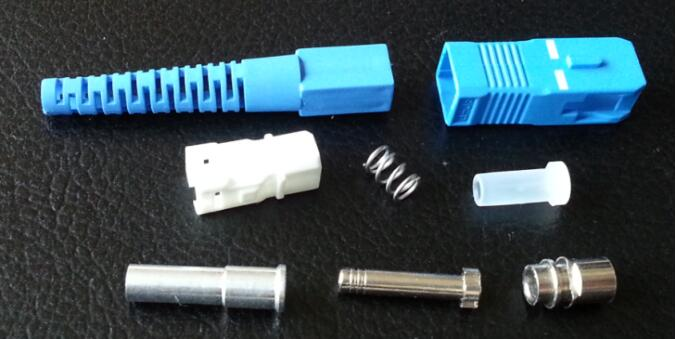

1) Connector structure:

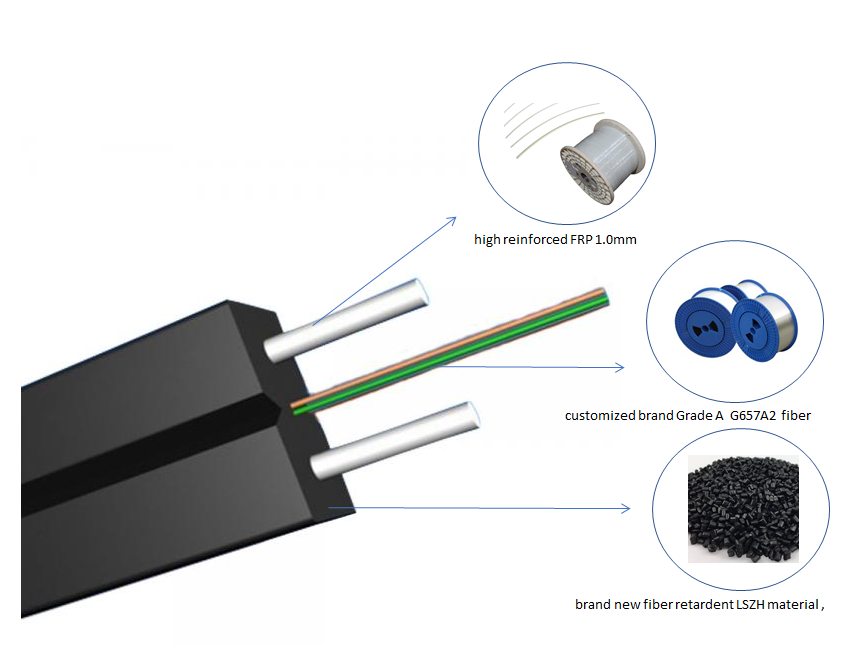

2) Cable structure:

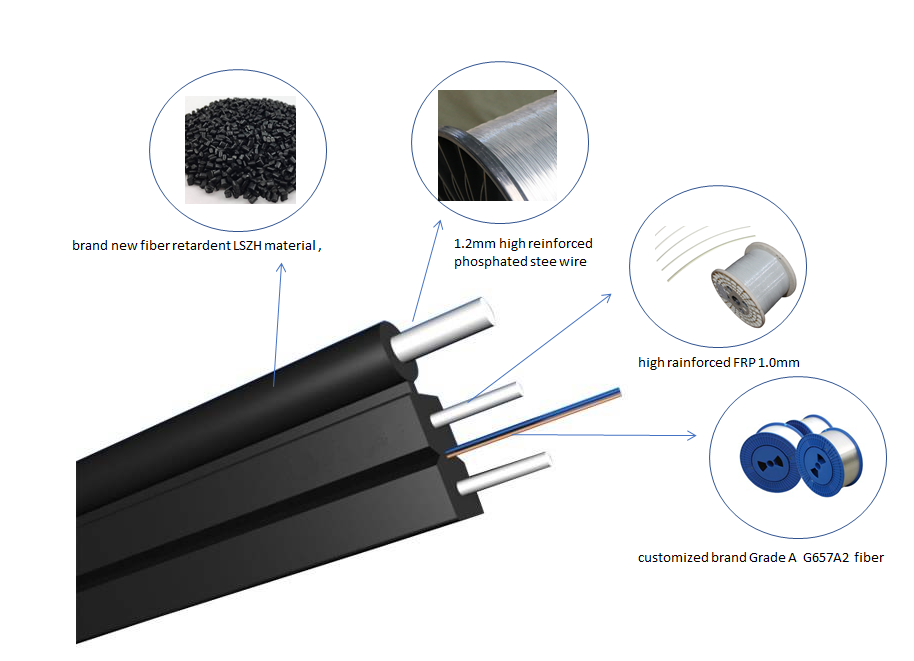

a. Indoor FTTH cable
b. Outdoor FTTH cable
Parameter
1. Single mode fibers (9/125 SM G652A)
2. Test wavelength: 1310/1550nm
3. Insertion Loss (Max): -0.3dB
4. Return Loss (RL): UPC>50
5. Durability: <0.1dB typical change,1000 repeatability
| NO | Item | Specifications | ||
| G.657A1 | ||||
| 1 | Cladding Diameter (μm) | 125±0.7 | ||
| 2 | Cladding non-circularity (%) | ≤0.7 | ||
| 3 | Core-cladding concentricity error (μm) | ≤0.5 | ||
| 4 | Mode field Diameter @1310 (μm) | (8.6~9.5)±0.4 | ||
| 5 | Cladding -coating concentricity error (μm) | ≤12.0 | ||
| 6 | Coating Diameter(μm) | 245±0.5 | ||
| 7 | Fiber Cutoff Wavelength (nm) | λccf ≤1260 | ||
| 8 | Attenuation(max.) (dB/km) | 1310nm | ≤0.4 | |
| 1550nm | ≤0.3 | |||
| 9 | Bend Loss (dB) | Bend Radius | 10 | 15 |
| Bend Turns | 1 | 10 | ||
| 1550nm | ≤0.75 | ≤0.25 | ||
| 1625nm | ≤1.5 | ≤1.0 | ||
| Items | Unite | Specifications |
| Minimum allowable tensilestrength(N)short term | N | 600 |
| Minimum allowable tensilestrength(N)long term | N | 200 |
| Crush(Long Term) | N/10cm | 300 |
| Crush(Short Term) | N/10cm | 1000 |
| Min. Bend Radius(Dynamic) | mm | 20D |
| Min. Bend Radius(Static) | mm | 5D |
| Operating Temperature | ℃ | -20~+60 |
| Storage Temperature | ℃ | -20~+60 |
