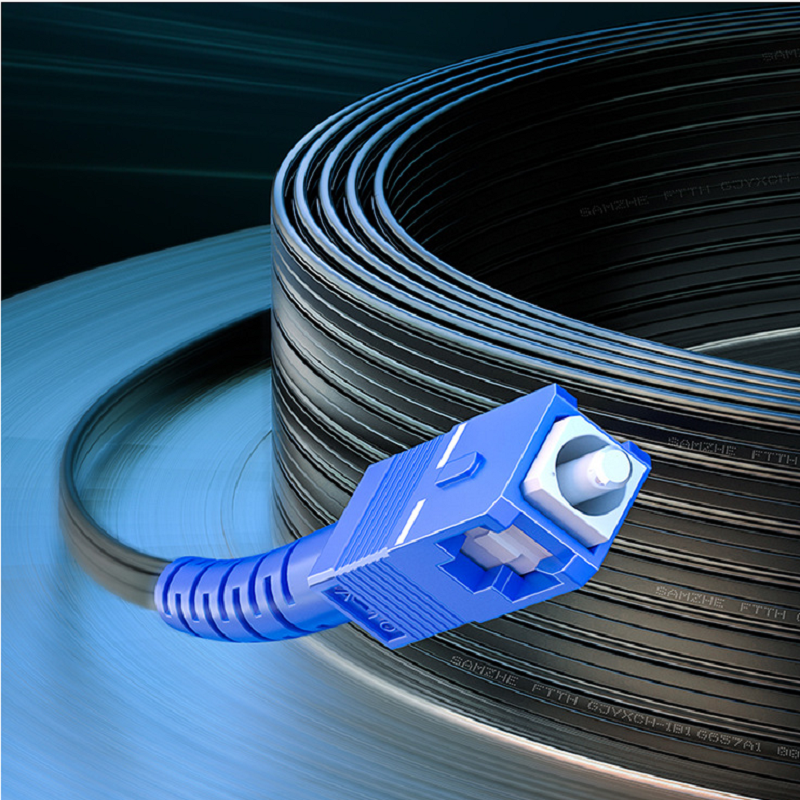

Outdoor FTTH Drop Cable Patch Cord Flat Type Arial G657A1 G657A2 LSZH Steel Strength

Model Number: SC UPC Drop Cable Patch Cord

End-face Standard: Telcordia GR-326.Core

Quality Level: IEC grade A

Insertion loss: <0.2dB(Typical), 0.3dB (Max)

Return Loss: APC>60dB;UPC>50dB

Clean end face ferrule: 100% clean,no dust, no water,no scratch

100% 3D interference tested: Available

Company certification: ISO 9001:2008

立即咨询下一个产品

产品描述联系我们

SC/UPC SM FTTH patch cord drawing :

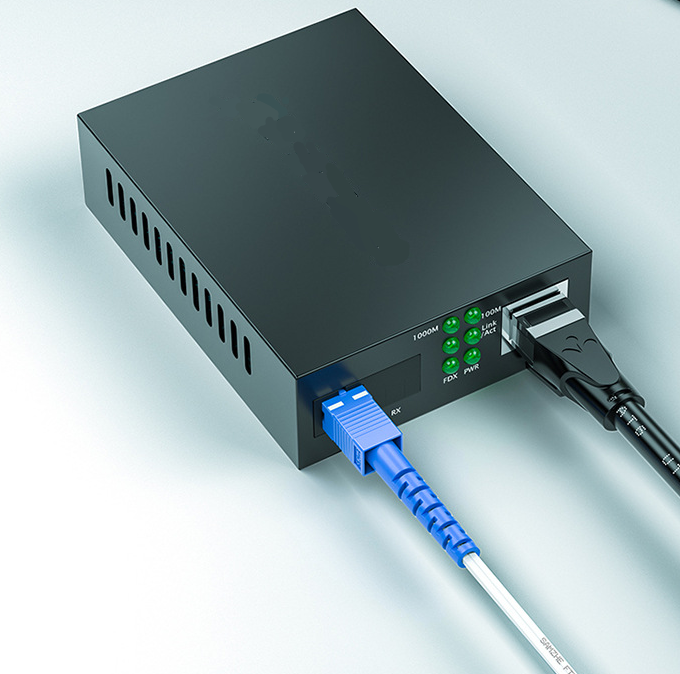

Outdoor Simplex SC UPC to SC UPC FTTH Drop Patch Cord G657A1 Fiber Optic

Connector A : SC/UPC 3.0mm Simplex connector ,Blue housing,green boot.
Cable: 1.7mm Simplex Cable, Yellow color ; (Fiber SM 9/125 G652D )
Connector B : SC/UPC 3.0mm Simplex connector ,Blue housing,green boot.
**Length= 1Meter (+5cm/-0cm)

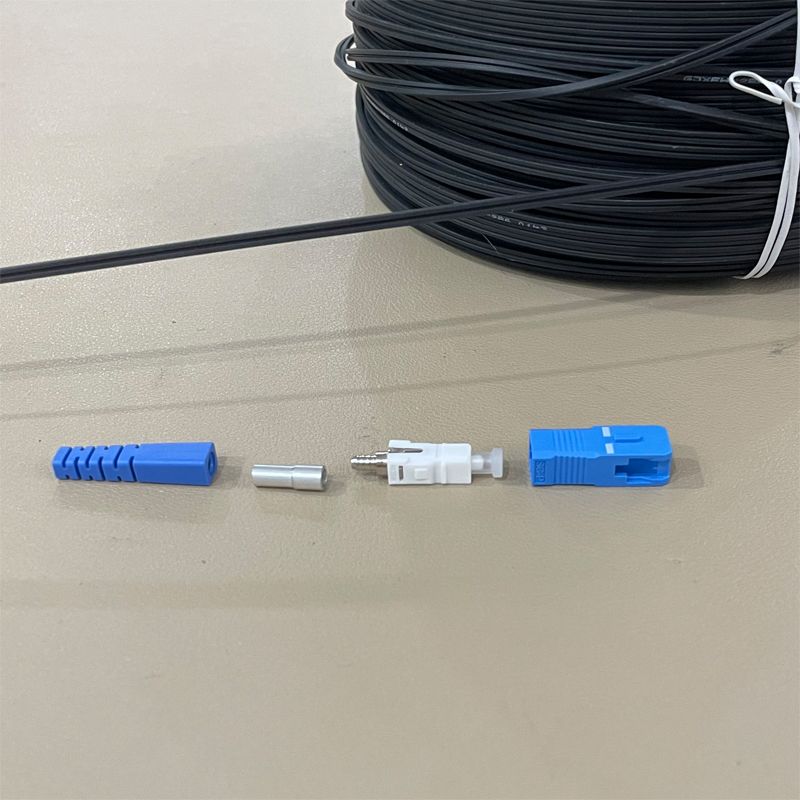

1)connector structure :

Outdoor Simplex SC UPC to SC UPC FTTH Drop Patch Cord G657A1 Fiber Optic

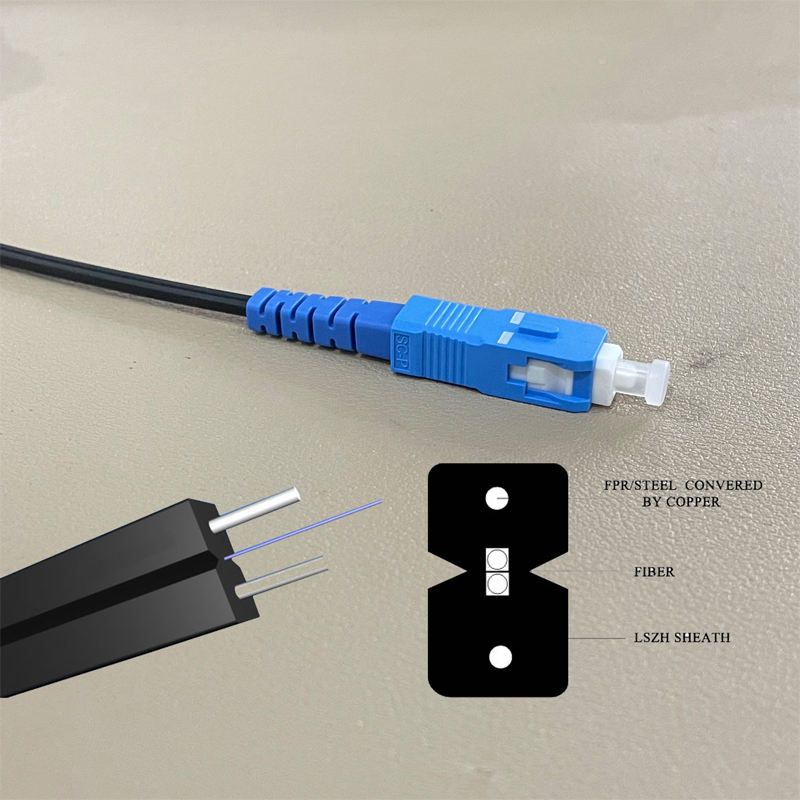

2)cable structure:

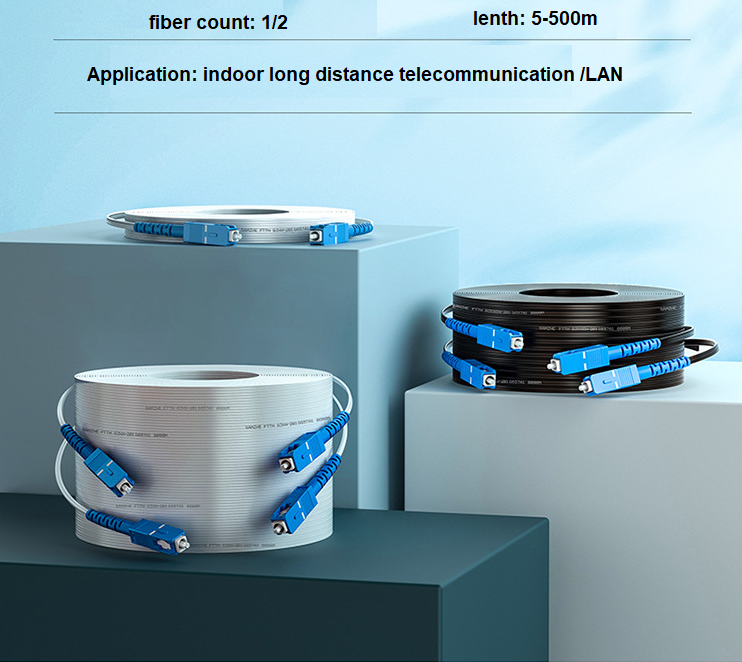

a. indoor FTTH cable

Outdoor Simplex SC UPC to SC UPC FTTH Drop Patch Cord G657A1 Fiber Optic

b. outdoor FTTH cable

Outdoor Simplex SC UPC to SC UPC FTTH Drop Patch Cord G657A1 Fiber Optic

Parameter

1, Single mode fibers (9/125 SM G652A)
2, Test wavelength: 1310/1550nm
3, Insertion Loss (Max): -0.3dB
4, Return Loss (RL): UPC>50
5, Durability: <0.1dB typical change,1000 repeatability

NO	Item		Specifications
			G.657A1
1	Cladding Diameter (μm)		125±0.7
2	Cladding non-circularity (%)		≤0.7
3	Core-cladding concentricity error (μm)		≤0.5
4	Mode field Diameter @1310 (μm)		(8.6~9.5)±0.4
5	Cladding -coating concentricity error (μm)		≤12.0
6	Coating Diameter(μm)		245±0.5
7	Fiber Cutoff Wavelength (nm)		λccf ≤1260
8	Attenuation(max.) (dB/km)	1310nm	≤0.4
		1550nm	≤0.3
9	Bend Loss (dB)	Bend Radius	10	15
		Bend Turns	1	10
		1550nm	≤0.75	≤0.25
		1625nm	≤1.5	≤1.0

Items	Unite	Specifications
Minimum allowable tensilestrength(N)short term	N	600
Minimum allowable tensilestrength(N)long term	N	200
Crush(Long Term)	N/10cm	300
Crush(Short Term)	N/10cm	1000
Min. Bend Radius(Dynamic)	mm	20D
Min. Bend Radius(Static)	mm	5D
Operating Temperature	℃	-20~+60
Storage Temperature	℃	-20~+60
