Features:
IP65 protection,salt-mist proof
Easy,reliable and cost-effective installation

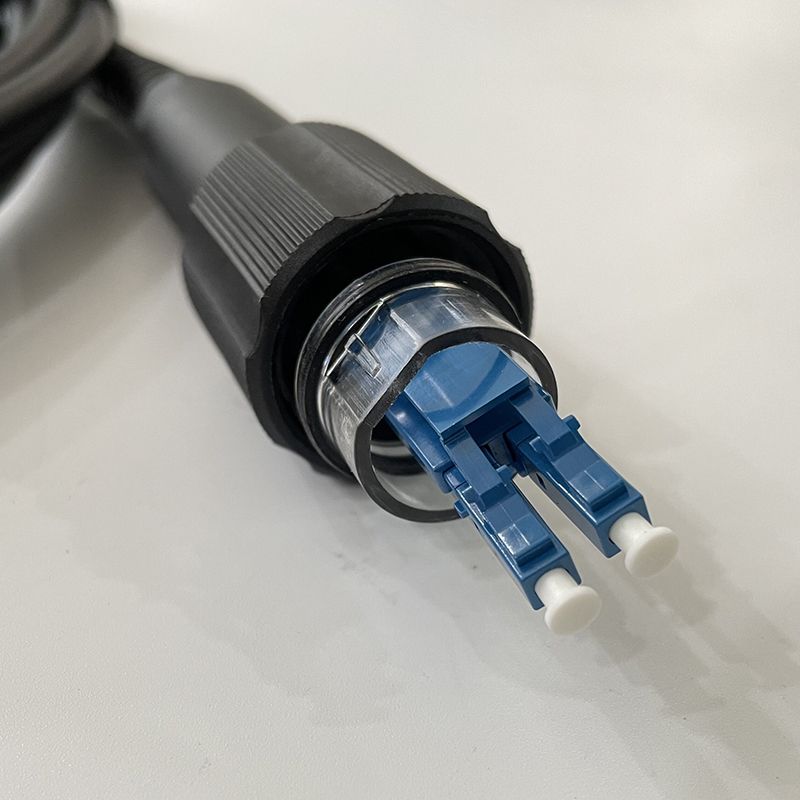

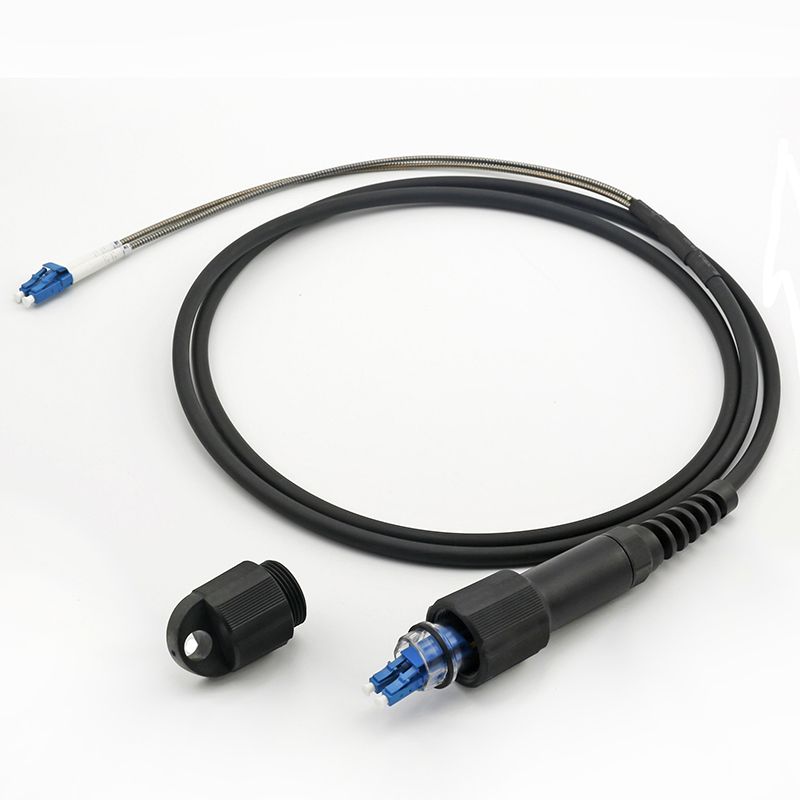

The connectors of Slide-A is Duplex LC and Side B can be LC, SC or FC

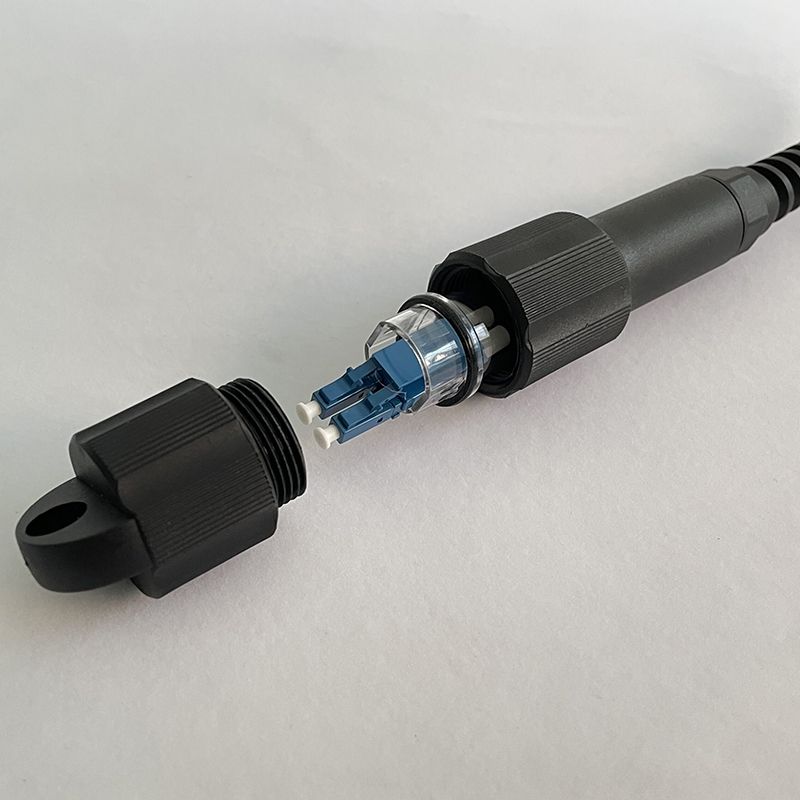

Thread structure guarantees the trusted connection
Application:
Multi-purpose Outdoor
For connection between distribution box and RRH

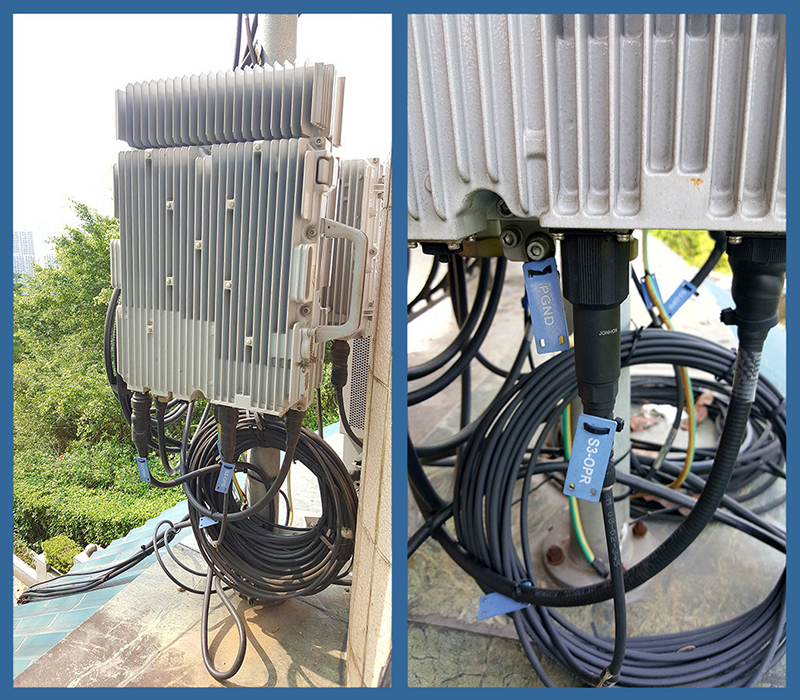

Deployment in Remote Radio Head cell tower applications
No. | Items | Unit | Specification | |
50/125 | ||||
1 | Core Diameter | μm | 50.0±2.5 | |
2 | Cladding Diameter | μm | 124.8±1.0 | |
3 | Cladding Non-Circularity | % | ≤1.0 | |
4 | Core-Cladding Concentricity Error | μm | ≤1.5 | |
5 | Coating Diameter | μm | 245±7 | |
6 | Coating Non-Circularity | % | ≤6.0 | |
7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
8 9 | Bandwidth(min.) | 850nm | MHz·km | 200 |
1300nm | MHz·km | 200 | ||
10 | Attenuation Coefficient | 850nm | dB/km | ≤2.5 |
1300nm | dB/km | ≤0.7 | ||
Items | Specifications | |
Fiber Count | 2 | |
Tight-Buffered Fiber | Diameter | 850±50µm |
Material | LSZH | |
Color | White | |
Simplex Cable | Diameter | 1.9±0.1mm |
Material | LSZH | |
Color | Gray, Orange | |
Filler | Diameter | 1.9±0.1mm |
Material | LSZH | |
Color | Black | |
Strength Member | Kevlar | |
Jacket | Diameter | 7.0 mm |
Material | LSZH | |
Color | Black | |
