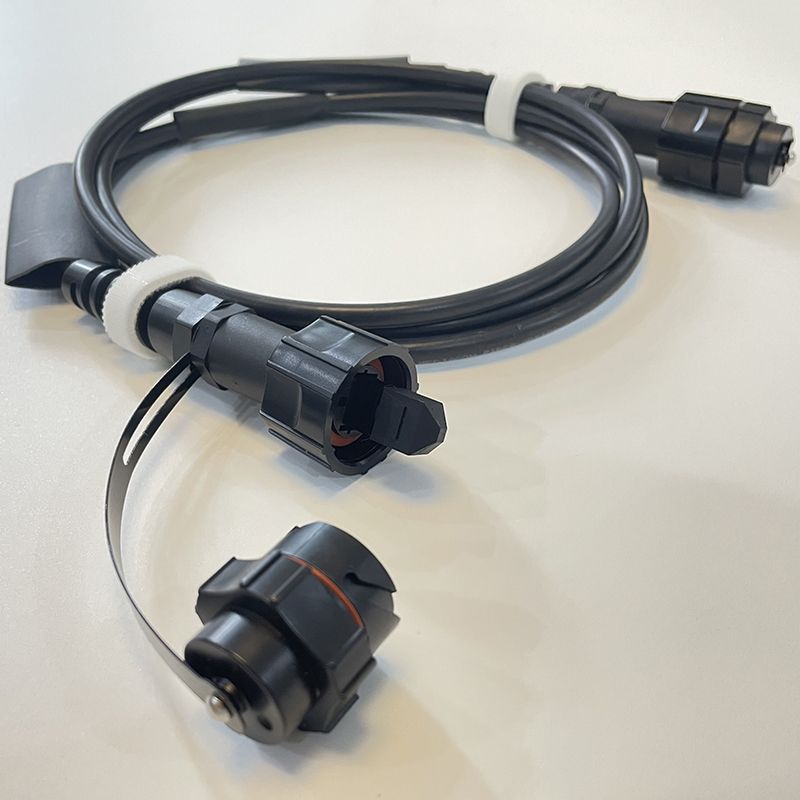

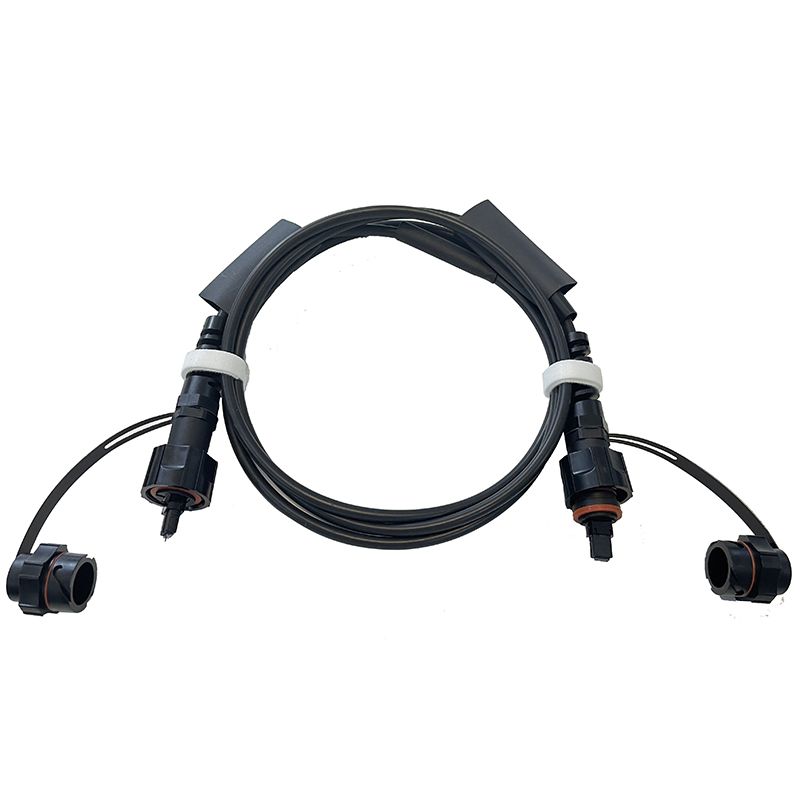

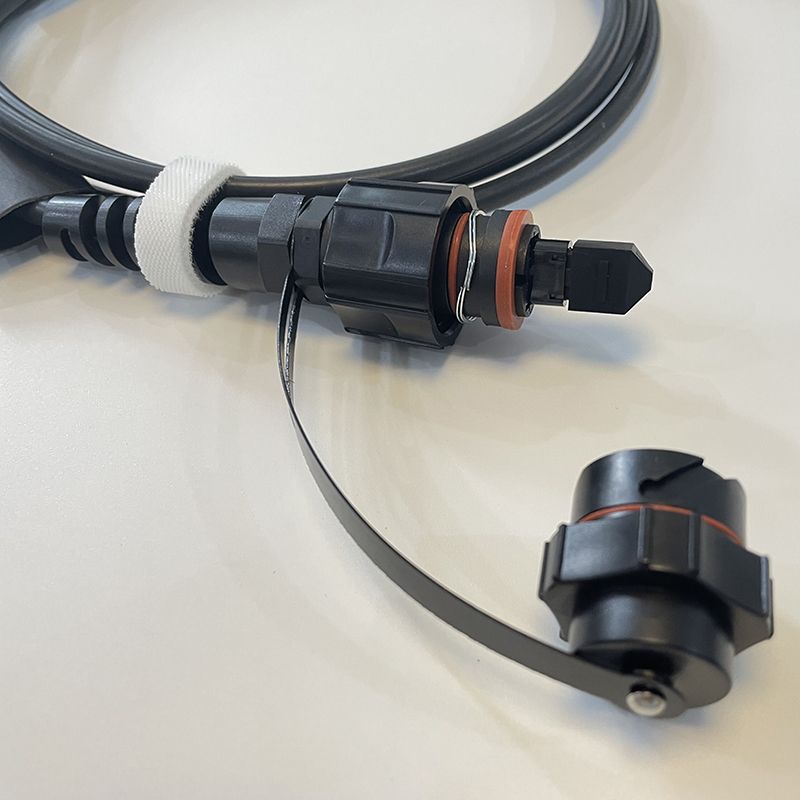

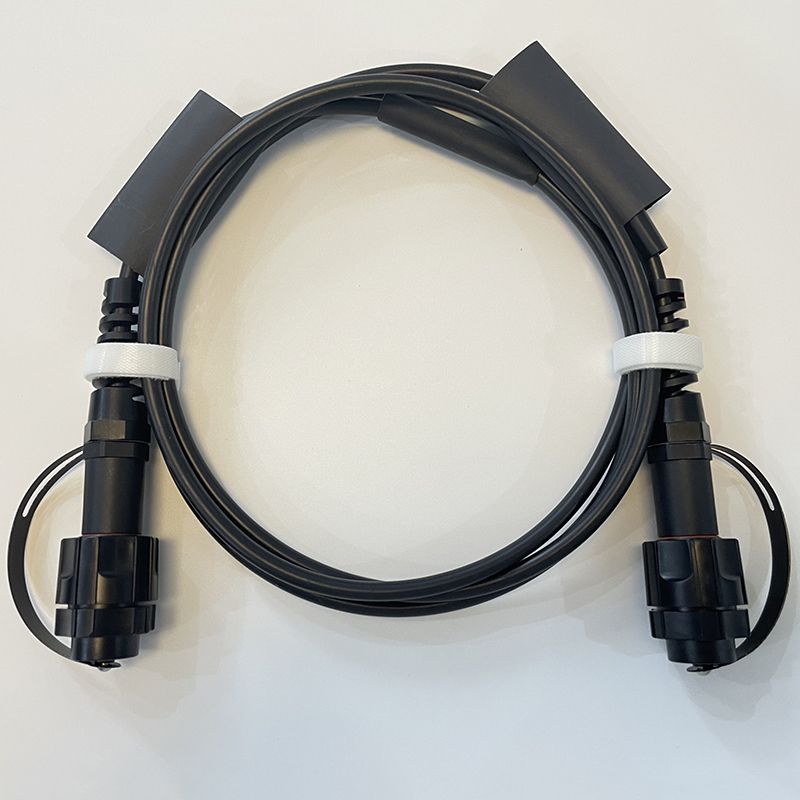

ODVA MPO SM IP67 Waterproof Fiber Optic Patch Cord

Model Number: ODVA MPO Patch cord

Waterproof level: IP67

Connector Type: ODVA MPO (male) to ODVA MPO (Female)

Length: Customized Lengths(1m/2m/3m...+1

Cable Type: 5.0MM or 7.0mm

No. of Fiber: 12/24/48

Single-Mode Fiber: G652D G657A

立即咨询下一个产品

产品描述联系我们

ODVA FTTA Outdoor Optical fiber patch cords one of our hotselling waterproof patch cords. With the continuous development of optical fiber communication technology, 3G commercial trial network, high-speed local area networks and optical access network such as the market that is a sustained manner.ODVA fiber optic cable connector assemblies are rapidly becoming the standard connector interface. This patch cord uses standard size of Duplex LC Connectors,and the outer housing is metal protective PDLC/ODVA device. These patch cords meet with the functions of waterproof, dustproof and are widely used in FTTA, Base station, and the outdoor waterproof condition.

Features

Suitable for use in harsh industrial environment, waterproof and dustproof, in line with IP68 standard;
The design adopts the sealing panel feeding device, which can be easily loaded into the sealing container.
All components are optically tested to ensure high quality;
Single - mode and multi - mode components, can be matched with any type of ordinary optical fiber;
Push-pull type plug and bayonet type mechanical latch are combined to facilitate installation and disassembly.
A wide range of temperatures (-40 to +85 degrees Celsius);

Application
* Outdoor Fiber Optic Transmission
* CATV Networks
* LAN Testing/Measurement Instruments
* FTTA, FTTP, FTTX, WIMAX

Fiber Core	2,4…12
Mode	Singlemode			Multimode
Operating Wavelength(nm)	1310/1550			850/1310
Polishment	UPC	APC		UPC
Insertion Loss(Max.dB)	0.2			0.3
Return Loss(Min.dB)	55		60	35
Mating times	500 Min
Durability(Max.dB)	0.2
Reaptability(Max.dB)	0.5
Operating Temperature(℃)	-40~+85
Storage Temperature(℃)	-40~+85
