Model Number: 7.0 Duplex Round Tight Buffer Armored Cable
Number of Conductors: 2
Number of Conductors: 2
Material: LSZH
fiber type: G652D, G657A, OM2
strength member: Kavlar

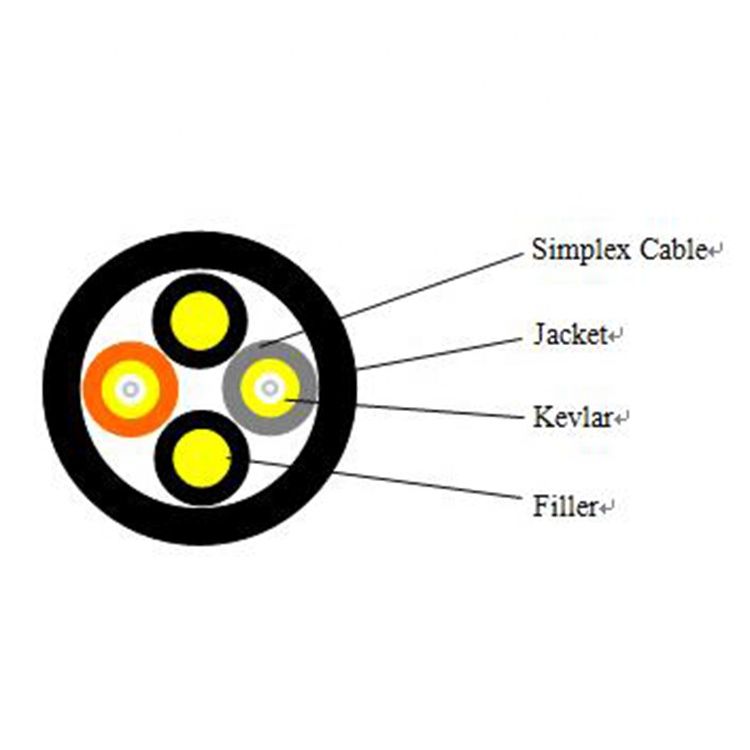

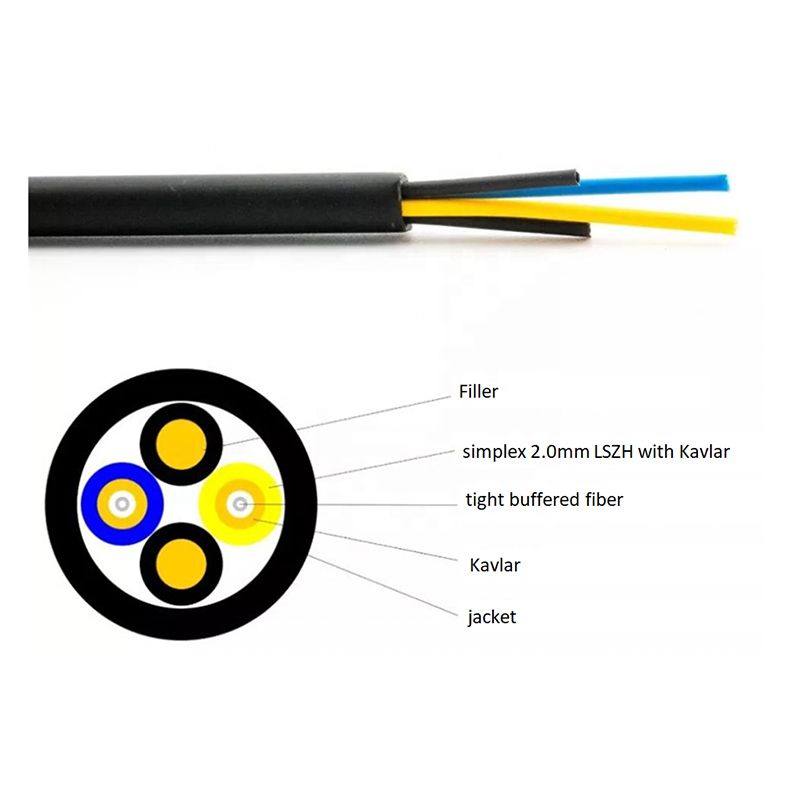

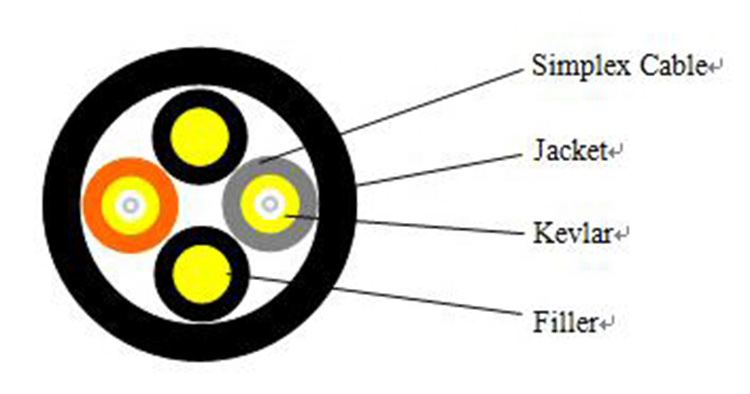

| Items | Specifications | |
| Fiber Count | 2 | |
| Tight-Buffered Fiber | Diameter | 850±50µm |
| Material | LSZH | |
| Color | White | |
| Simplex Cable | Diameter | 1.9±0.1mm |
| Material | LSZH | |
| Color | Gray, Yellow | |
| Filler | Diameter | 1.9±0.1mm |
| Material | LSZH | |
| Color | Black | |
| Strength Member | Kevlar | |
| Jacket | Diameter | 6.8~6.9mm |
| Material | LSZH | |
| Color | Black | |
| Items | Unite | Specifications |
| Tension(Long Term) | N | 200 |
| Tension(Short Term) | N | 400 |
| Crush(Long Term) | N/10cm | 500 |
| Crush(Short Term) | N/10cm | 1000 |
| Min. Bend Radius(Dynamic) | mm | 20D |
| Min. Bend Radius(Static) | mm | 10D |
| Operation Temperature | ℃ | -20~+60 |
| Storage Temperature | ℃ | -20~+60 |
