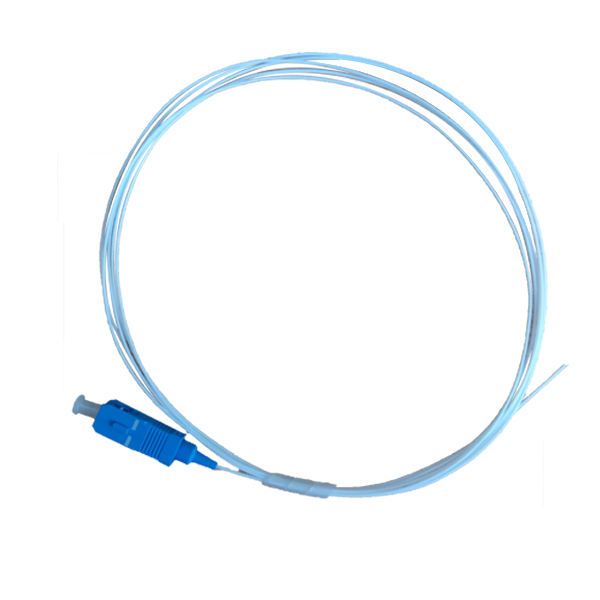

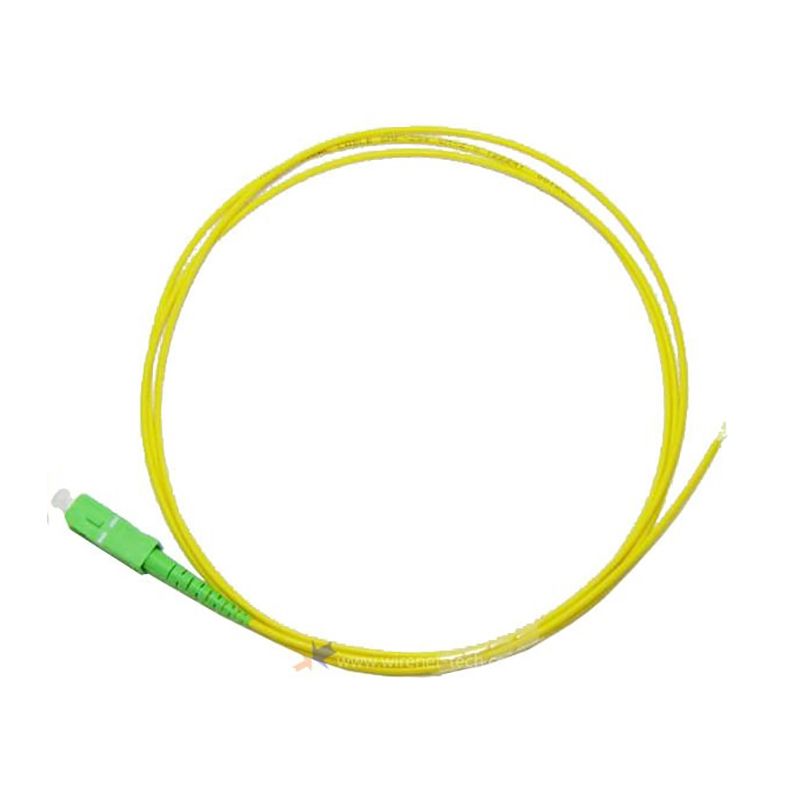

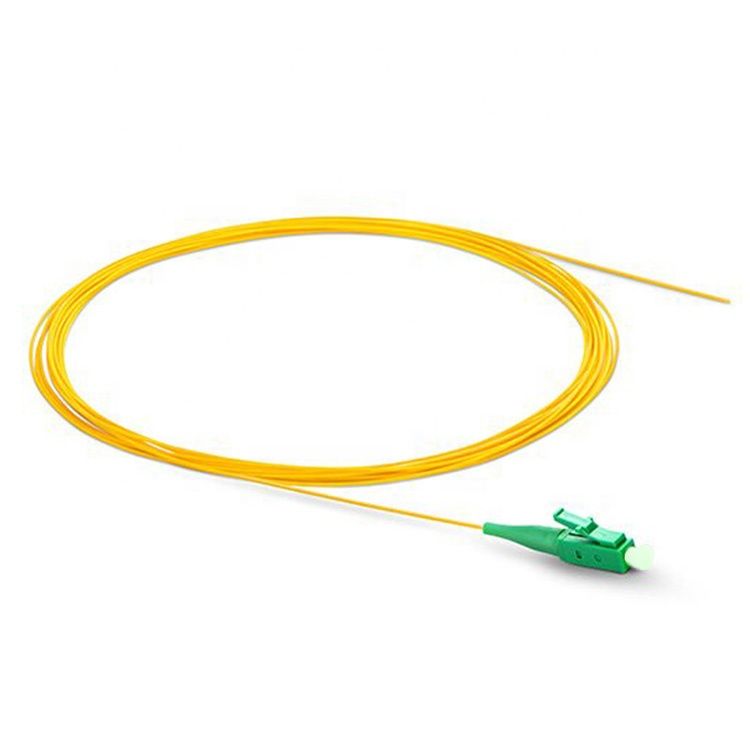

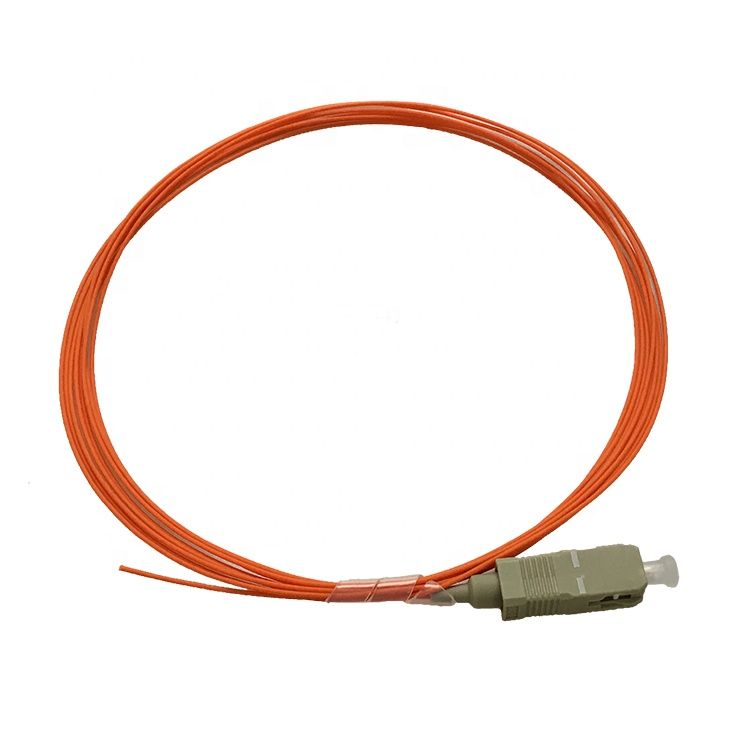

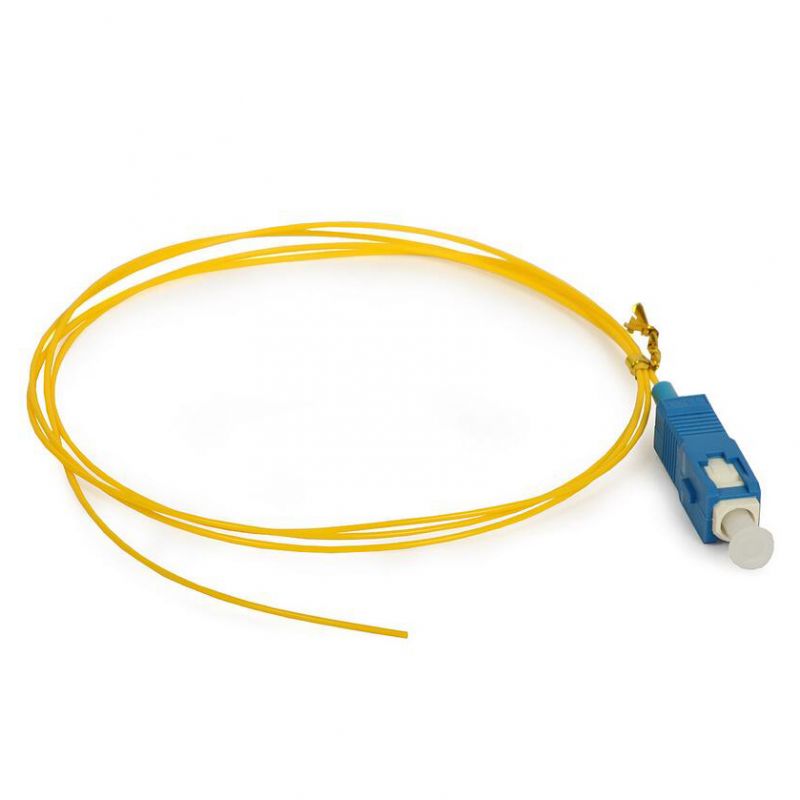

Fiber Optic Pigtail SM SX assemblyed with SC FC ST LC connector

Cable Diameter: 0.9mm,2.0mm,3.0mm

0.9mm Buffer: tight buffer, easy loose, semi-tight buffer

Connector: LC/SC/FC/ST/E2000/MTRJ/SMA

Polishing way: APC/UPC

Fiber type: SM 9/125, MM 50/125, 62.5/125, OM3,OM4

Sheath Material: PVC, LSZH

Length: XX Meter

立即咨询下一个产品

产品描述联系我们

Application:

1,CATV;
2,Active device interface;
3,Telecommunication networks;
4,Gigabit Ethernet; Interconnection for O/E modules; 5,Data processing networks; Industrial and medical; 6,Premise installation;
7,Optical switch inter-frame connection;
8,Asynchronous Transmission Mode;

Characteristics:

1,Low insertion and back reflection loss.
2,Good exchangeability.
3,Good durability.
4,High temperature stability.
5,Standard: TIA/EIA 568-A compliant.

Specification

Items	Single mode			Multimode
	PC	UPC	APC	62.5/125		50/125	50/125 10G/40G
Insertion Loss	<0.2dB			<0.3dB
Return Loss	≥45dB	≥50dB	≥60dB	≥35dB
Durability	<0.1dB typical change, 500 matings
Operation temperature	-40~+75(℃)
Ferrule hole size	125.0+1/-0um, Conentricity:≤1um				125um,Conectricity:1≤3um
	125.0+1/-0um, Conentricity:≤1um				127um,Conectricity:1≤3um
	125.5+1/-0um, Conentricity:≤1um				128um,Conectricity:1≤3um
	126.0+1/-0um, Conentricity:≤1um
