Application:
1. CATV;
2. Active device interface;
3. Telecommunication networks;
4. Gigabit Ethernet; Interconnection for O/E modules;
5. Data processing networks; Industrial and medical;
6. Premise installation;
7. Optical switch inter-frame connection;
8. Asynchronous Transmission Mode;
Characteristics:
1. Low insertion and back reflection loss.
2. Good exchangeability.
3. Good durability.
4. High temperature stability.
5. Standard: TIA/EIA 568-A compliant
12 Color Pigtail Specification
| Items | Single mode | Multimode | |||||
| PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G/40G | ||
| Insertion Loss | <0.2dB | <0.3dB | |||||
| Return Loss | ≥45dB | ≥50dB | ≥60dB | ≥35dB | |||
| Durability | <0.1dB typical change, 500 matings | ||||||
| Operation temperature | -40~+75(℃) | ||||||
| Ferrule hole size | 125.0+1/-0um, Conentricity:≤1um | 125um,Conectricity:1≤3um | |||||
| 125.0+1/-0um, Conentricity:≤1um | 127um,Conectricity:1≤3um | ||||||
| 125.5+1/-0um, Conentricity:≤1um | 128um,Conectricity:1≤3um | ||||||
| 126.0+1/-0um, Conentricity:≤1um | |||||||

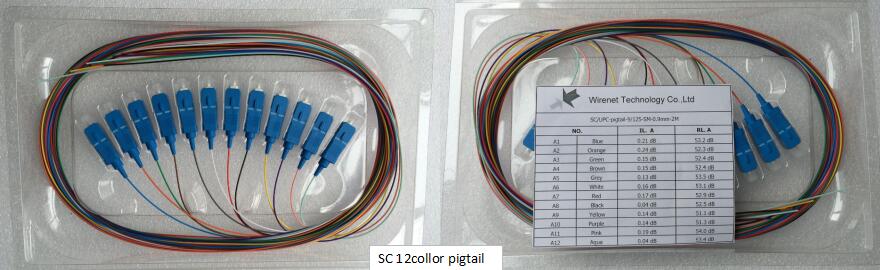

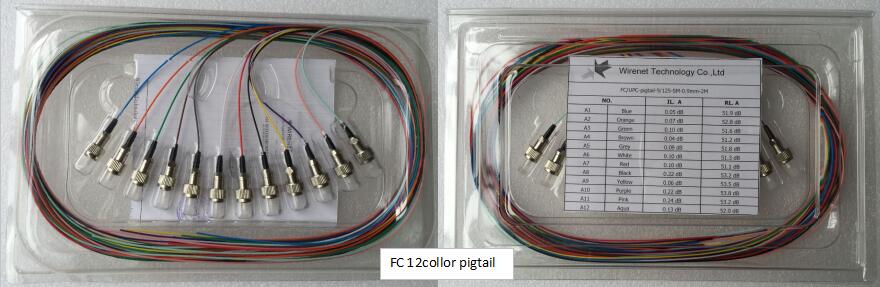

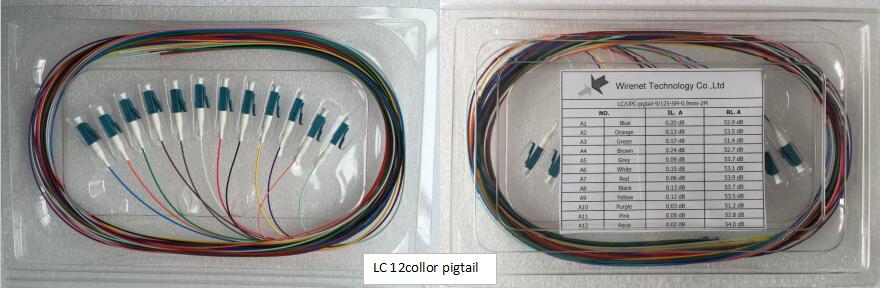

12 Color Pigtail Use Sence Display
 |  |  |
12 Color Pigtail Use Sence Display Ordering Information
Cable Diameter: 0.9mm
0.9mm Buffer: tight buffer, easy loose, semi-tight buffer
Connector: LC/SC/FC/ST/E2000/MTRJ/SMA
Polishing way: APC/UPC
Fiber type: SM 9/125, MM 50/125, 62.5/125, OM3,OM4
Sheath Material: PVC, LSZH
Length: XX Meter
