Model Number: WT-PCD380
Product size: 430*360*460 mm
The disc plate size: 350mm
Trunnion: 200mm
The disc plate width: 180mm
Packing size: 470*380*510mm(The wooden case)
Gross weight: 7KG
The diameter: 3.0-10.0mm
Capacity: 1000,550,300,250,180,130,100,80M
Note: Plastic disc body, adjustable rod, with pulley

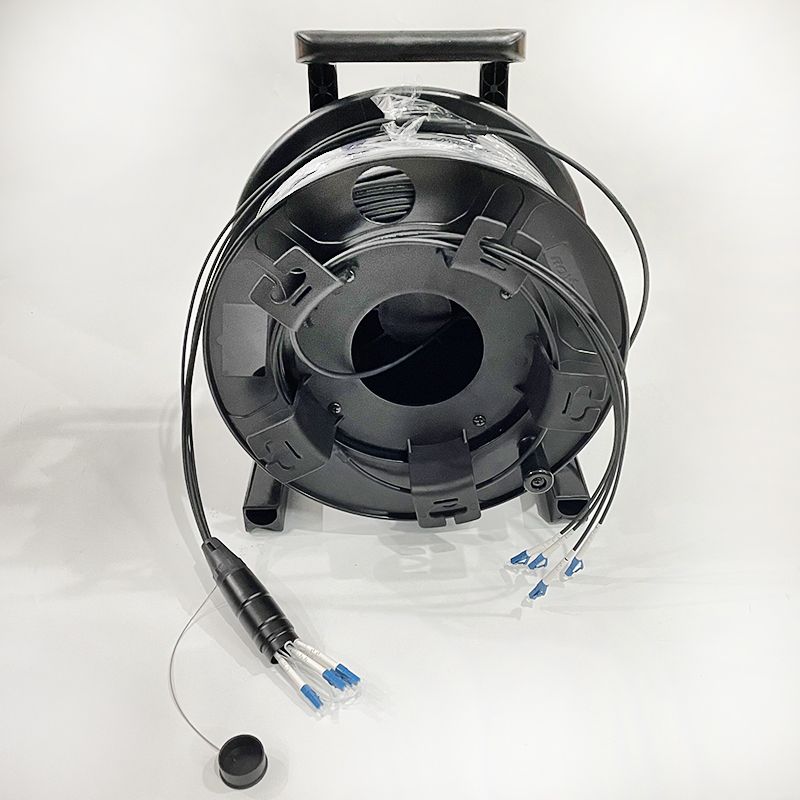

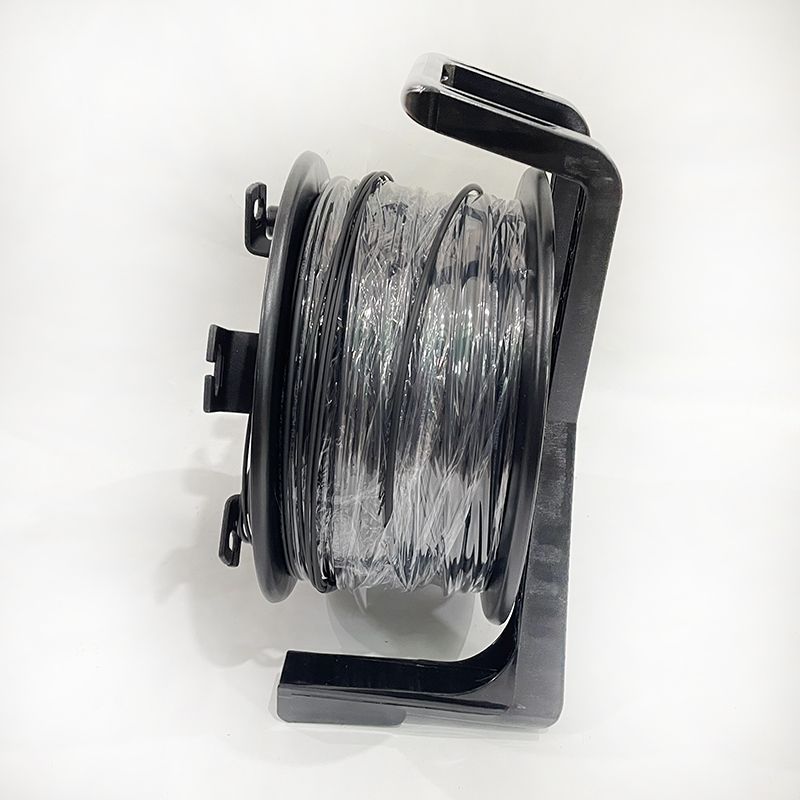

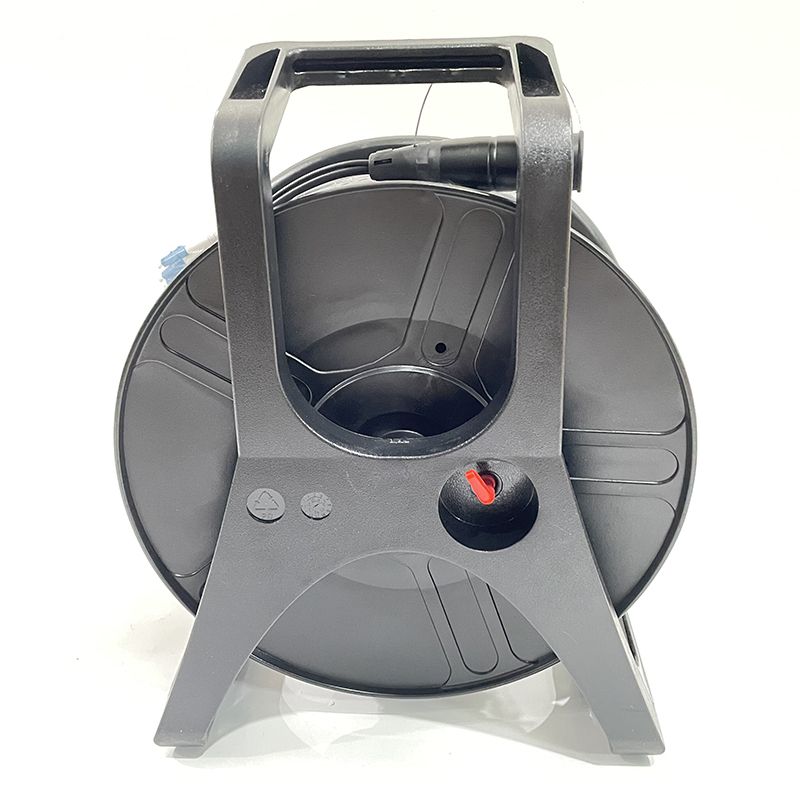

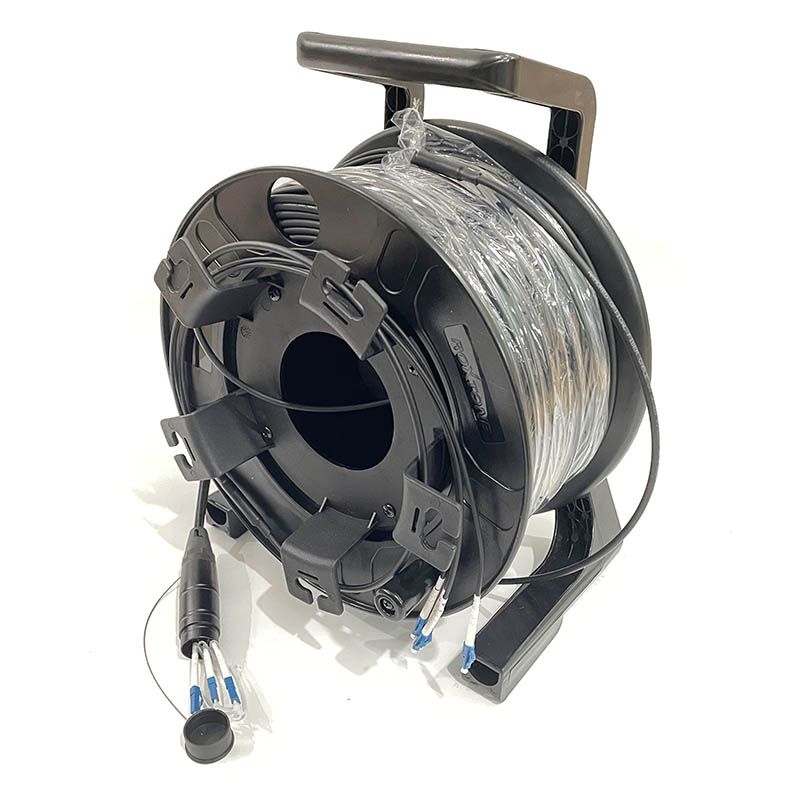

Portable field deployable tactical fiber optic cable reel has been optimized for using in harsh environments where mobility and rapid deployment of the cable are very essential. This assembly is specifically designed for field deployable applications. Particularly, it can broadcast the communication for film crews to connect HDTV camera equipment with central broadcasting trucksabout events like music concerts and sporting events. This deployable assembly includes a marcaddy drum, breakout modules with ruggedised tails at each end, choice of connectors, tactical cable and a high durability protective conduit IP rated pulling sock.
Features
1. Separate connector compartment for secure deployment
| Product size | 430*360*460mm |
| The disc plate size | φ350mm |
| Trunnion | φ200mm |
| The disc plate width | 180mm |
| Packing size | 470*380*510mm(The wooden case) |
| Gross weight | 7KG |
| The diameter | 3.0-10.0mm |
| Capacity | 1000,550,300,250,180,130,100,80M |
| Color | Black |
| Note | Plastic disc body, adjustable rod, with pulley |
