Fiber Optic Management Cable Reel Spool

Fiber Optic Management Cable Reel Spool

Model Number: WTTC-05

Product size: 530*460*320mm

The disc plate size: 460mm

Trunnion: 220mm

The disc plate width: 220mm

Packing size: 550*480*340mm(The wooden case)

Gross weight: 18KG

The diameter: 3.0-10.0mm

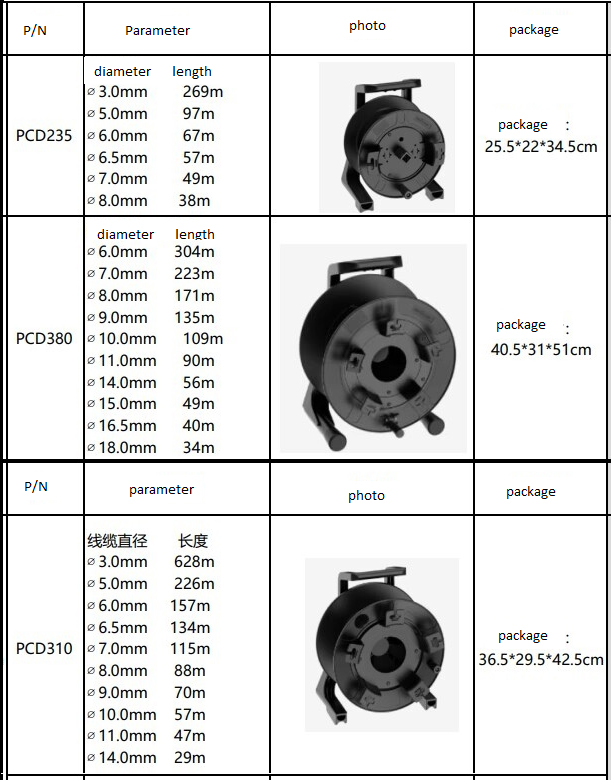

Capacity: 1800,1000,600,450,320,250,200,160M


分享:

产品描述 联系我们

 The mobile pre-terminated armoured cable reel is developed for temporary field deployment where fiber connections are required. It comes in a portable cable reel for ease of transportation and deployment .  The armoured  cable  is  flexible  and is able to withstand multiple usages without kinks. One end of the cable is fixed to the reel while the other end is coiled freely for patching to the equipments. Generally these will be customized base on user’s requirement so there are  options of  various cable and connector type with any cable length  which then will determine the size of the reel.

Fiber Optic Management Cable Reel Spool

Features

1. Using flexible steel armour to protect optical fiber, making sure minimum damage.
2. Prevents damage from improper twisting, high resistance to crush and high tensile strength.
3. Mechanical protection against pest and rodent.

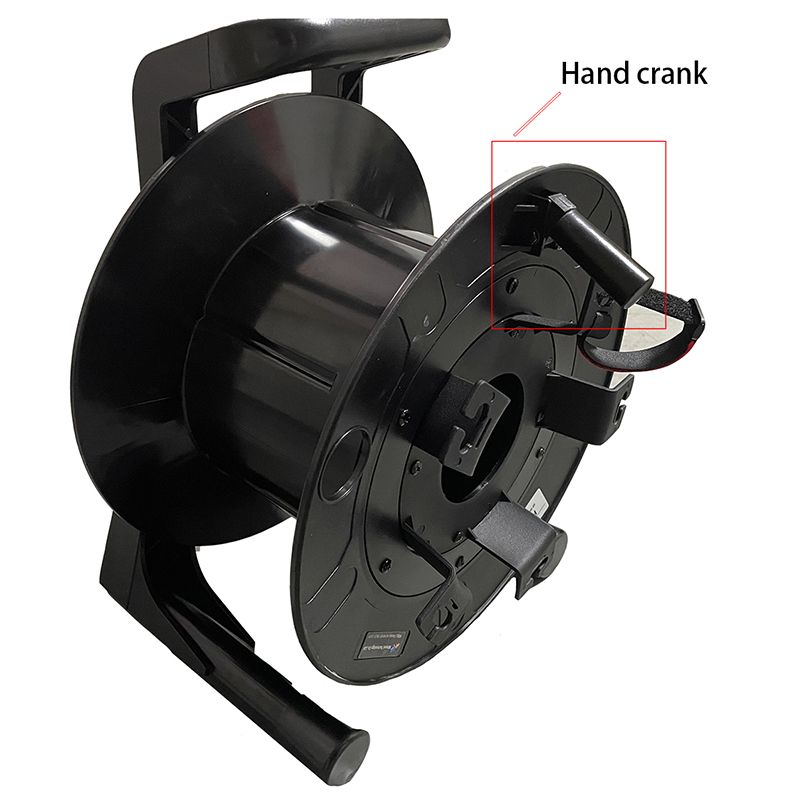

4. Rotating reel for deploying and retracting of cable and comes with braking system.
5. Various connectors are available such as FC/SC/ST/MU/LC/PDLC/ MPO.
6. Various cable are available, such CPRI cale, TPU Cable, Tactical cable,multicore indoor
/outdoor cable,etc.

Application

• Clean multimode and single-mode (angled) MPO connectors
• Clean MPO connectors in adapters
• Clean exposed MPO ferrules
• Great addition to cleaning kits

• Clean MPO connectors in adapters
• Clean exposed MPO ferrules
• Great addition to cleaning kits

Fiber Optic Management Cable Reel Spool
