Model Number: Back Carry type
Product size: 440*450(high)*370 mm
The disc plate size: 280mm
Trunnion: 74mm
The disc plate width: 300mm
Packing size: 510*460*430mm(The wooden case)
Gross weight: 16KG
The diameter: 3.0-9.0mm
Capacity: 1800,1000,500,450,320,250,200M

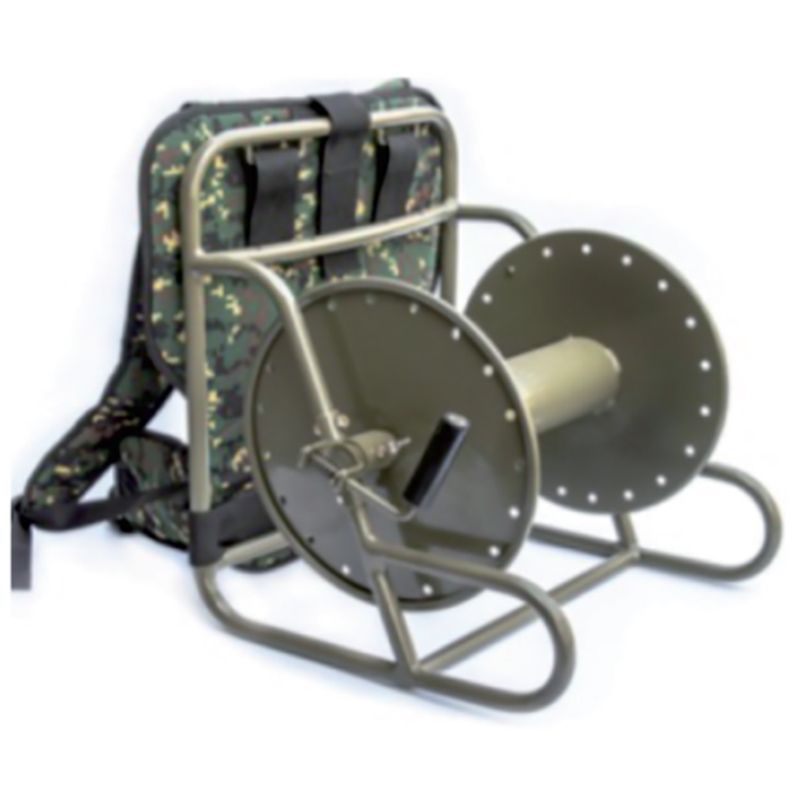

Backpack Rugged Design Tactical Fiber Cable Reel has been optimized for using in harsh environments where mobility and rapid deployment of the cable are very essential. This assembly is specifically designed for field deployable applications. it can broadcast the communication for film crews to connect HDTV camera equipment with central broadcasting trucks like music concerts and sporting events.
Features
1. Separate connector compartment for secure deployment
| Product size | 450*440(high)*370mm |
| The disc plate size | φ280mm |
| Trunnion | φ74mm |
| The disc plate width | 300mm |
| Packing size | 510*460*430mm(The wooden case) |
| Gross weight | 16KG |
| The diameter | 3.0-9.0mm |
| Capacity | 1800,1000,500,450,320,250,200M |
| Note | Metal body ,with strap, hand bar, pulling rod, wheels and dual reel |
