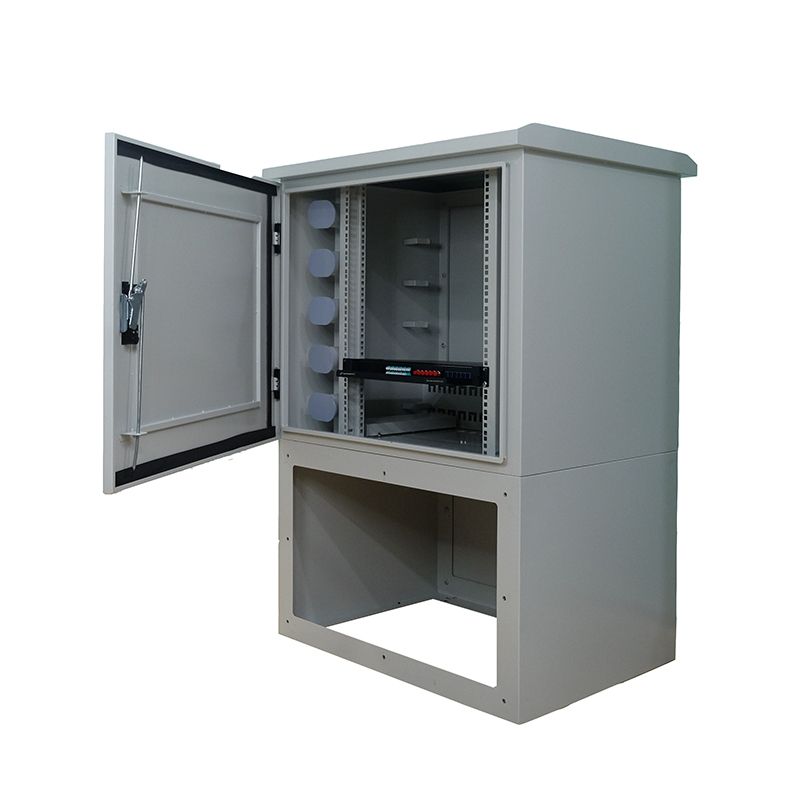

Network Storage Fiber Optical Distribution Cabinet for Ftth Outdoor Telecom

Model Number: WT-ODF-OC

Performance: outdoor optical equipment

Material: SMC or Cold-rolled steel

Function: direc-connection

Fiber Count: 288 core

Installation: Wall mount

Features: high intensity and anti-erosion

Application: strap-shaped and non-strap shaped

立即咨询下一个产品

产品描述联系我们

     Fiber distribution cabinet is used outdoors trunk interface device connecting to the cable and distribution cable,and can provide the connection between backbone cables and wiring cable.
     It can achieve adirect connection and cross-connect between the trunk cable and wiring cable with the function of cable fixing , the connection of metal components and high-voltage protection grounding devices,the protection of optical fiber connector,savings and distribution of the remaining long fiber.

Features

 * Able to counter abrupt climate change and extreme environment
 * Capacity can be flexibly customized as required
 * Installation is quick and convenient
 * Built-in direct splice unit is capable for providing direct connection function.
 * Perfect design of fiber wiring routing could facilitate management and maintenance of fibers
 * With secure and reliable fastening and grounding protection devices for the optic fiber
 * Applicable to strap-shaped and non-strap shaped fiber

Specification

Product		Outdoor cabinet
Color		RAL7035
Material		Cabinet body is 1.2mm cold-rolled steel,the column is 1.5mm cold-rolled steel
others		The front door is equipped with a sealing rubber strip, and the rain-proof lock can effectively block the infiltration of rainwater
