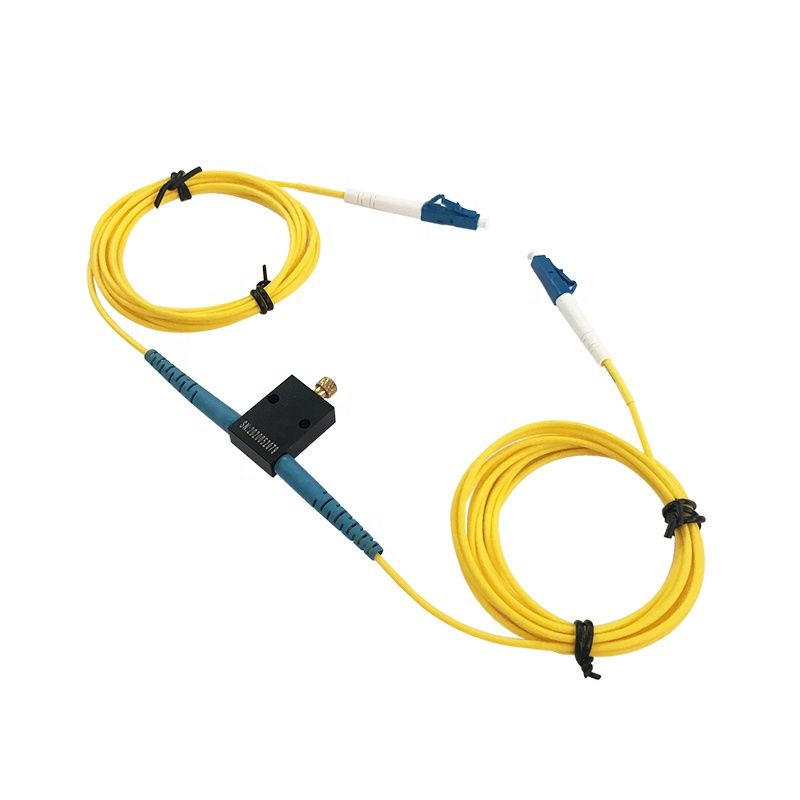

LC UPC Connector Fiber Optic Variable Attenuator

Model Number: variable attenuator

Operating Wavelength: 1310 or 1550 or 1490 or 1585 nm

Bandwidth: ±40 nm

Insertion Loss: Typ: 0.8 Max_0.9 dB

Attenuation range: 0.8~60dB

PDL: ≤0.1dB

Attenuation Precision: ≤0.02

Transmission Power: ≤500mw

分享：

立即咨询下一个产品

产品描述联系我们

Application
Optical passive component test
Optics lab use
Fiber optic Systems Testing

Operating Wavelength	nm	1310 or 1550 or 1490 or 1585
Bandwidth	nm	±40
Insertion Loss	dB	Typ:0.8 Max:0.9
Attenuation range	dB	0.8~60
PDL	dB	≤0.1
Return Loss	dB	≥60
Attenuation Precision	dB	≤0.02
Fiber Type		SMF-28e
Connector Type		FC SC LC customization is available.
Fiber Length	m	≥1.0
Transmission Power	mw	≤500
Operation Temperature	℃	-20~+70
Storage Temperature	℃	-40~+85
Dimension	mm	26x16x8
