Application:
Power level adjustment of optical fiber communication networks.
Characteristics:
1. plug-in type multiple configurations
2 Excellent operational gualities
3. Maxmum input power : 250mW
4. Please contact us if you have any requests. Hirose will offer excellent solutions to meet your reguirements

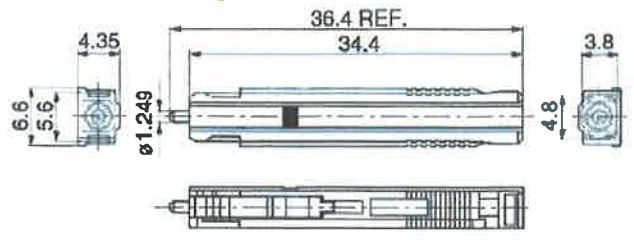

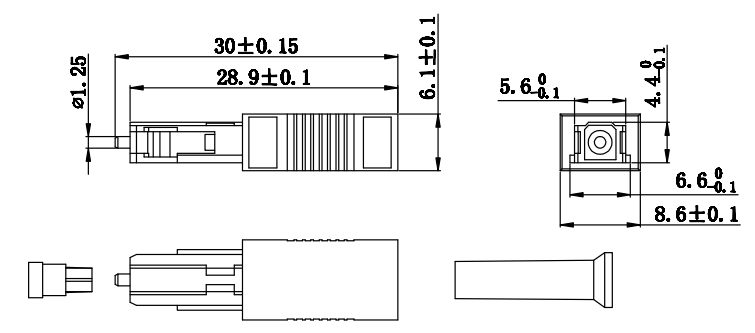

Dimensions and design
Normal structure
Specifications
Attenuation values | Sing mode(9/125) 1dB,2dB…..25dB |
Operating wavelength | 1260-1620nm |
Return loss | UPC >=55dB |
Attenuation tolerance 1dB-10dB | +/- 0.5dB |
Attenuation tolerance 12dB-25dB | +/- 10% |
Durability | more than 1000 mating |
Temperature cycling
| -40 to 80°C |
