LC Fiber Optic Adapter

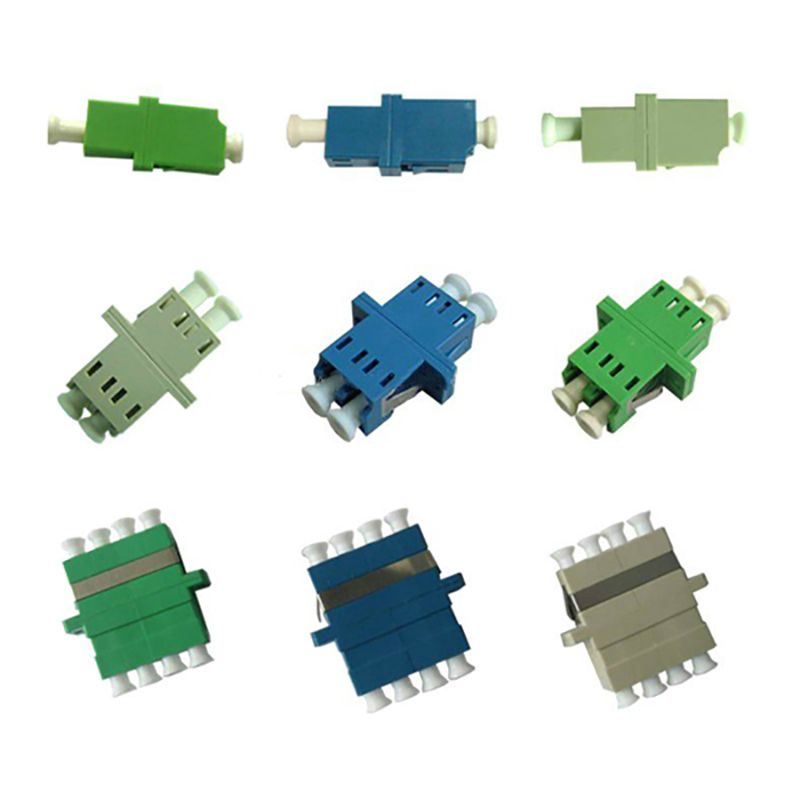

LC connectors are one of the most popular small form factor connectors which is along with LC Adapters, are widely used in high density applications.WIRENET LC couplers housing are manufactured in blue,Beige,Green,Auqa and violet in simplex/duplex and Quad style

Application:

1. CATV; Telecommunication networks;
2. Test equipment; Metro;
3. Local Area networks; Data processing networks;

Characteristics:

1. Small Form Factor – with a footprint of SC simplex adapter
2. Conform to ANSI/TIA/EIA-568-C.3 standard specifications and FOCIS5
3. Senior / Junior type ?
4. High performance Single-Mode and Multi-Mode adapters ?
5. High system durability, stability and repeatability

Specification:

Ordering Choices

Housing color: Beige/Blue/Green/Aqua/ Purple/Metal

Sleeve: ceramic sleeve;

Channel: 1core/2core/4core

Application: LC/PC  LC/APC

Flange : With flange/Without flange

Body: two body/ one body

Material:PEI/PC

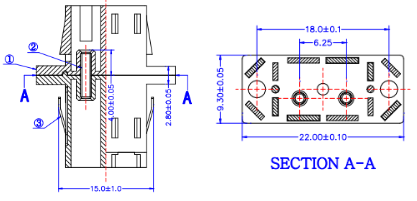

1. Drawing for 1core( Simplex)

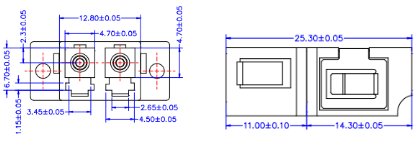

2. Drawing for 2core( duplex) SC footprint B

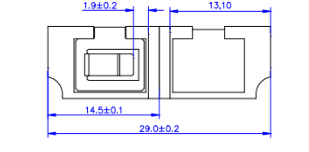

3. Drawing for 2core( duplex) SC footprint A

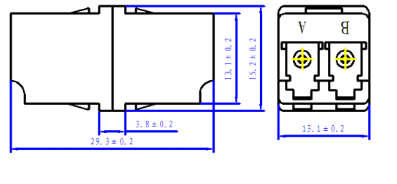

4. Drawing for Duplex Receptacle

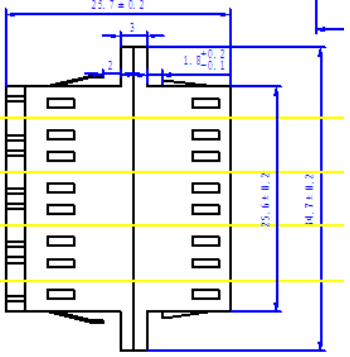

5. Drawing for 4core (QUAD) with flange
