Application:
1. Adopted to Outdoor distribution.
2. Suitable for aerial pipeline laying method.
3. Long distance and local area network communication.
Characteristics:

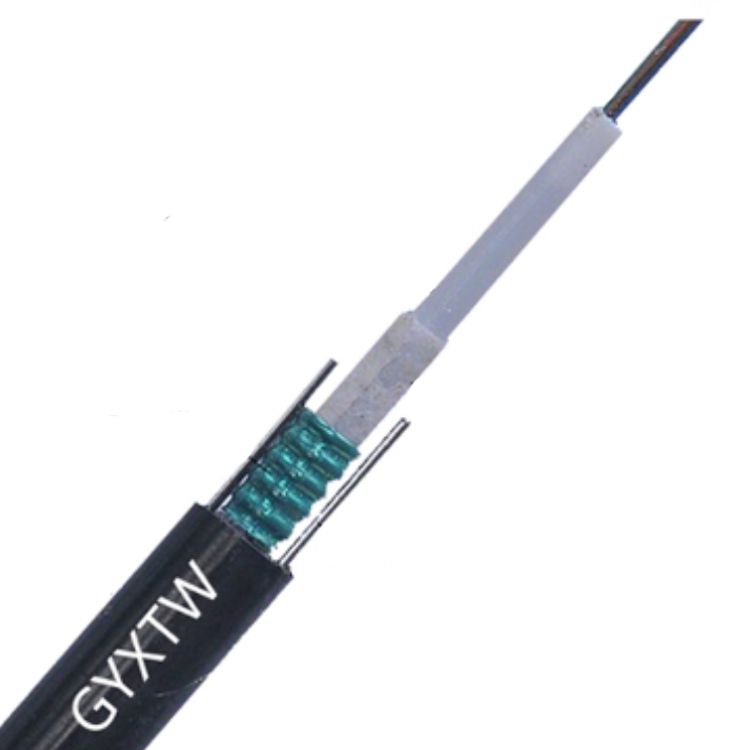

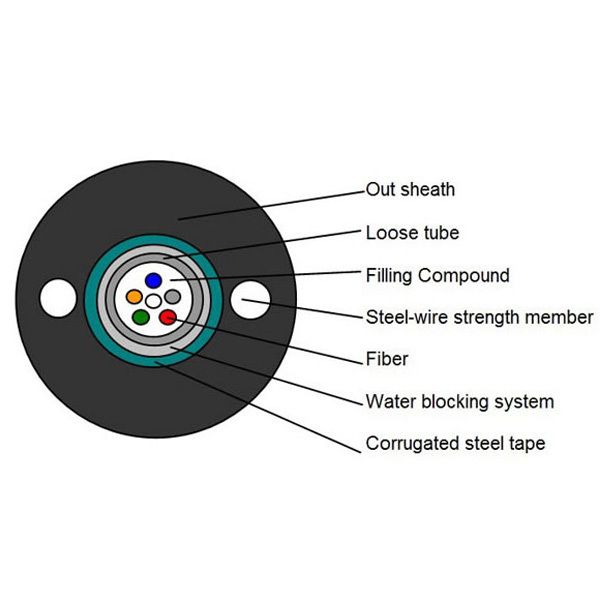

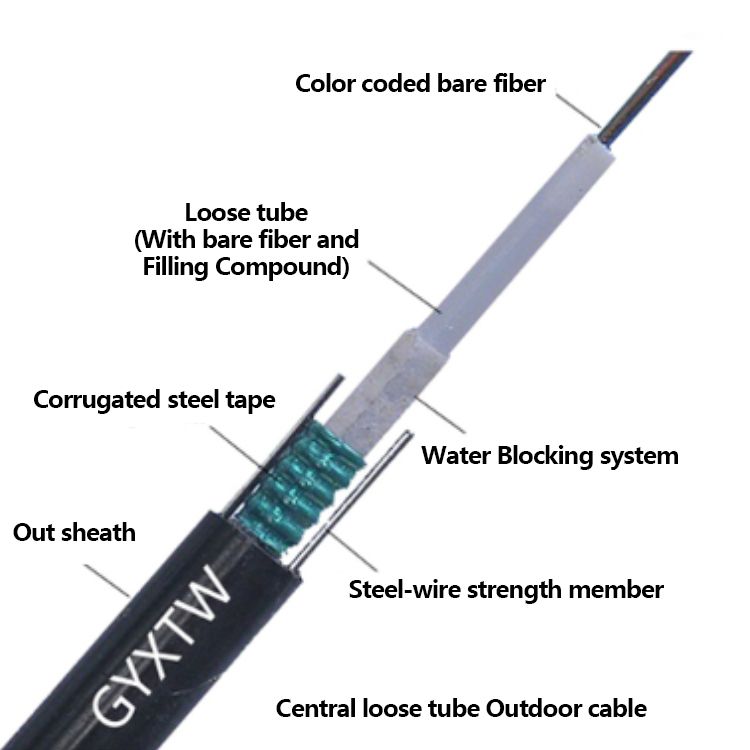

1. Steel-wire parallel member.filler protect tube fiber steel
2. tape amored.
3. Excellet mechanical and environmental performance.
4. Compact structure light weight.
5. Can be installed conveniently and operated simply.
Technical Parameters:
| CableCount | Outsheath Diameter | Weight | Minimumallowable Tensile Strength（N） | Minimumallowable Crush Load (N/100nm) | Minimum Bending Radius(MM) | Storage Temperature | |||
| (MM) | (kg) | Short term | Long term | Short term | Long term | Short term | Long term | (℃) | |
| 2-12 | 8.3 | 78 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |

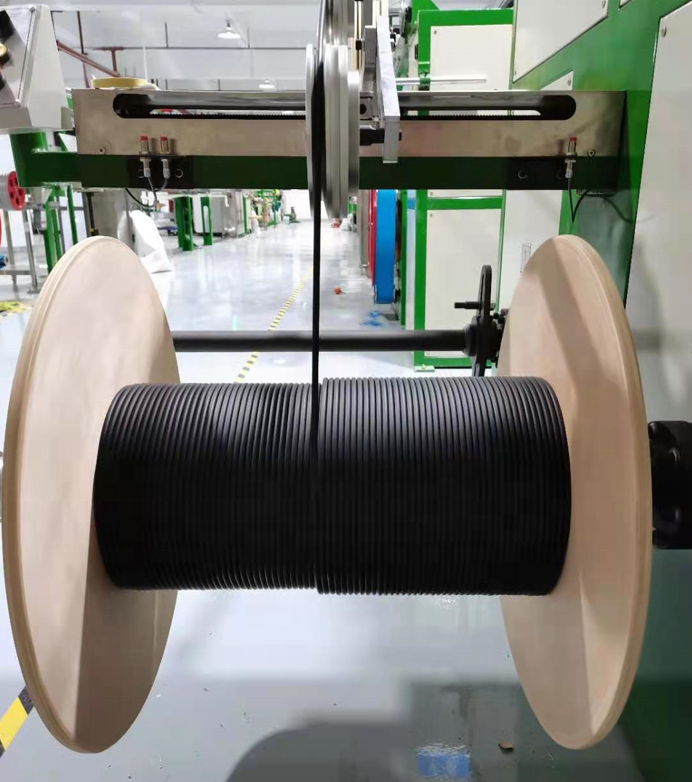

Packing Information
| Model No. | OD(mm) | Km/Reel | N.W./Reel(kg) | Reel Size(kg) | Weight for Package by Drum (kg) | Weight for Package by Polywood (kg) |
| GYXTW | 8.0 | 1 | 72 | 55*75 | 103 | 100 |
| 2 | 144 | 55*75 | 175 | 172 | ||
| 3 | 216 | 55*100 | 276 | 260 | ||
| 4 | 290 | 55*110 | 352 | 340 | ||
| 5 | 360 | 55*120 | 430 | 420 |
Remark:
Package by Drum needs to be fumigated or provide fumigation certificate when exporting
While, package by Polywood can be exported directly.
