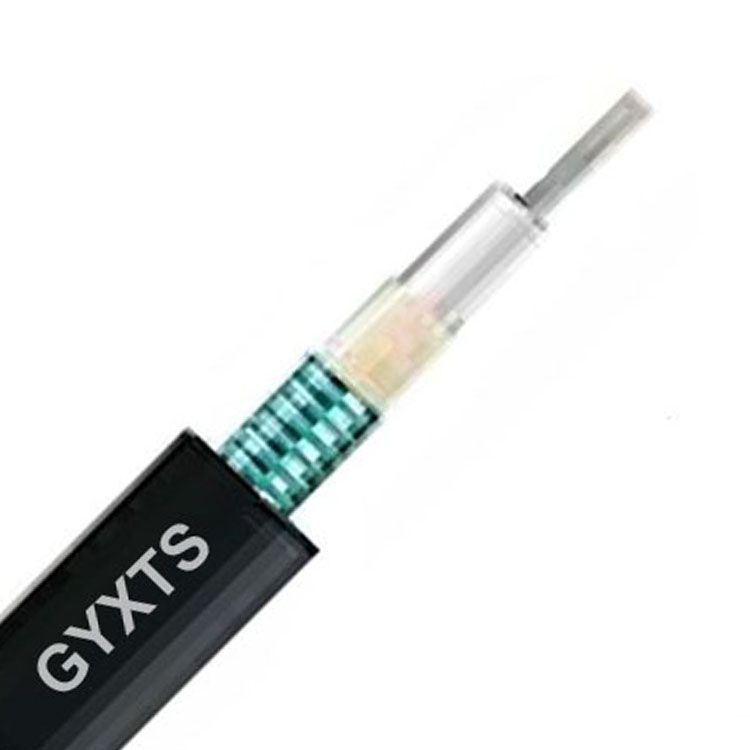

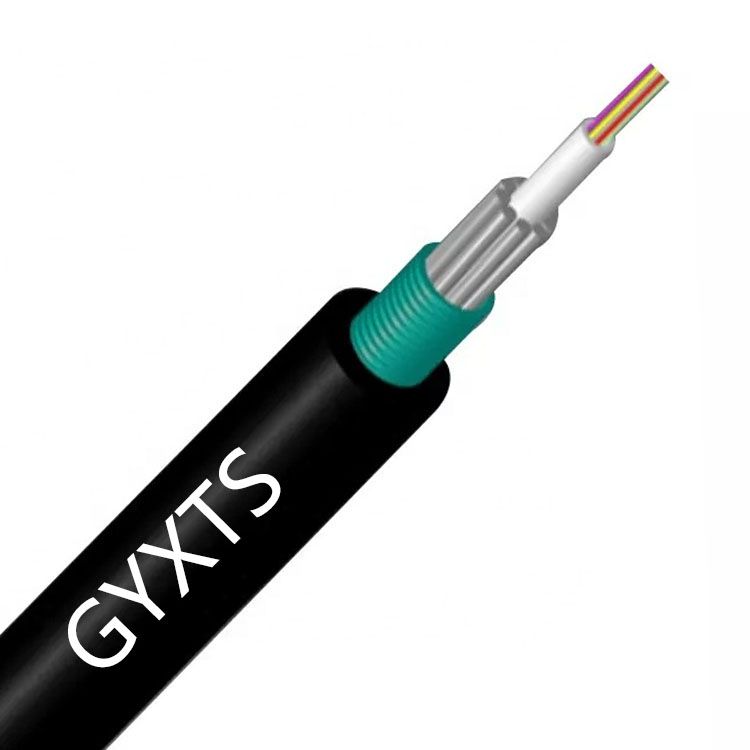

Model Number: GYXTS
Number of Conductors: ≥ 10
Strength number: Corrugated Steel
Temperature range: -20°~60°C
GYXTS Outdoor Fiber Optic Cable, Outdoor Fiber Optic Cable.fiber optic cable outdoor, optic fiber cable outdoor, outdoor optical fiber cable, outdoor fiber optic cable, outdoor cable, fiber optic outdoor, outdoor fiber cable, cable outdoor, optical outdoor cable lc, 100m outdoor fiber optic, outdoor 2 core fiber optic cable, 8 core fiber optic cable outdoor, indoor outdoor fiber cable.
Application:
1. Adopted to Outdoor distribution.
2. Suitable for aerial duct and buried method.
3. Long distance and local area network communication.
Characteristics:
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis sistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
5. PE sheath protects cable from ultraviolet radiation
6. Loose tube filling compound and 100% cable core filling
Technical Parameters
| CableCount | Outsheath Diameter | Weight | Minimumallowable Tensile Strength（N） | Minimumallowable Crush Load(N/100nm) | Minimum Bending Radius(MM) | |||
| (MM) | (kg) | Short term | Long term | Short term | Long term | Short term | Long term | |
| 2-12 | 7.4 | 48 | 3000 | 1000 | 1500 | 500 | 20D | 10D |
Packing Information
| Model No. | OD(mm) | Km/Reel | N.W./Reel(kg) | Reel Size(kg) | Weight for Package by Drum (kg) | Weight for Package by Polywood (kg) |
| GYXTS | 7.4 | 1 | 70 | 55*75 | 100 | 98 |
| 2 | 140 | 55*75 | 170 | 170 | ||
| 3 | 210 | 55*100 | 270 | 258 | ||
| 4 | 280 | 55*110 | 350 | 335 | ||
| 5 | 350 | 55*120 | 425 | 415 |
Remark:
Package by Drum needs to be fumigated or provide fumigation certificate when exporting
While, package by Polywood can be exported directly.
