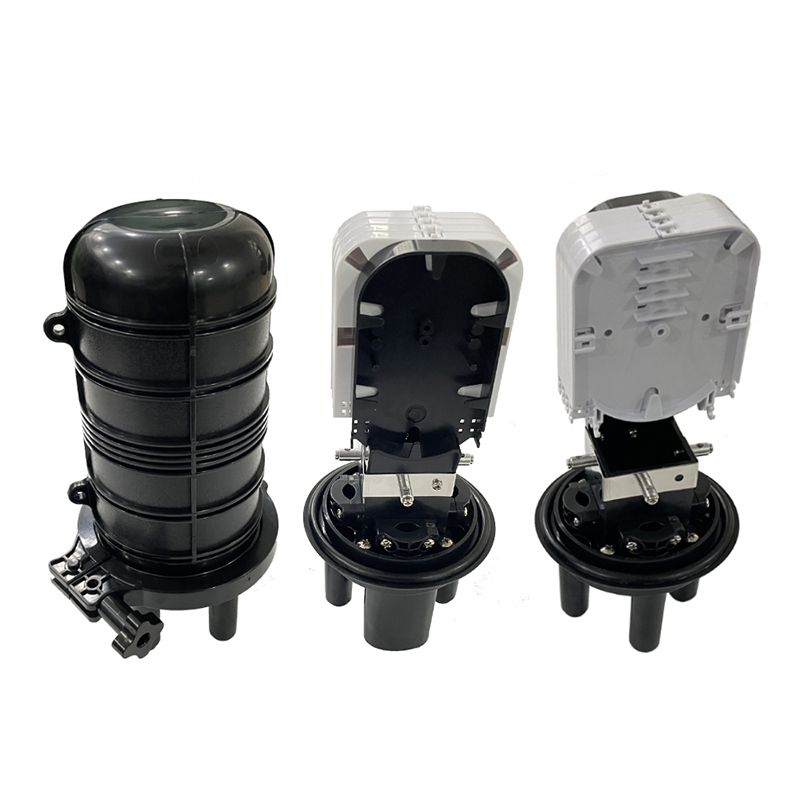

48 core Mini Dome Optical Fiber Splice Closure

48 core Mini Dome Optical Fiber Splice Closure

Model Number: 48 core Dome Splice Closure

Cable entry ports: 3 round port + 1 oval port

Max. splice tray / Max. Capacity: 4 (12core/tray) / 48core

Sealing structure: Heat shrinkable sealing

Waterproof grade: IP67

Application: Aerial -hanged,Wall-mounting,Pole mounted

分享:

产品描述 联系我们

      48 core Dome Splice closure is a small size dome type fiber optic splice closure. It is suitable for fiber optic cable splicing and protection. It can be aerial hanged, wall-mounting and pole mounted application.The closure is made of high quality ABS.

      The closure and the foundation are  sealed with silicon gum material which fixes tightly by hoop. And the sealing of cables use Shrinkable tube.


Application:
* Aerial -hanged,
* Wall-mounting,
* Pole mounted

Specification:
Dimension (mm)
①140x300.5
Weight
1.9Kg
Cable diameter(mm)
08-020
Cable entry ports
3 round port + 1 oval port
Max. splice tray / Max. Capacity
4 (12core/tray) / 48core
sealing structure
Heat shrinkable sealing
Water proof grade
IP67
Packing size(cm)
61*34*80cm
Packing size weight
13.1Kg (8ctns/ctn)
