Model Number: GYFTS
Number of Conductors: ≥ 10
Fiber count: 24 48 core
Out sheath Diameter: 12mm
Minimum allowable TensileStrength (N): Short term 1500N ; Long term 600N
Strength number: Corrugated Steel
Minimum Bending Radius(MM): Short term 200D mm; Long term 10Dmm
Characteristics:

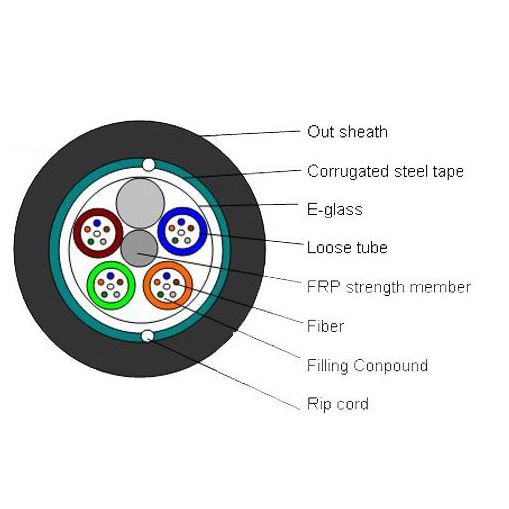

* FRP strength filler protect tube fiber steel tape armord.
* Good ultra violet radiation resistant property
* Good moisture-resistance.
Application:
* Adopted to Outdoor distribution.
* Suitable for aerial .pipeline laying method
* Long distance and local area network communication.
Technical Parameters:
| Cable Count | Outsheath Diameter | Weight | Minimumallowable Tensile Strength（N） | Minimumallowable Crush Load(N/100nm) | Minimum Bending Radius(MM) | StorageTemperature | |||
| (MM) | (kg) | Short term | Long term | Short term | Long term | Short term | Long term | (℃) | |
| 24 | 10.5 | 150 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 48 | 12.0 | 150 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
