Model Number: GYXTC8Y
Number of Conductors: ≥ 10
Fiber count: 2,4,6,8,10,12,24 core
Outer sheath diameter: 3.2*6.5mm
Minimum bending radius: Short term 20D mm ; Long term 10D mm
Minimum allowable tensile strength: Short term 1500N ; Long term 600N
Strength number: Corrugated Steel

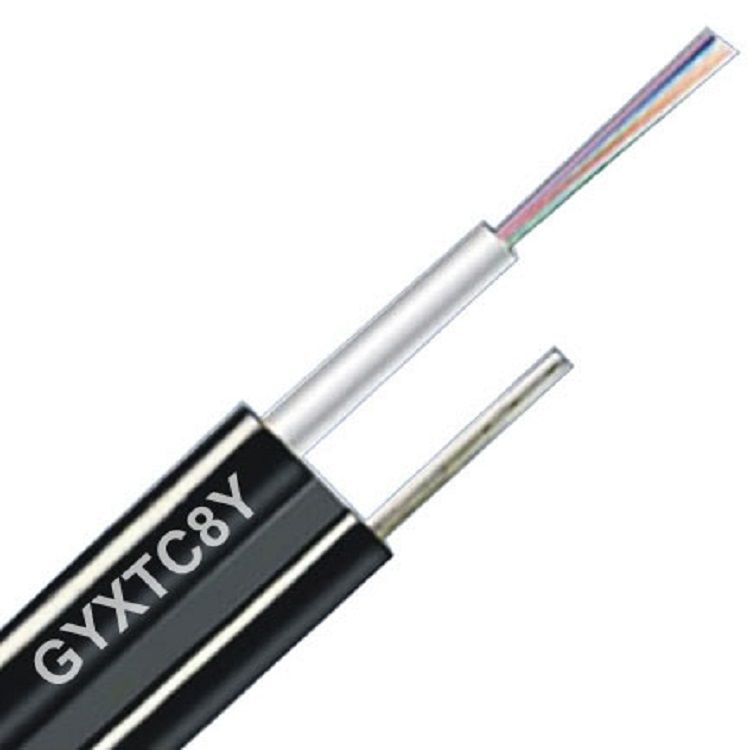

What is GYXTC8Y fiber cable?
GYXTC8Y is an ideal self-supporting outdoor cable,used for aerial installation. The cable core is composed of loose tubes each with up to 2-24 fibers.
What materials does GYXTC8Y fiber cable mainly consist of?
The mental strength member is made up of stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. High strength loose tube that is hydrolysis resistant. GYXTC8Y The optical fiber unit is positioned the center.Two prallel Fiber Reinforced (FRP)are placed at the two sides.Then the cable is completed with a black or color LSZH sheath.APL moisture barrier,finally extrusion PE sheathed cable.

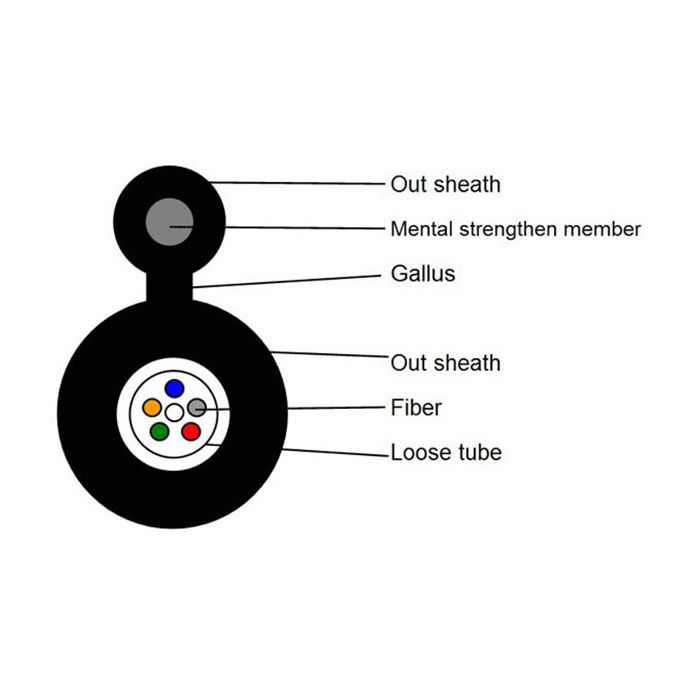

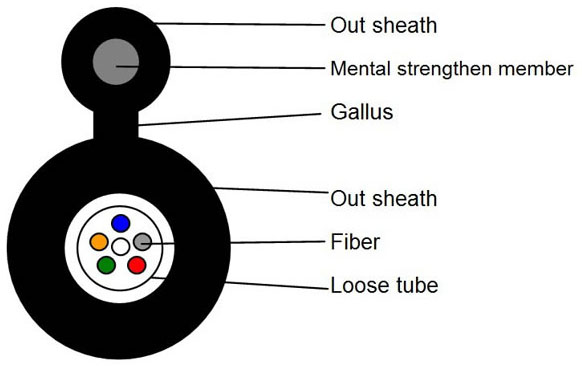

Cable strusure of Figure 8 self-supporting cable:
Characteristics:
1. Stainless steel or gaivanized steel self-supporting.
2. Excellet mechanical and environmental performance.
Method of installation:
1. Direct burial preferred, other methods of installation are also available
Operating temperature range: -40°C~+60°C
| Cable Count | Outsheath Diameter | Weight | Minimumallowable Tensile Strength(N) | Minimumallowable Crush Load(N/100nm) | Minimum Bending Radius(MM) | Storage Temperature | |||
| (MM) | (kg) | Short term | Long term | Short term | Long term | Short term | Long term | (°C) | |
| 12 | 3.2*6.5 | 54 | 1500 | 600 | 1500 | 600 | 20D | 10D | -40+60 |
Application:
1. Adopted to Outdoor distribution.
2. Suitable for aerial duct and buried method.
3. Long distance and local area network communication.
