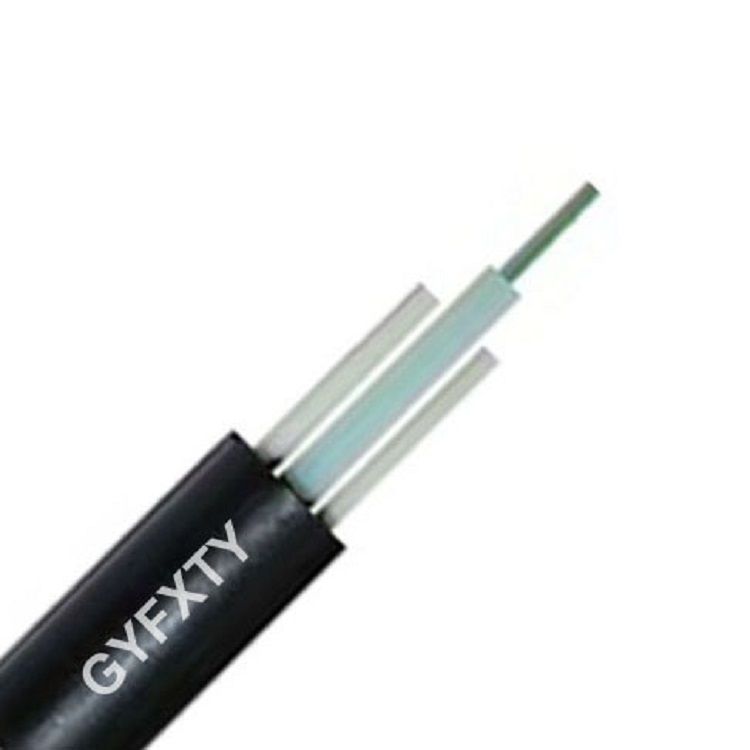

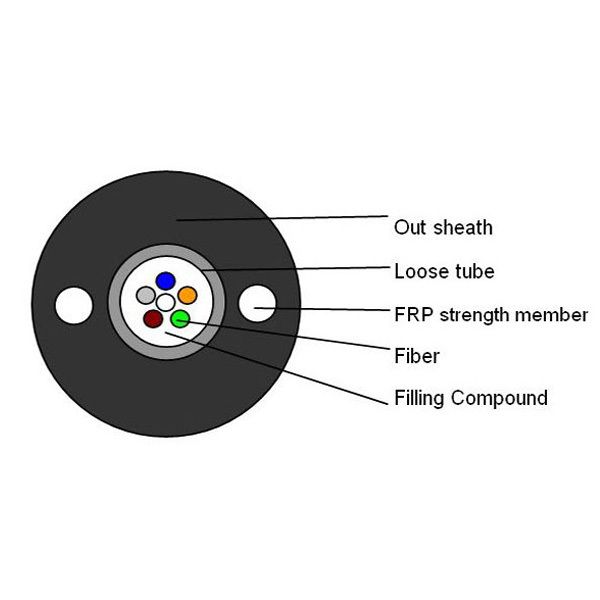

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of water blocking system. Two parallel FRP are placed at the two sides. The cable is completed with a polyethylene (PE) sheath.
Characteristics
1. Good mechanical and temperature performance.
2. High strength loose tube that is hydrolysis resistant.
3. Special tube filling compound ensure a critical protection of fiber.
4. Crush resistance and flexibility.
5. FRP ensure tensile strength.
6. Small diameter, light weight and friendly installation.
Application
1. All dielectric,no metal element, suitable for high electromagnetism environment.
2. Non-metal strength has an excellent anti-electromagnet ability.
3. Central FRP rod is non-metal strength member.
4. Filler protect loose tuber fiber.
5. Fiber counl: 1-12.
Remark: those are high electromagnetic environment as sample
| Cable Count | Outsheath Diameter | Weight | Minimumallowable Tensile Strength(N) | Minimumallowable Crush Load(N/100nm) | Minimum Bending Radius(MM) | Storage Temperature | |||
| (MM) | (kg) | Short term | Long term | Short term | Long term | Short term | Long term | (℃) | |
| 2~12 | 7.2 | 45 | 1200 | 500 | 1000 | 300 | 20D | 10D | -40+60 |
Packing Information
| Model No. | OD(mm) | Km/Reel | N.W./Reel(kg) | Reel Size(kg) | Weight for Package by Drum (kg) | Weight for Package by Polywood (kg) |
| GYFXTY | 7.2 | 1 | 72 | 55*75 | 103 | 100 |
| 2 | 144 | 55*75 | 175 | 172 | ||
| 3 | 216 | 55*100 | 276 | 260 | ||
| 4 | 290 | 55*110 | 352 | 340 | ||
| 5 | 360 | 55*120 | 430 | 420 |
Ordering Choice
1. Sheath color can be Black or customized
2. Fiber type can be SM or OM1,OM2,OM3,OM4
3. Fiber< (Loose tube) color can be Blue,Orange,Green,Brown,Grey,White,Red,Black,Yellow, Pink,Purple and Aqua
