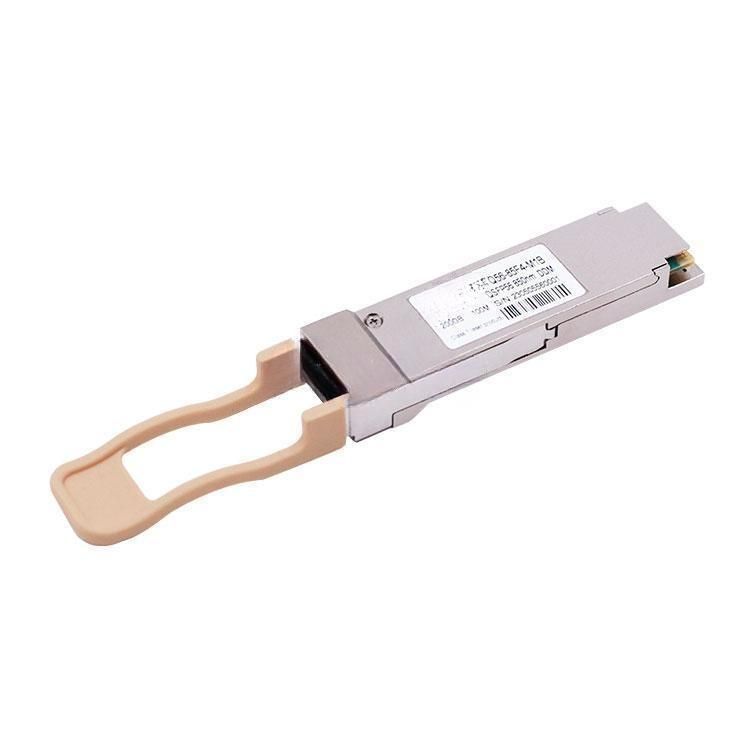

200G 100M QSFP56 Multi-mode Optical Transceiver

Product Features

* Hot-pluggable QSFP form factor

* Compliant to CMIS V4.0

* Case temperature range of 0℃to +70℃

* Maximum link length of 100m on OM4 fiber with KP4 FEC

* +3.3V single power supply

* Power dissipation < 6W l Operating case temp

* Commercial: 0°C to +70 °C

* MPO-12 APC connector

* RoHS compliant

Applications

* 200GBASE-SR4 Ethernet

Ordering Information

Note:

1. OM4 fiber, 70m for OM3 fiber

2. Case Temperature after assembling

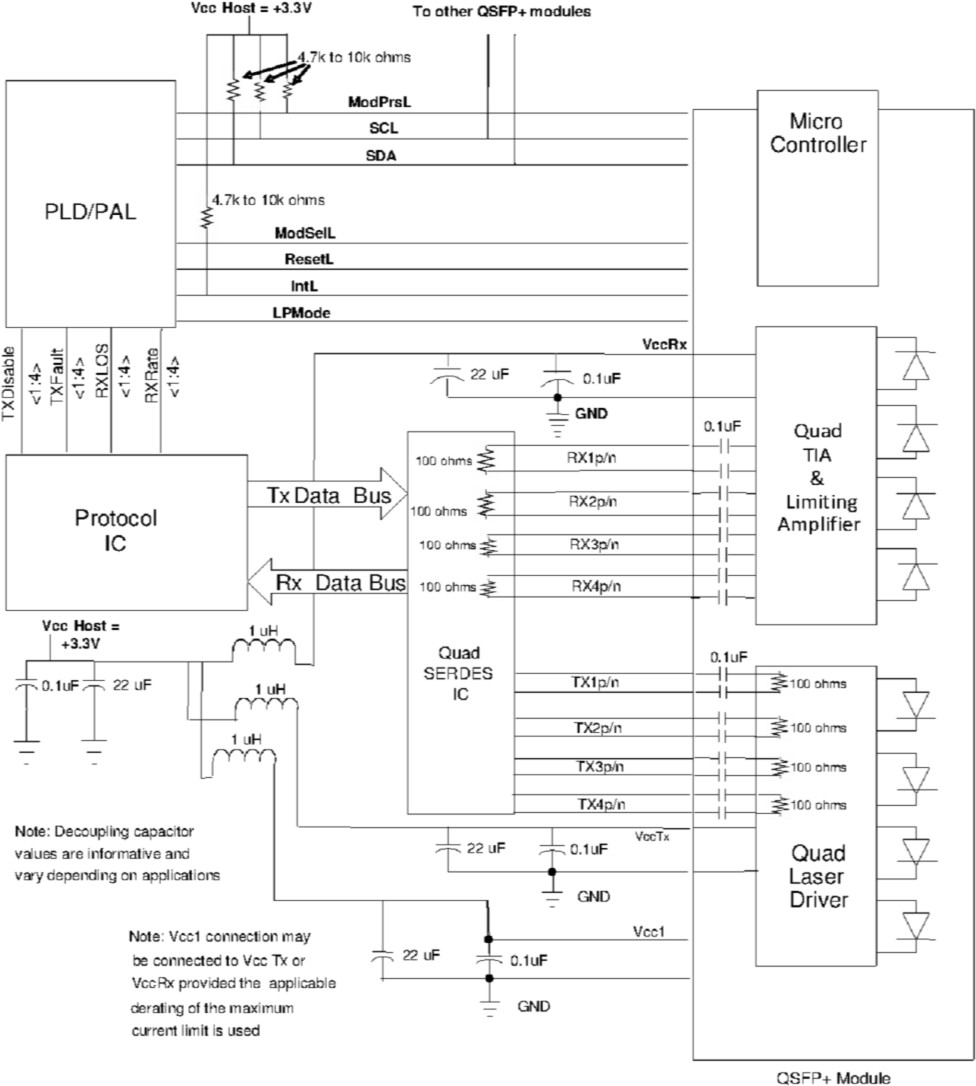

Recommended Interface Circuit

Pin arrangement

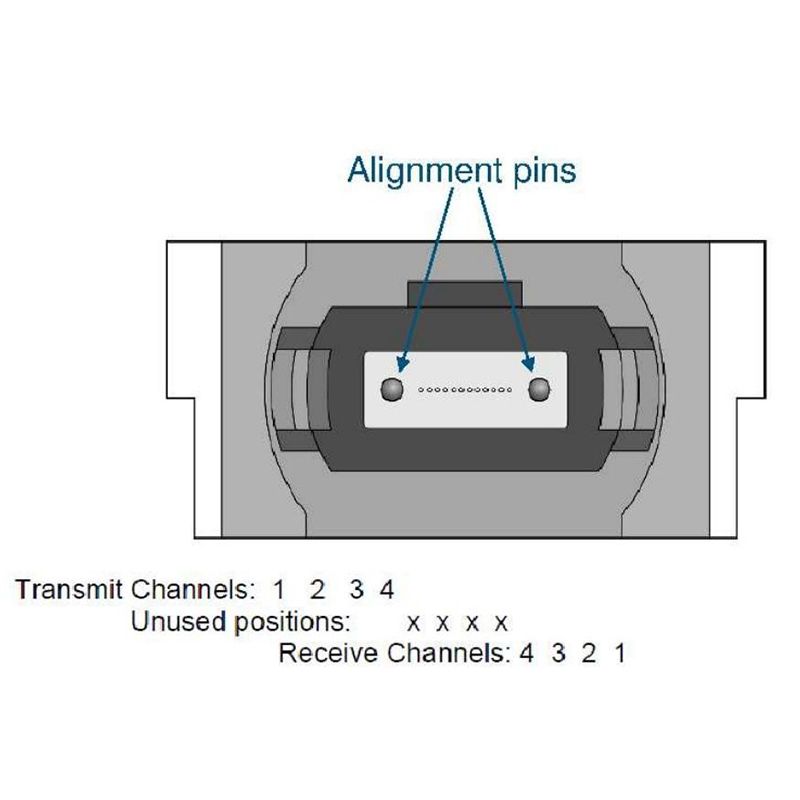

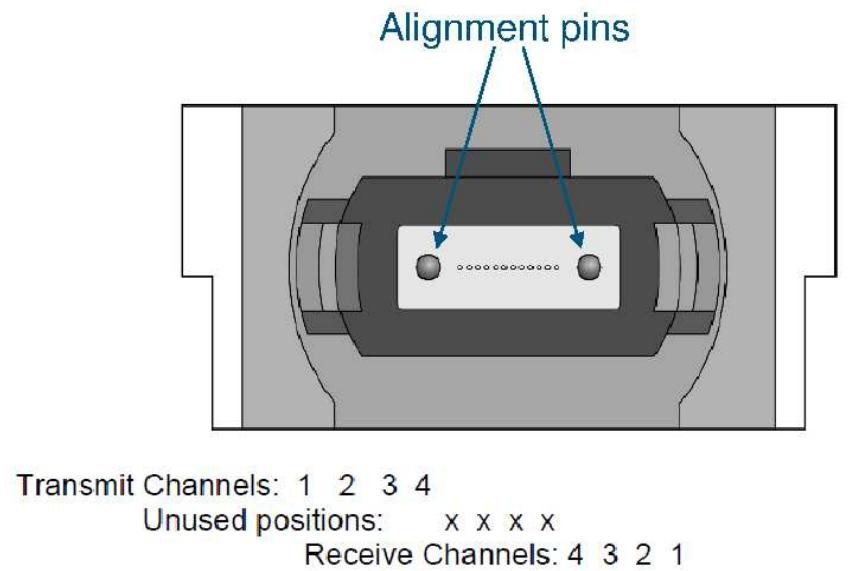

Opticalinterface arrangement

The optical port is a male MPO connector receptacle, with fiber lane assignments

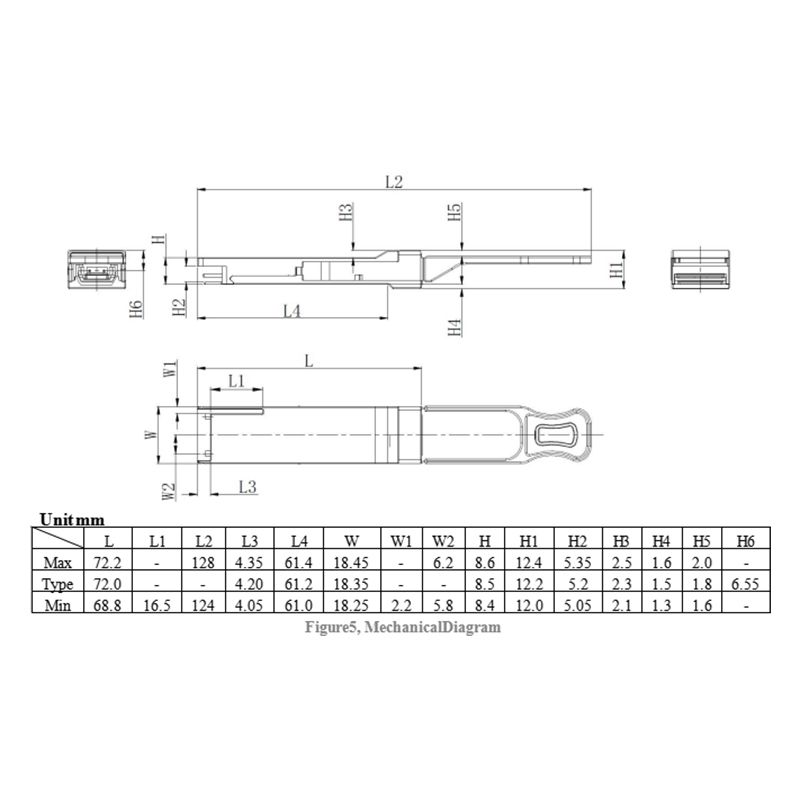

Mechanical Dimension
