Outdoor Waterproof Wall Mounted 16 Cores Optical Fiber Terminal Box Supplier

FAT-16B-I fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features

* Water-proof design with IP-66 Protection level.

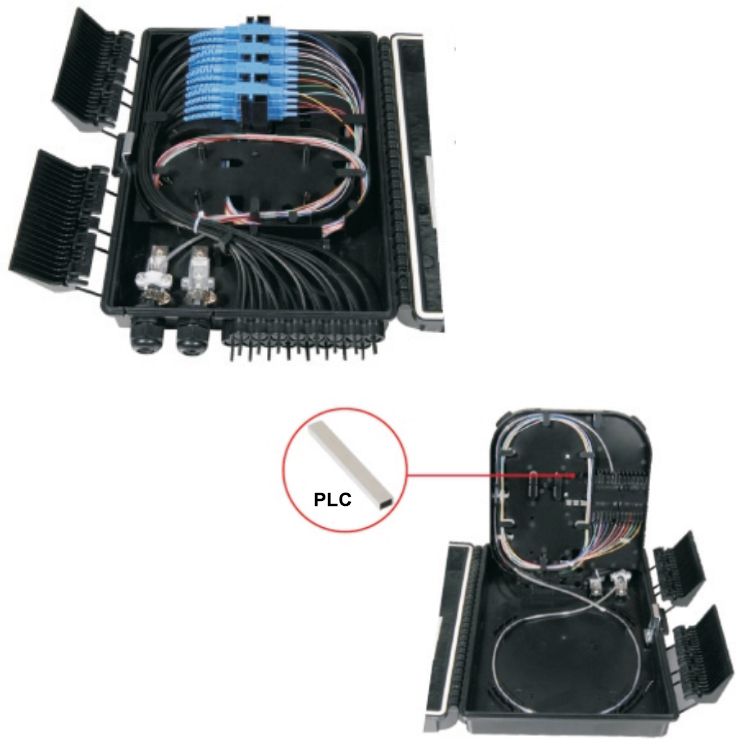

 *  Integrated with splice cassette and cable management rods.

 *  Manage fibers in a reasonable fiber radius condition.

 *  Easy to maintain and extend the capacity. Fiber bend radius control more than 40mm.

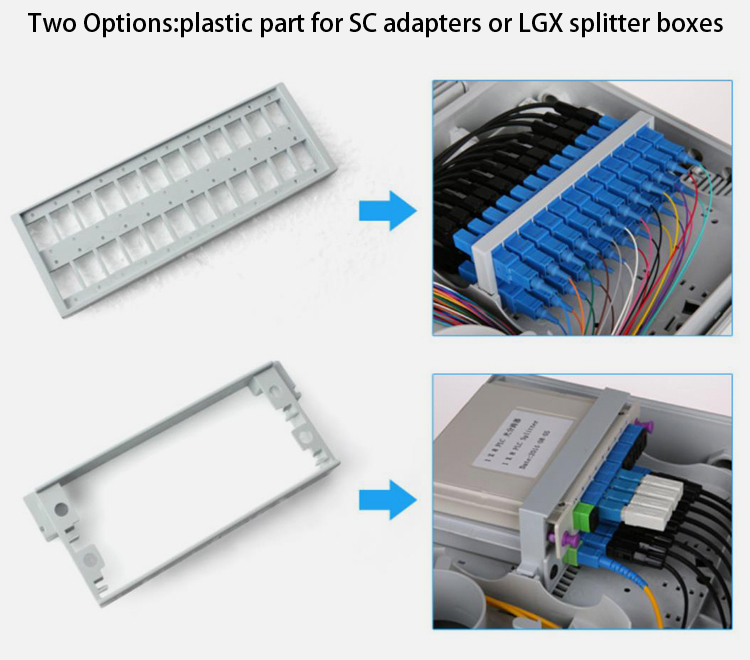

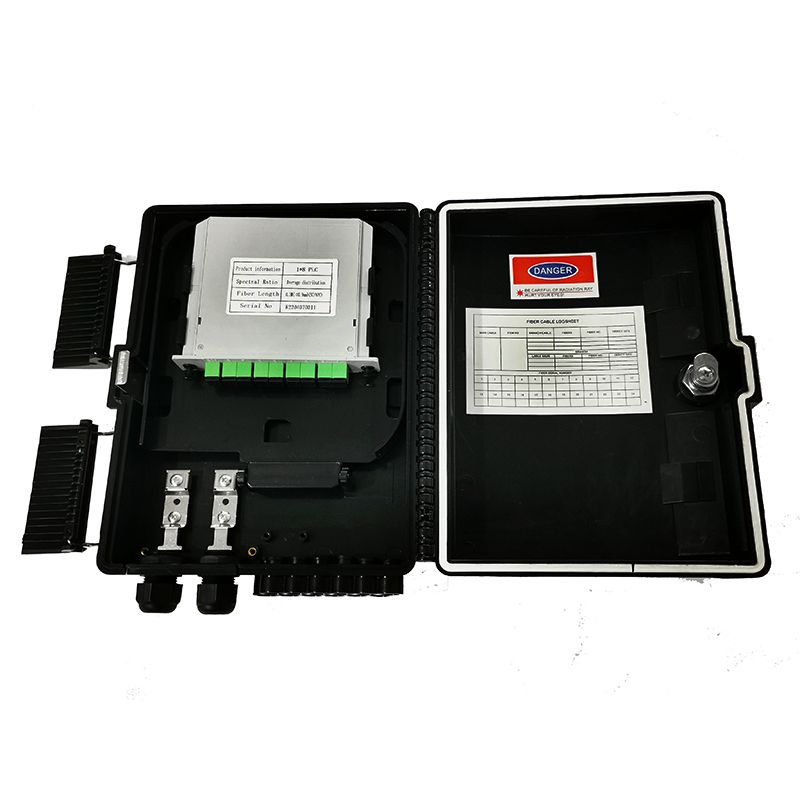

 *  Suitable for the fusion splice or mechanical splice. 2 pcs of 1*8 Splitter can be installed as an option.
 *  Efficient cable management.

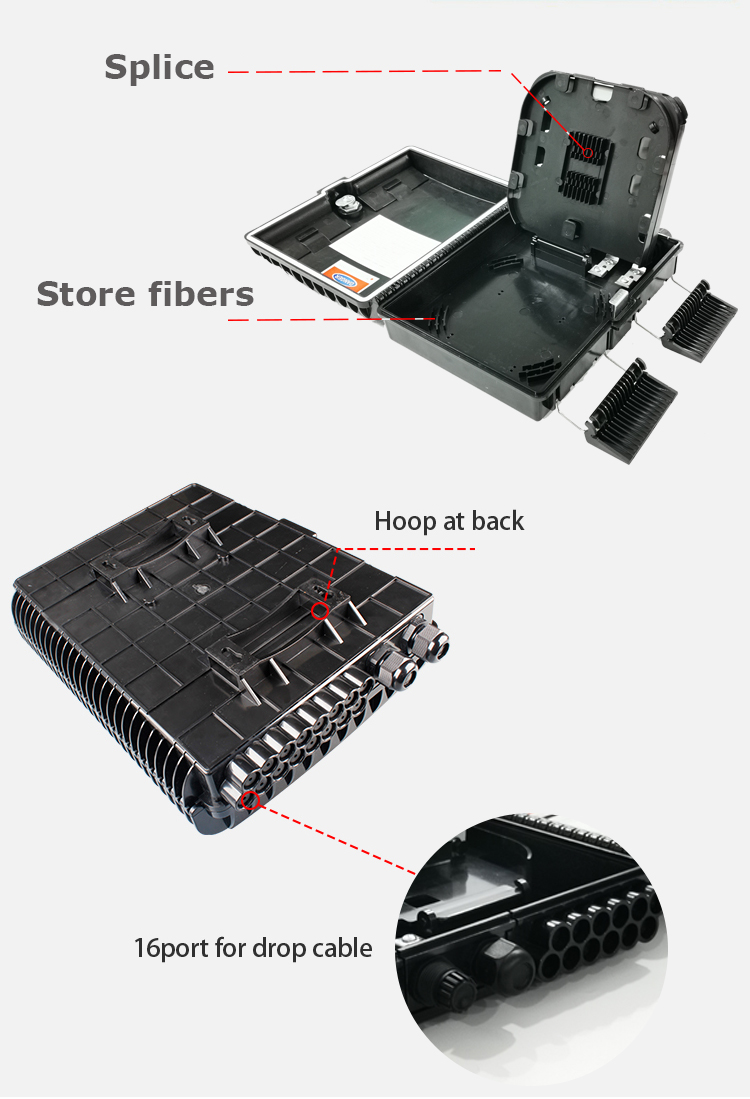

 *  16 ports cable entrance for drop cable.

Outdoor Waterproof Wall Mounted 16 Cores Optical Fiber Terminal Box

item	value
Model Number	WT-FAT-16B-1
Type	FTTx Box
Place of Origin	China
	Guangdong
Brand Name	OEM
Use	ftth
Warranty Time	12 months
Adapter type	SC 16 Ports 、PLC 1x8(SC)
Material	PC+ABS
Color	Black
Size	29522085 mm
Weight	1.57kg
