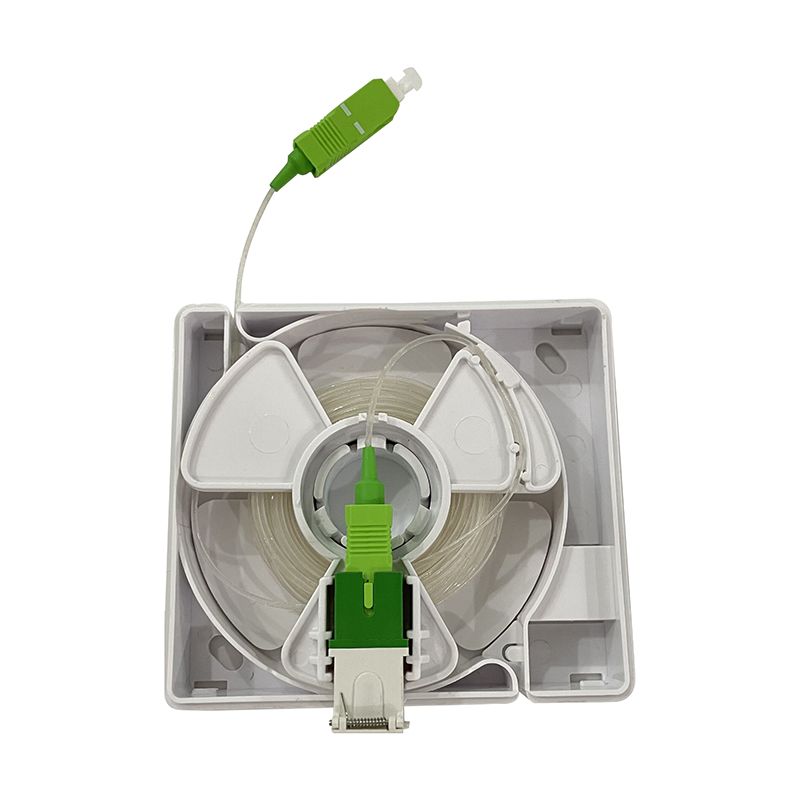

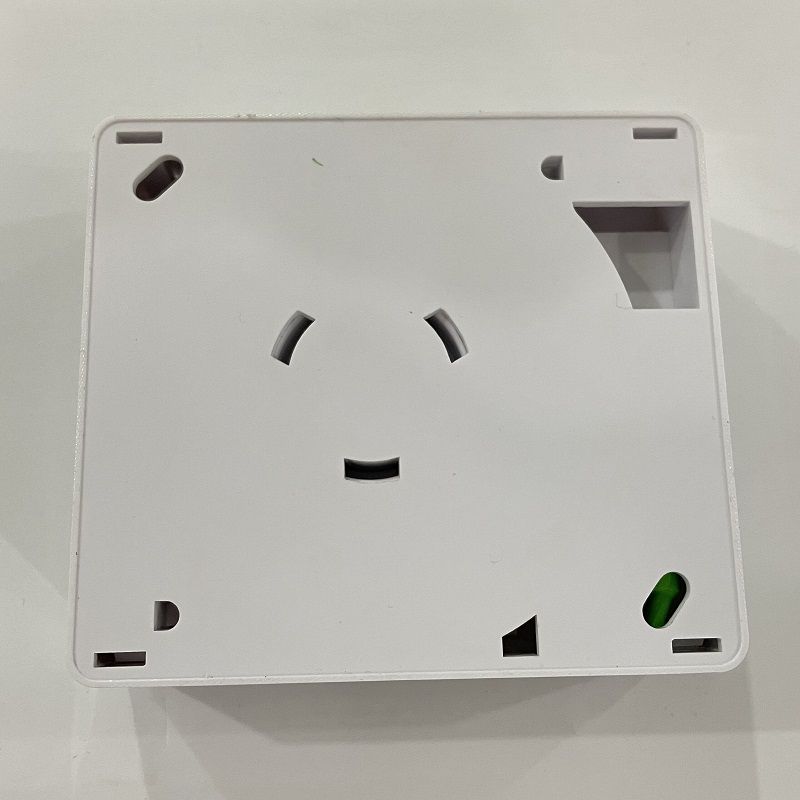

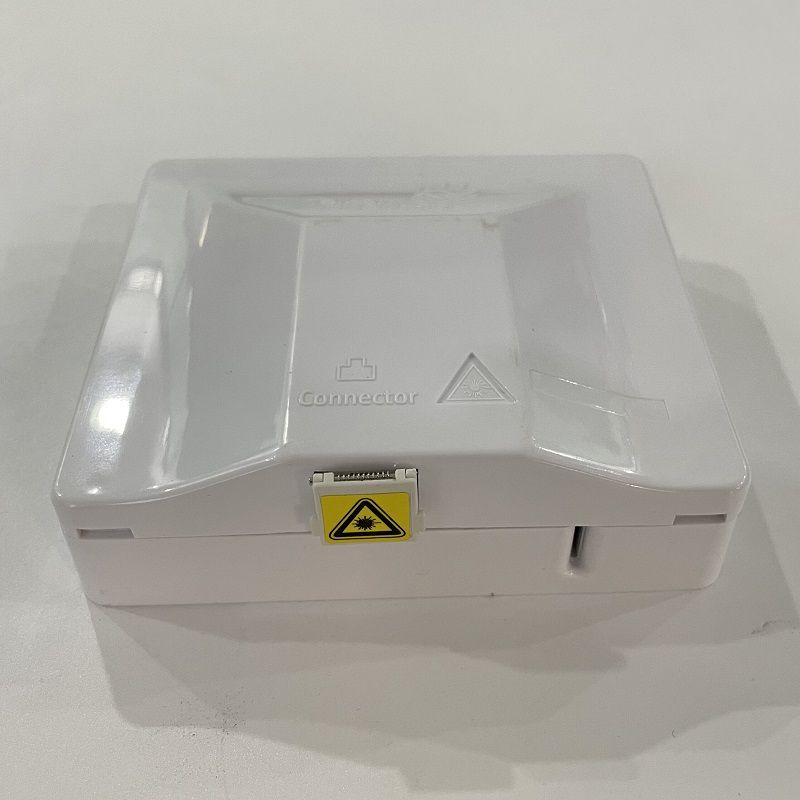

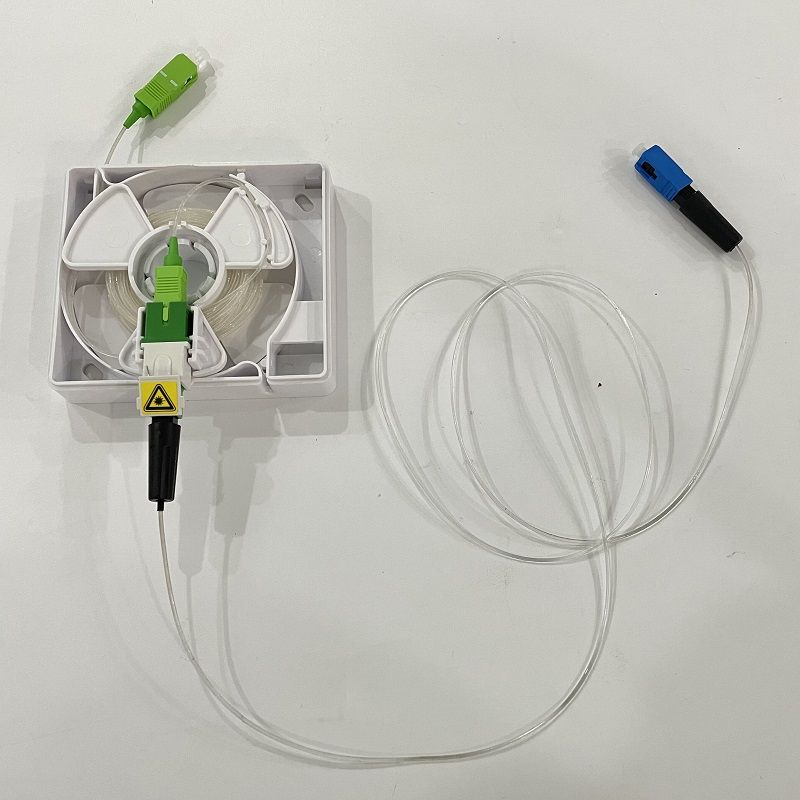

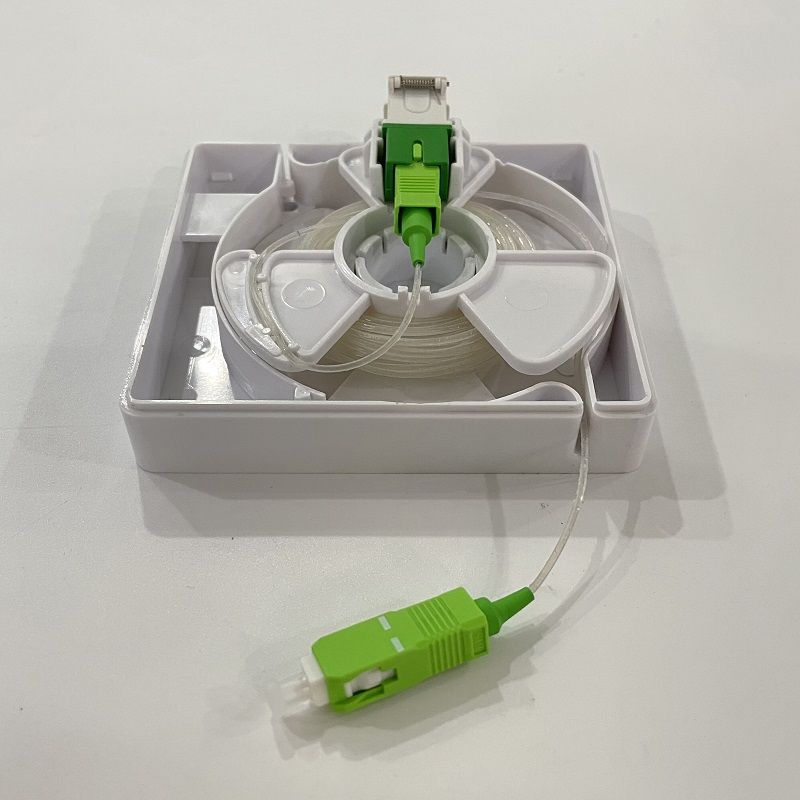

The equipment is used as a termination point for the drop cable to connect with ONU internal of apartment in FTTx communication network system. The fiber splicing can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Standards Comply
The production are designed, manufactured and tested according to the standards as follows:
IEC61300-2 Fiber optic interconnecting devices and passive components – Basic test and measurement procedures
IEC60068-2 Basic environmental testing procedures for electric and electronic products
Characteristics
1. Suitable for multi type module installation, application in the work area routing subsyste
2. The embedded surface box, installation, convenient disassembly with protective door, dust according to customer requirements can be printed LOGO
3. Made up of ABS+PC/ ABS high quality engineering plastic material with excellent intensity.
4. Application of optical fiber with SC, LC, DLC different environment bright dress, flush plate. A combination of all the
5. modules can be according to customer selection and configuratio
6. Can be opened and closed easily.
7. All modules are free welding m
8. Specifications
Application
Item | Value |
Operation temperature | -40 ºC～+60 ºC |
Installation temperature | -5 ºC～+40 ºC |
Storage temperature | -45ºC～+65 ºC |
Mechanical specifications
Item | Specifications | Remark |
External dimension(mm) | 93.0 X 83.0 X 29.0 |
|
Color | RAL 9010 |
|
Number of inlet ports | 1 |
|
Number of outlet ports | 1 |
|
Fiber cable diameter of the input port(mm) | 2*3 |
|
Capacity(Max) | 1 cores |
|
IP protection level | IP20 |
|
Flammability | UL94-V0 | can be customized according to requirements |
Neutral salt spray test (NSS) | 48h |
Item | Test Method | Specification | Remark |
Insertion loss(dB) | IEC61300-3-4-Method B | Mean≤0.1dB，Maximum≤0.3dB |
|
Return loss(dB) | IEC61300-3-6-Method 1 | APC≥60dB，UPC≥50dB |
|
Random connection | IEC61300-3-4 | Mean≤0.15dB，Maximum≤0.3dB |
|
Repeatability | IEC 61300-2-2
500 cycles | During the test the difference between the initial measurement and each of the measurements after one cycle must be less than 0.20 dB, and should be cleaned otherwise, with a limit of 25 cleanings |
|
