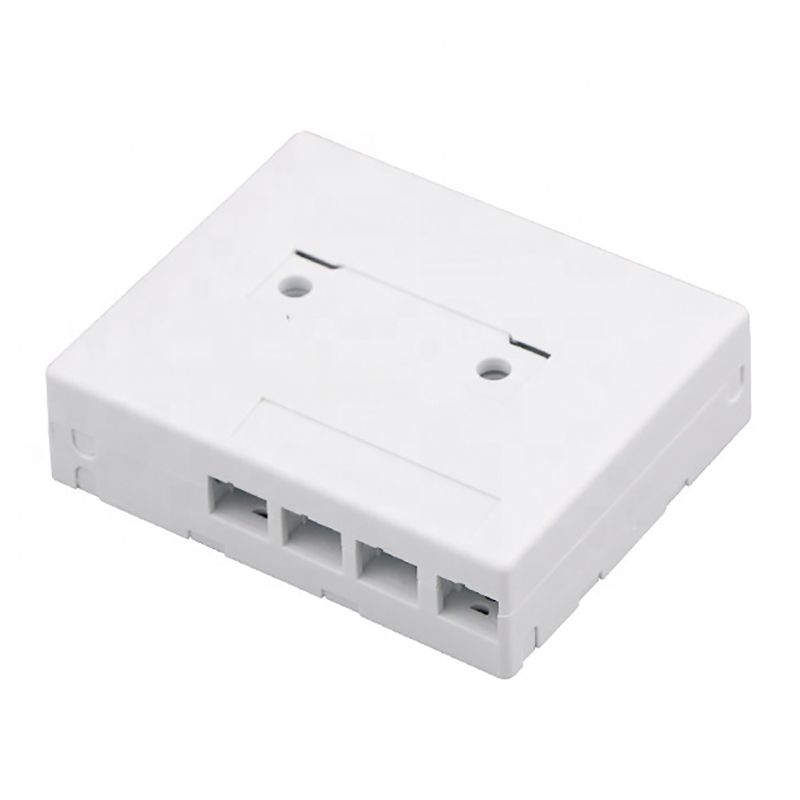

4 Core FTTH Terminal Box Fiber Optic connection Wall Plate

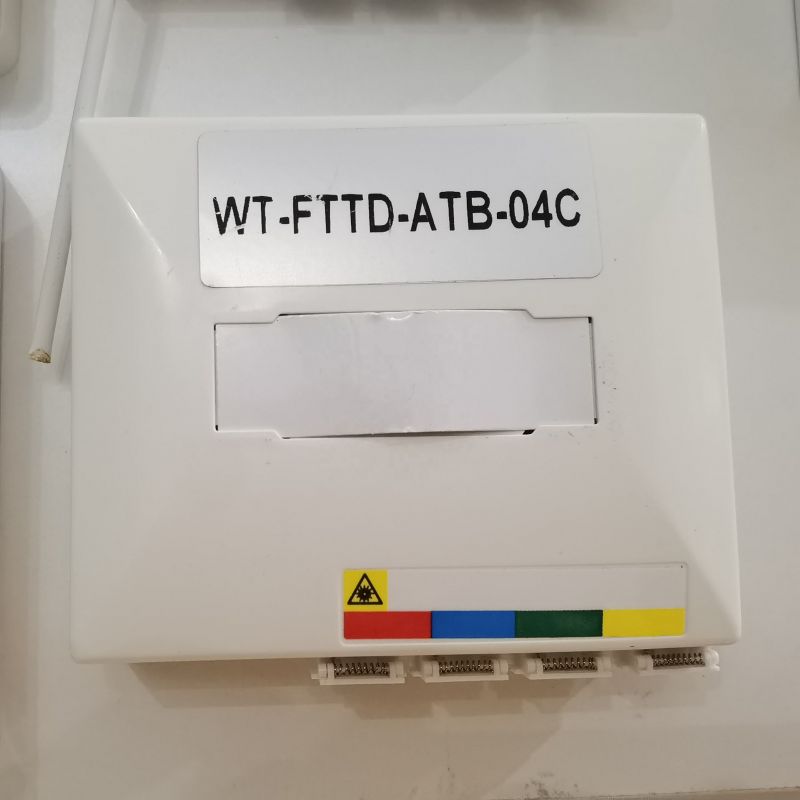

Model Number: WT-FTTD-ATB-04C

Dimensions: 100*80*30mm

Weight: 53g

Return loss: APC≥60dB UPC≥50dB PC≥40dB

Connector plug durability: >1000

capacity: 4

Adapter type: SC SX,LC DX

Material: Plastic

立即咨询下一个产品

产品描述联系我们

Introduction

     This miniature optical fiber socket panel  optical fiber terminal box is used  for fusion  splicing and splitting between indoor optical cables and pigtails. It uses SC or LC duplex type. Terminal boxes are used for wall or desktop applications. Made of plastic material for easy installation at  home or office . The outlet is designed to install  SC fiber jumper  adapters and work positioning subsystems.

Features

Material: The use of high-quality PC (flame retardant polycarbonate) material , has a fire performance.
Suitable for SC simplex adapters or LC duplex adapters, and multiple adapter connections for the work area cabling subsystem.
Embedded frame, easy to install4.With dust-proof device to prevent dust from entering
Equipped with an identification bar for easy number management and maintenance use

Application

The panels are used in home or work areas, and can fully meet the requirements of the fiber bend radius, protect the incoming and outgoing fibers and provide a safe core of protection. Appropriate radius of curvature allows a small amount of redundant fiber stock for FTTD (Fiber to the Desktop) system applications.

Connector attenuation (insert, swap, repeat)		≤0.3dB
Return loss		APC≥60dB UPC≥50dB PC≥40dB
Connector plug durability		>1000
Dimensions		1008030mm
Weight	53g
Adapter capacity		4
Import and export quantity		4/4
Adapter type		SC SX,LC DX
